|| Product Introduction
10-100g Packed Chocolates Checkweigher perform automated weight control checks to prevent under-filled and over-filled products from reaching consumers.Our Checkweigher System for Snack Packaging Line is ruggedly built and comply with the hygiene regulations typically required in the food manufacturing industry.

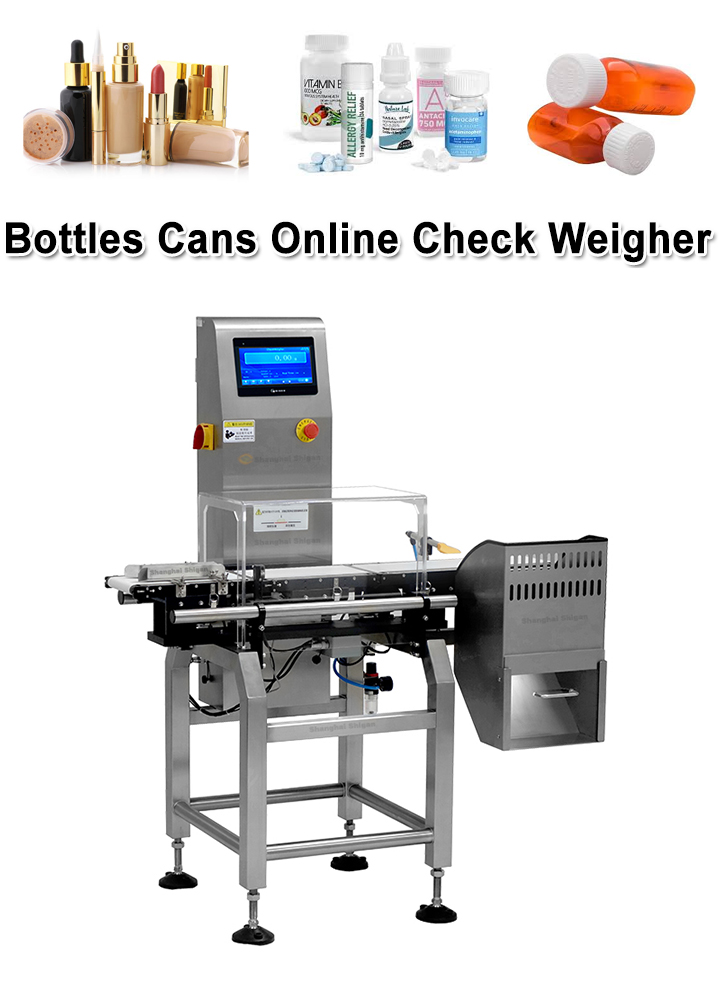

Checkweigher System

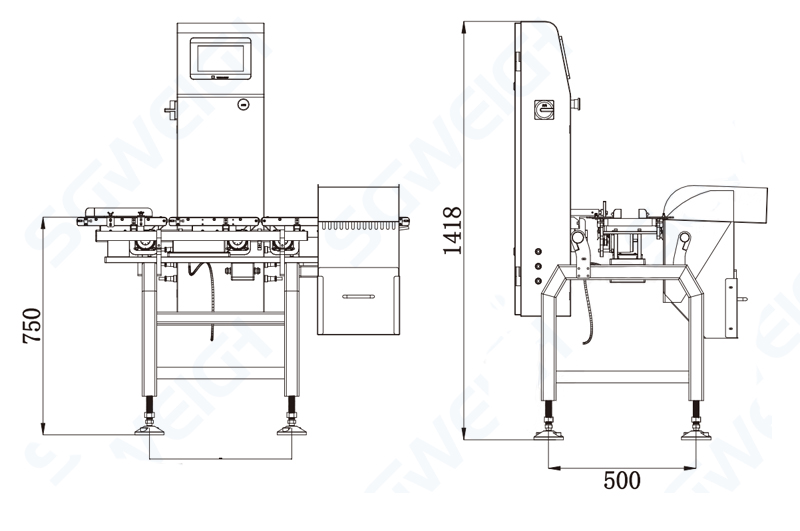

|| Tech Specifications
Model:SG-150
Weighing range:5-500g
Minimum scale:0.1g
Checking speed :Max 120pcs/Min
Belt speed:0-65m/min
Box size limit:Length:200mm Width:150mm Height:3-200mm
Operation Way:Touch operation
Conveying direction:Facing the touch screen from left to right
Rejection method:Push Rejection
Belt height from the ground:750±50mm（can be customized）
Machine material:Stainless steel（SUS304）
Power supply:220V50/60HZ
Power:About300W
Remark:The properties of the tested products and the use environment are different,and the detection speed and accuracy are also different.The actual test is used as the standard.
|| Main Features
1. Simple operation: Touch screen operation, Chinese and English interface.
2. Accurate: High-precision sensor, high detection accuracy, fast detection speed.
3. Real-time: Graphical display of sorting results statistical distribution, real-time grasp of sorting dynamics.
4. Memory: 100 product sorting parameters can be preset, and different products can be quickly switched.
5. Self-learning: high-speed and high-precision digital filtering algorithm, data filtering parameters, automatic learning.
6. Rejection: A variety of rejection methods are available, which can reject overweight or insufficient products.

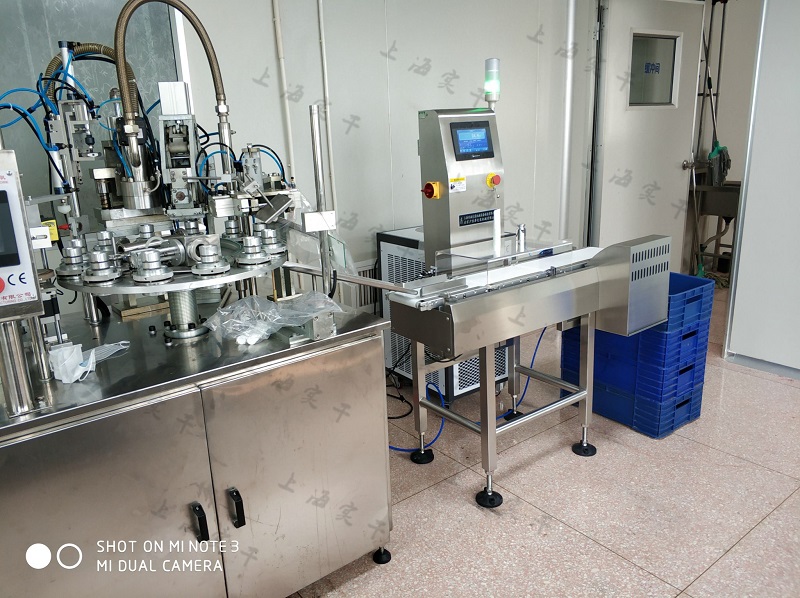

|| Application
|| Our Customers
|| Our Exhibitions
|| Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
