|| Product Introduction

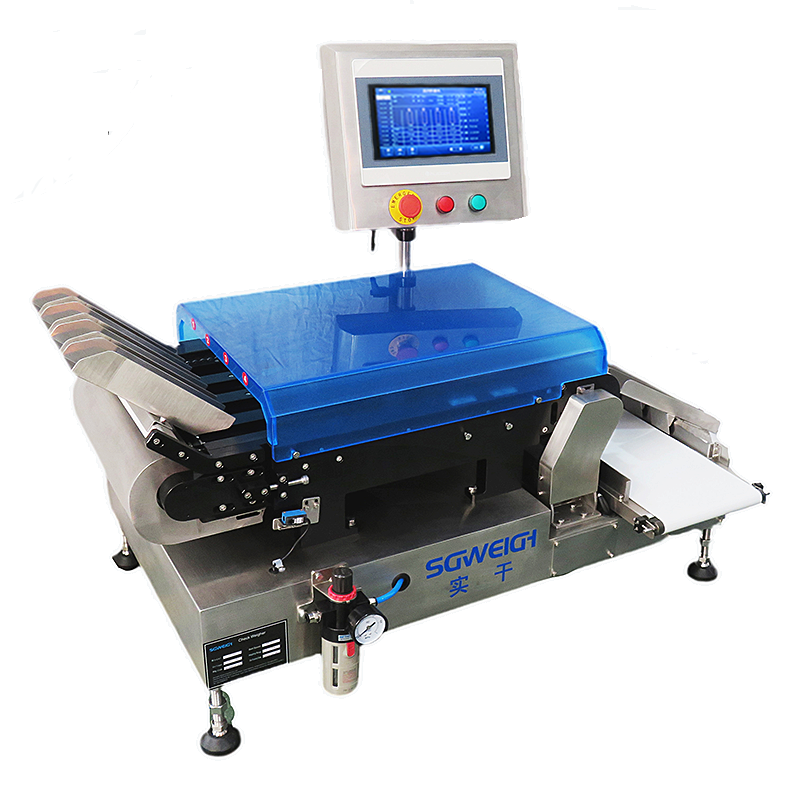

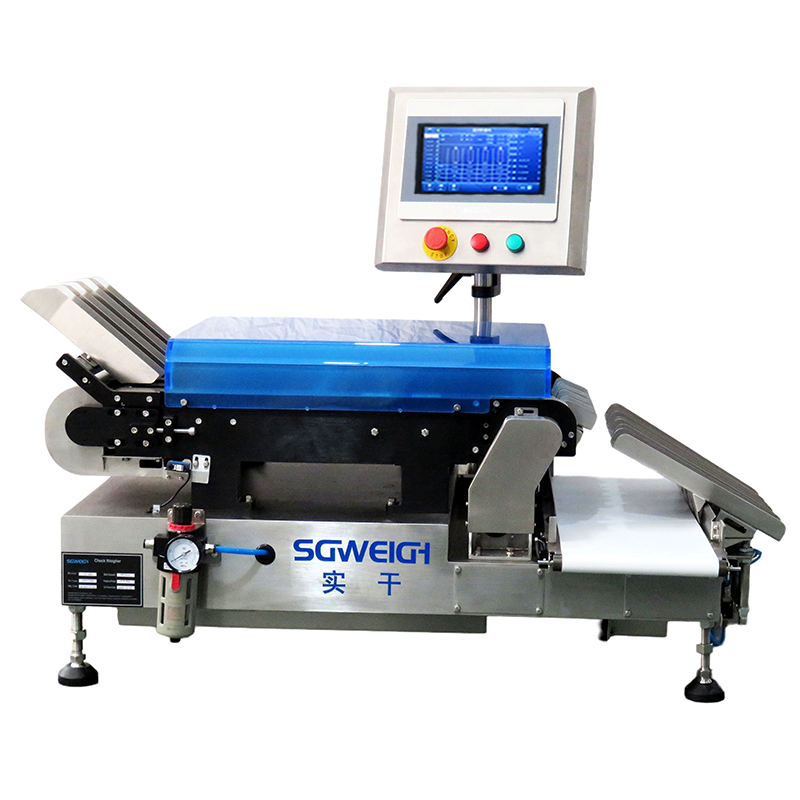

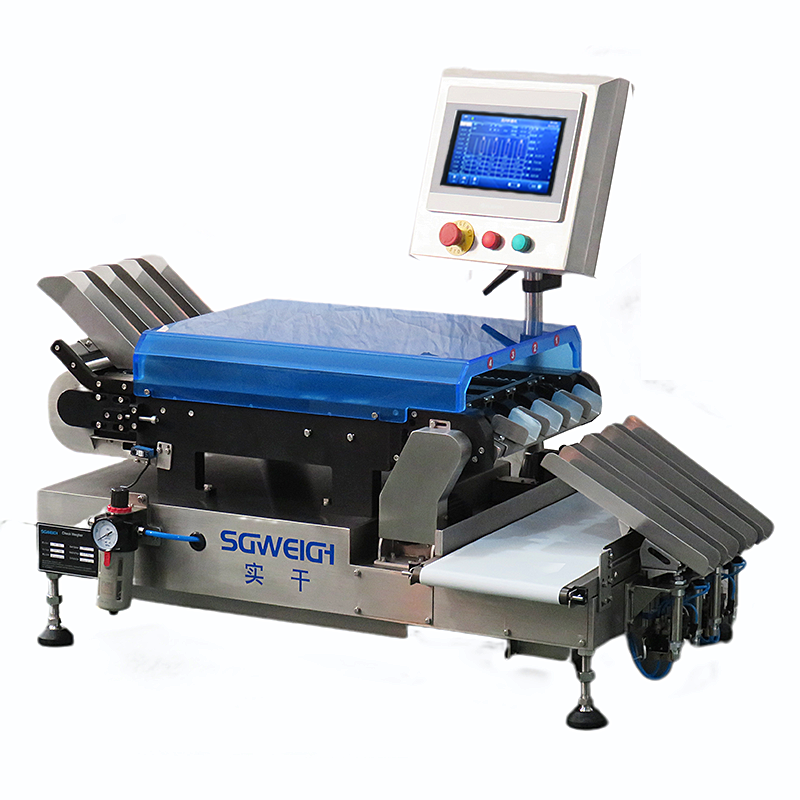

The 4-Lane Stick Checkweigher is an advanced multi-lane weighing system designed for precise and efficient weight control of stick packs in high-speed production lines.3 in 1 Coffee Online Checkweigher enables simultaneous inspection of up to four lanes, ensuring 100% product accuracy while maintaining high throughput.
|| Tech Specifications
Model:SG-4X
Weighing Range:1-50g
Accuracy: 0.01 gram (depending on the product)
Sorting Speed:40-60pcs/min (one lane)
Conveying Speed:20-100m/min
Operation Method:Touch operation
Conveying Direction:Can be placed according to the actual situation on site
Elimination Method:Lifting Rejection
Belt Height From The Ground:450±50mm (can be customized according to customer requirements)
Machine Structure:Stainless steel (SUS304)
Power Supply:220V 50-60HZ
Power:About400W
|| Main Features

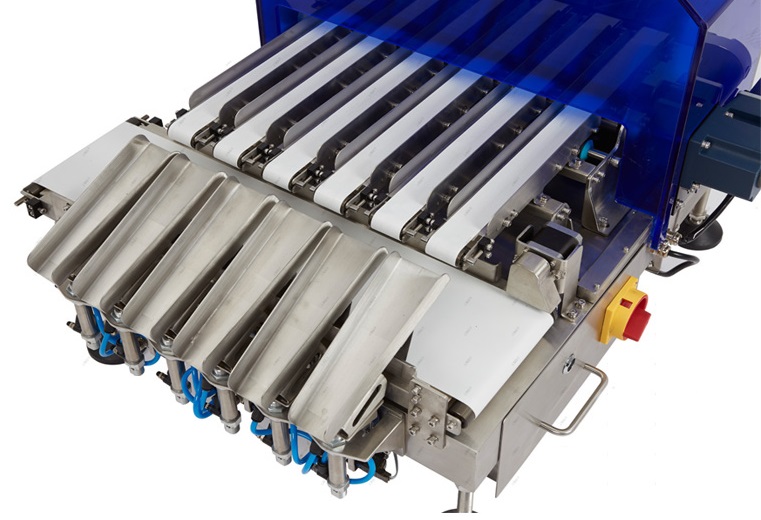

◆Multi-Lane Design
4 independent weighing channels for simultaneous inspection of stick packs, ideal for high-speed packaging lines.
◆High Accuracy
Equipped with advanced load cells and dynamic weighing technology to guarantee precise measurements, even at high throughput speeds.
◆Compact Structure
Space-saving design easily integrates with stick pack filling and sealing machines.
◆User-Friendly Interface
10-inch touch screen display with intuitive controls, real-time weight monitoring, and statistical analysis functions.

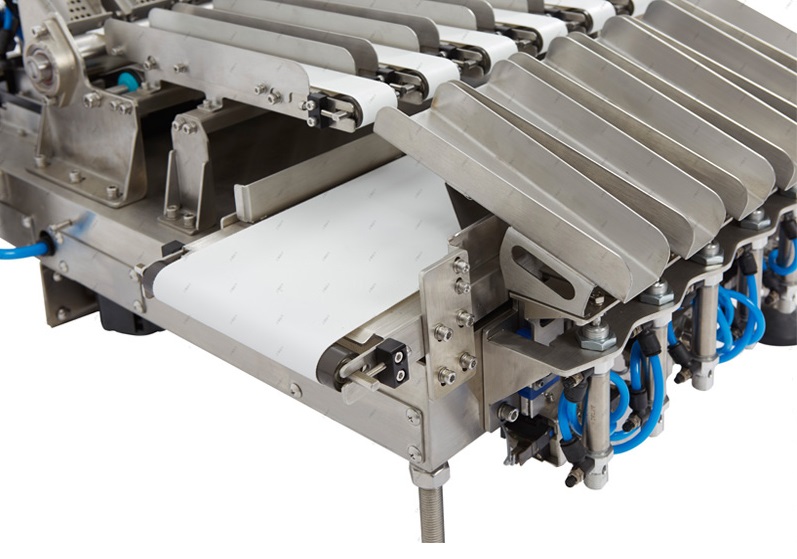

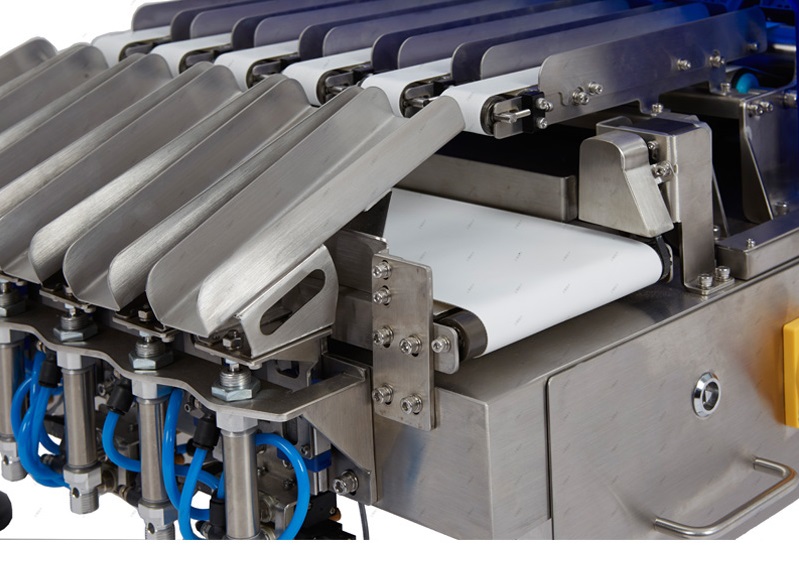

◆Auto Rejection System
Each lane is equipped with an individual rejection mechanism to automatically remove out-of-tolerance products.
◆Data Management
Supports weight data storage, USB export, and network connectivity for traceability and quality management.
◆Hygienic Design
Stainless steel construction meets GMP and food-grade standards, ensuring easy cleaning and maintenance.
|| Application
|| Our Customers
|| Our Exhibitions
|| Packaging & Delivery
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
