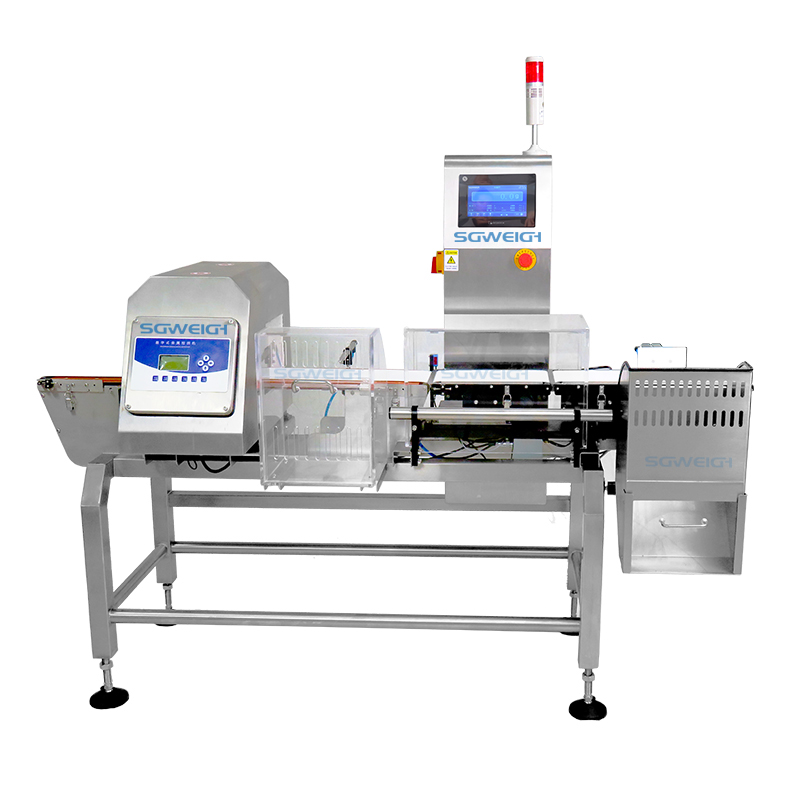

Product Introduction
Automatic Combination Metal Detector and Checkweigher Systems with universal reject conveyor provides unrivalled detection performance and saves space.This combination machine is able to check product weight and metal impurities in one production line before final packing, and is widely used in different fields such as food, medicine, chemical, textile, clothing, toys, rubber products and more.
Tech Specifications

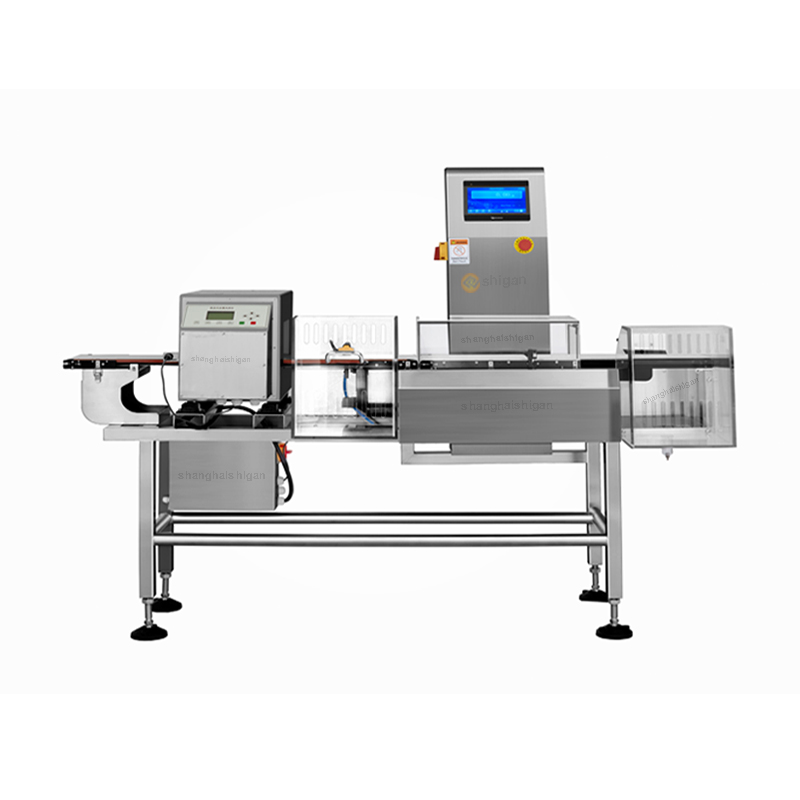

Model: SG-JS150
Measuring method: electromagnetic induction / digital load cell
Size: 330×150mm
Accuracy: FE0.8-1.5mm,SUS1.2-2.5mm
Selection accuracy: ±0.1g
Weighing range: 5 grams – 900 grams
Passing height: 100-200m
Pass width: 280mm
Packaging length: ≤300mm
Display graduation value: 0.1g 0.2g 0.5g 1g
Number of sorting segments: 3 segments
Sorting ability: 60 times/min
Conveyor belt speed: 10-45 m/min
Ground height: 735mm—800mm
Working temperature: 0-40℃
Weight: about 160kg
Main Features
1.It has an ingenious structure, takes up less space, is easy to connect to the production line, has high detection sensitivity and is easy to operate. It can save production line space to the maximum extent and achieve more quality control.
2.Advanced technology, applying the latest multi-frequency detection technology, automatic material effect elimination technology, automatic balancing technology, and adaptive adjustment technology, bringing the equipment the simplest operation, the best environmental suitability and stability in the industry.
3.All stainless steel shock-absorbing structure design and manufacture, to ensure long-term stability and service life.
4.Can record detection parameters suitable for 100 different products, avoiding detection errors due to manual differences and avoiding downtime for product replacement.
Application
Our Company
Our Customers
Our Exhibitions
Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
