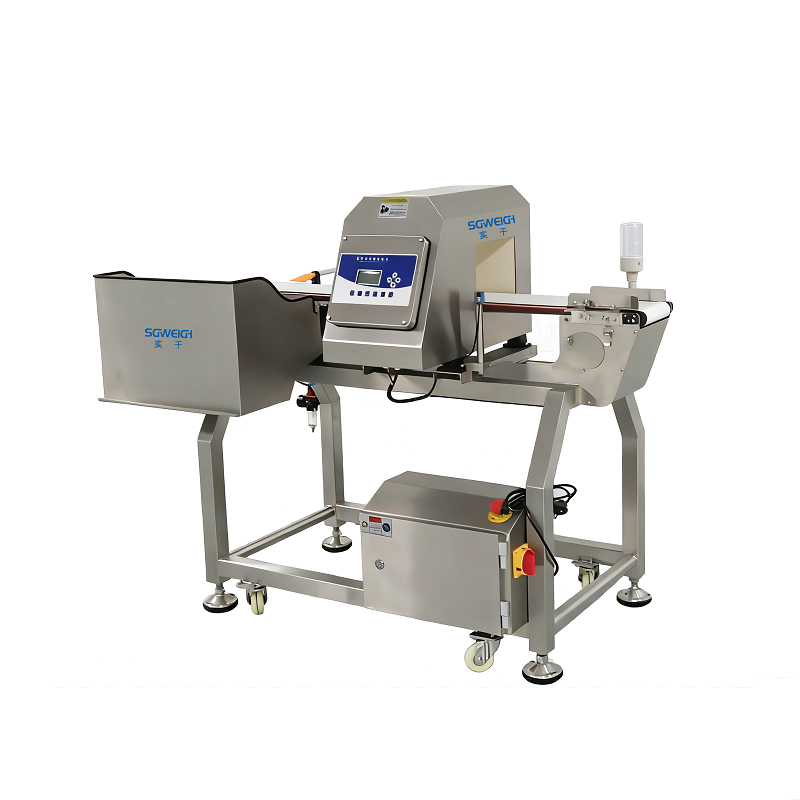

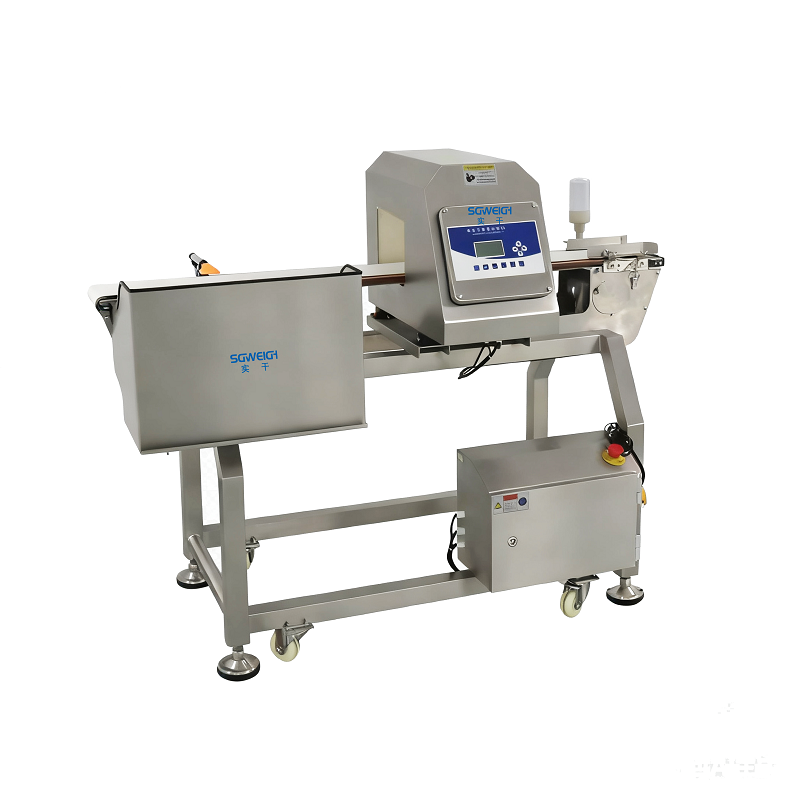

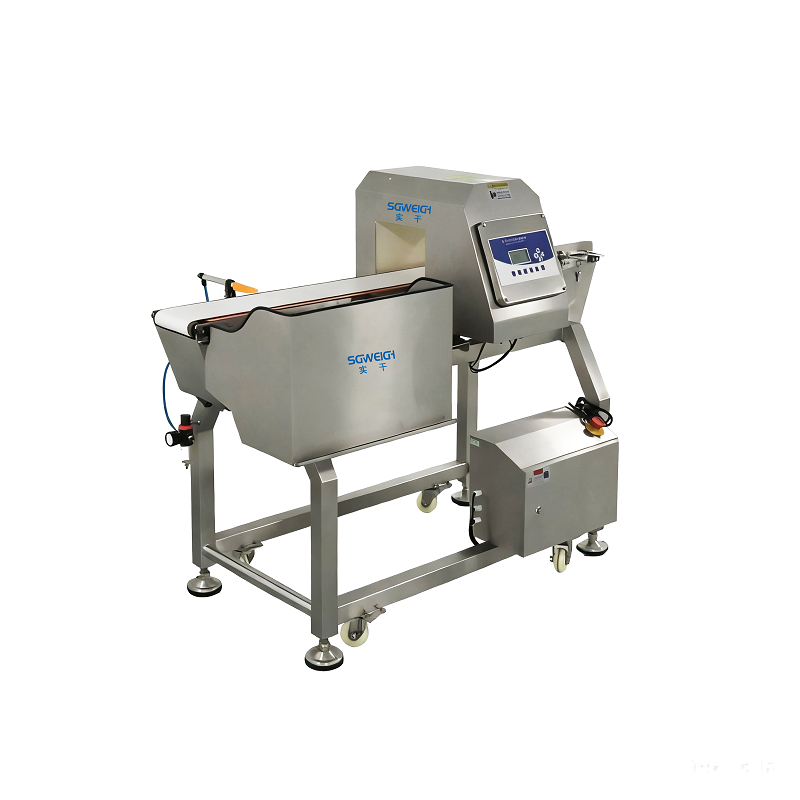

■ Product Overview
The Bagged Frozen Vegetable Conveyor Metal Detector is specifically designed for online detection of metal foreign objects in products such as quick-frozen vegetables, frozen corn, frozen peas, frozen carrot cubes, and frozen mixed vegetables. The equipment can operate stably in low-temperature, high-humidity, and condensation environments, effectively detecting and rejecting products containing Fe, Non-Fe, and SUS, ensuring the safety and compliance of frozen foods before and after production and packaging.
The Metal Detector System for Food Processing Line can seamlessly integrate with frozen vegetable conveyor lines, quick-freezing lines, automatic weighing systems, and packaging machines to meet the needs of different production volumes and packaging formats. It is widely used in frozen food factories, vegetable processing enterprises, and export-oriented food production lines.
■ Tech Specifications
Type:SG-M400
Detection sensitivity: in empty state
H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm
Effective detection hole width: 150-1000mm customized according to requirements
Effective detection hole height: 80-500mm customized according to requirements
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED fast key input/Touchscreen
Machine weight: about 120kg
Power requirements: AC220V 50HZ
Power: 200W
Alarm mode: metal detection, alarm belt stop or automatic removal
■ Main Features
1. High sensitivity detection of ferrous, non-ferrous, and stainless steel foreign objects.
2. Adaptable to the low-temperature, high-humidity, and condensation-prone environment of frozen vegetable production.
3. Effectively suppresses the product effect of frozen foods, reducing the false rejection rate.
4. Food-grade stainless steel structure, corrosion-resistant and easy to clean.
5. Supports online automatic detection and rejection of defective products.
6. Compatible with frozen vegetable conveyor lines, quick-freezing lines, and packaging equipment.
■ Application
■ Customers
■ Exhibitions
■ Packaging & Delivery
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
