|| Product Introduction

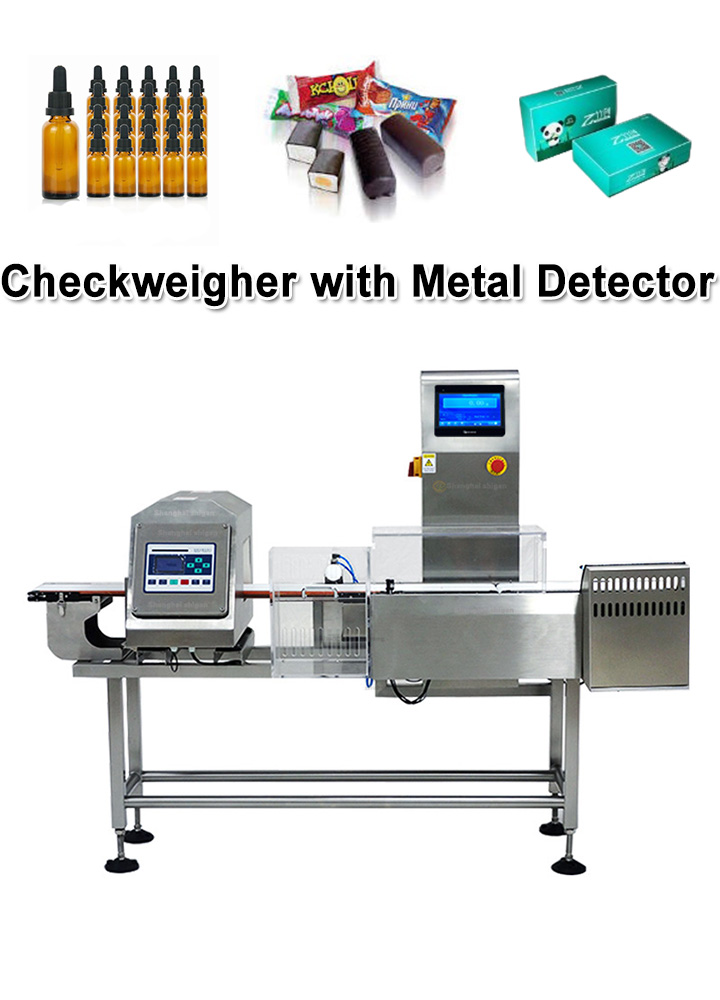

Combined Conveyor Belt Metal Detector and Checkweigher is an integrated system designed for quality control and food/pharma safety. It detects metal contaminants while simultaneously verifying product weight, all on a single conveyor line.
|| Tech Specifications
Model: SG-JS150
Measuring method: electromagnetic induction / digital load cell
Size: 330×150mm
Detection sensitivity:
H-100mm: Fe≥Φ0.8mm,SUS≥Φ1.2mm
H-120mm: Fe≥Φ0.8mm,SUS≥Φ1.8mm
H-150mm: Fe≥Φ1.2mm,SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.5mm,SUS≥Φ2.5mm
Selection accuracy: ±0.1g
Weighing range: 5 grams – 900 grams
Passing height: 100-200m
Pass width: 280mm
Packaging length: ≤300mm
Display graduation value: 0.1g 0.2g 0.5g 1g
Number of sorting segments: 3 segments
Sorting ability: 60 times/min
Conveyor belt speed: 10-45 m/min
Ground height: 735mm—800mm
Working temperature: 0-40℃
Weight: about 160kg
|| Main Features
1.Dual Inspection in One Unit
Detects ferrous, non-ferrous, and stainless-steel contaminants while weighing each product.
2.Space Saving
One machine instead of two separate units reduces footprint.
3.Reject System
Products with incorrect weight or metal contamination are auomatically rejected.
4.Hygienic Design
Stainless steel frame, easy-to-clean conveyor, suitable for food, pharma, cosmetics, and other industries.
5.High Accuracy
±0.1–1 g weight accuracy (depending on product & speed).
6.Flexible Integration
Can be placed after packaging machines, cartoning machine or filling lines.
|| Application
|| Our Company
|| Our Customers
|| Our Exhibitions
|| Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
