Product Introduction

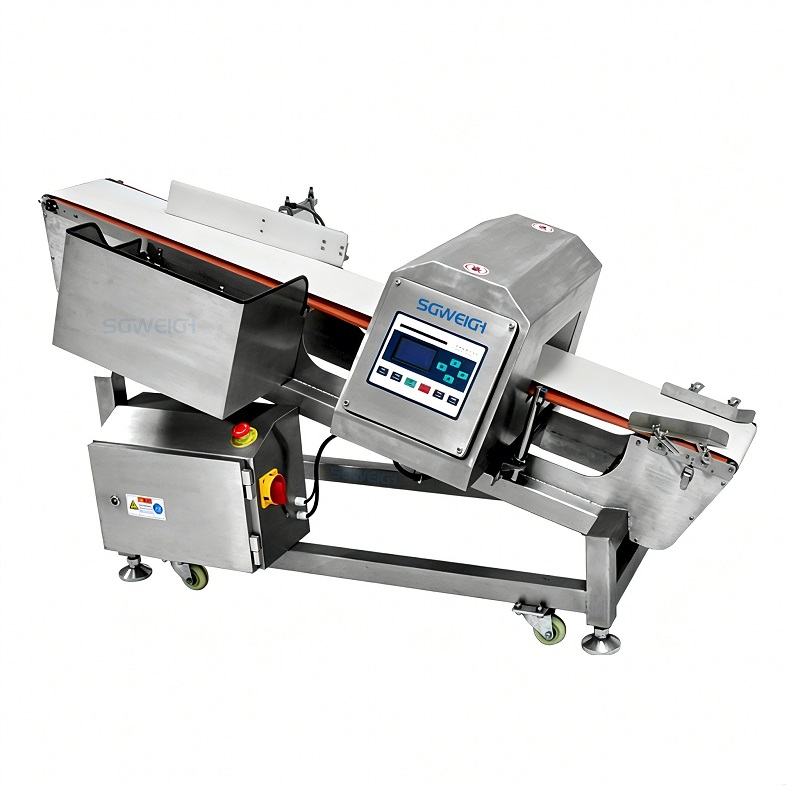

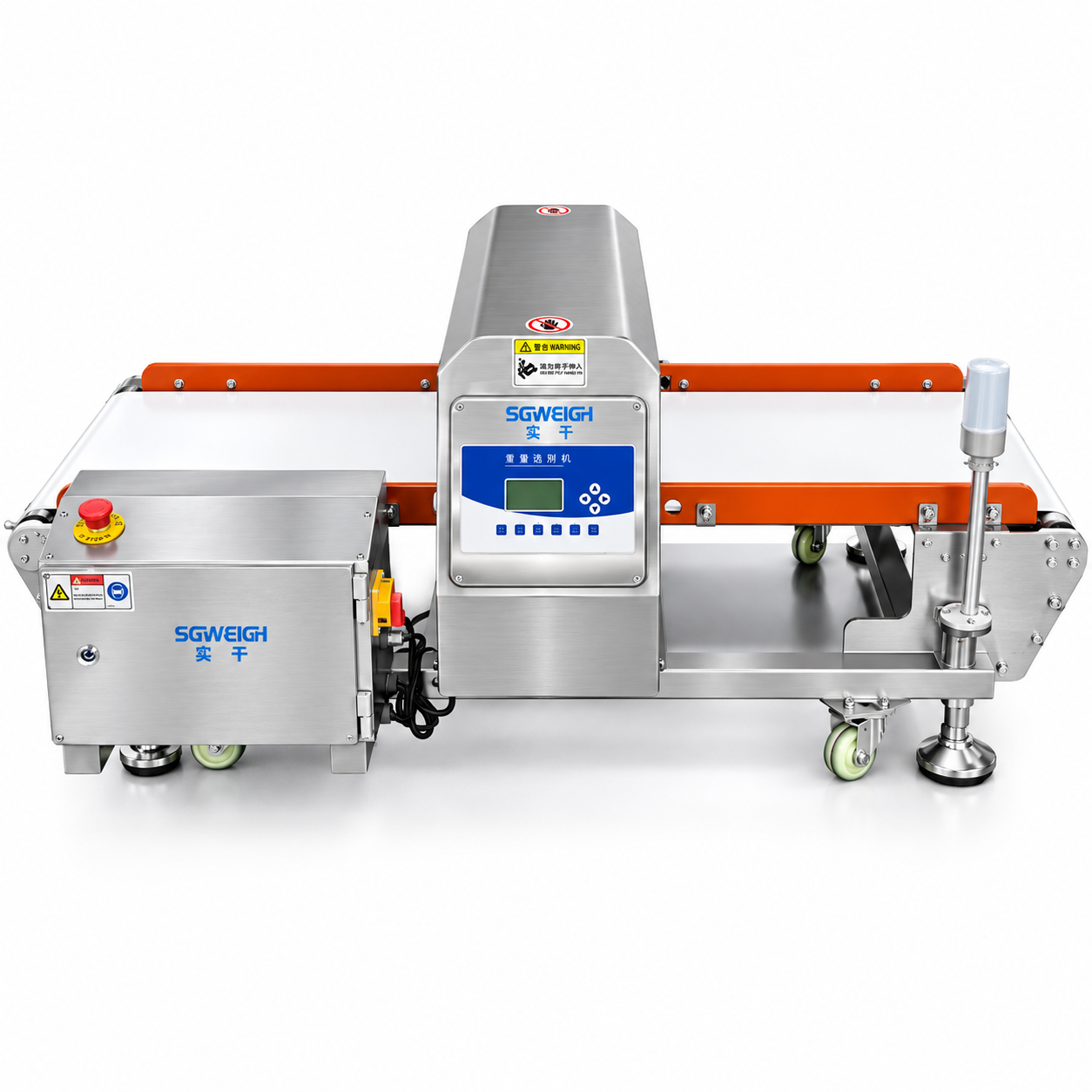

The Conveyor Belt 10-30kg Heavy Object Industry Metal Detector is capable of detecting ferrous, non-ferrous and stainless metals in dry and conductive products produced in the food, dairy, pharmaceutical, chemical, paper, plastic, rubber and textile industries. It can be placed after the packaging machine to perform metal detection on the packaged products.
Industry Metal Detector
Tech Specifications
Machine Grade:Food Grade
Detect method:Electromagnetic wave detection
Detecting width:150-1000mm customized according to requirements
Detecting height:80-500mm (or custom-made)
Detecting sensitivity:Fe 0.8mm-1.2mm, Non-Fe 1.5mm- 2mm, SUS 1.5mm- 2.5mm
Detecting adjustment:Intelligent adjustable
Belt Speed:25m /min (or specified)
Alarm mode:The buzzer alarm, the motor automatically stop
Power:AC220V,50/60Hz (Or Customized)
Note: When machine detects dilfferent products,it will have different sensitivity.
The final sensitivity on your product depends on product effect, working environment and place of metal.
Main Features
1) Used to detect magnetic and non-magnetic metals.
2) Suitable for bulk and packaged materials.
3) Conveyor belt conveying system.
4) Rejection method: When metal foreign objects are found, the belt stops and buzzes or automatically rejects them.
5) Wide range of width, length and height, flexible to choose.
6) Clean design, easy to clean.
7) Provide multiple solutions according to your operation, standards and food safety level.
Application
Our Company
Our Customers
Our Exhibitions
Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
FAQ
Q1. Are you a manufacturer or trader?
A: We are a manufacturer and we are located in Shanghai,China. We have our own design team for product design.
Q2. What are your company’s requirements for payment terms?
A: TT,L/C,Western Union,Money Gram,Paypal,International Credit Card.,
Q3: Can you explain the whole transaction process?
1. Understand the specific needs of customers and determine the machine details.
2. Sign the contract.
3. Pay the deposit.
4. The factory arranges production.
5. Test and inspect the machine before shipment.
6. Check by customers through online or on-site testing.
7. Shipment and transportation, balance payment.
Q4. What kind of shipping method can you provide?
A: By sea, by air and by international express.We will send the photo and video of machine to customer to check the machine running situation before delivery.
Q5. Do you accept customer logo and customization?
A: We accept all kinds of customization and logo for our customers for all our products.
Q6. How about the packing for product? Is it easy damaged during transportation?
A: No.We takes of wooden case and it is very safe.
Tags:Heavy Object Metal Detector,Industry Metal Detector
