|| Product Introduction
Rotary Checkweigher is used to control the weight of plastic bottles filled with tablets and capsules.Bottle Checkweighers ensure stable weighing without causing bottles to tip over or fall.The Small-Weight Bottles Rotary Checkweigher measures cylindrical products such as aerosols, glass and plastic bottles at high speed and can be easily integrated into production lines.
|| Tech Specifications
Type:SG-Z
Weighing scope:2-300g
Restrictions of product:Ф10-100 Н:20-200(mm)
Accuracy:±0.01g (Depends on products)
Division scale:0.01g
Belt Speed:0-50m/min
Highest speed:60pcs/min,120pcs/min,180pcs/min(Optional)
Chain plate width:100mm
Weight of machine:about 260Kg
Powder supply ：AC220V 50HZ
Power:about 400W
Main material:SUS304
|| Main Features
1. Large screen display, clear viewing, easy operation.
2. Default Chinese and English operation interface.

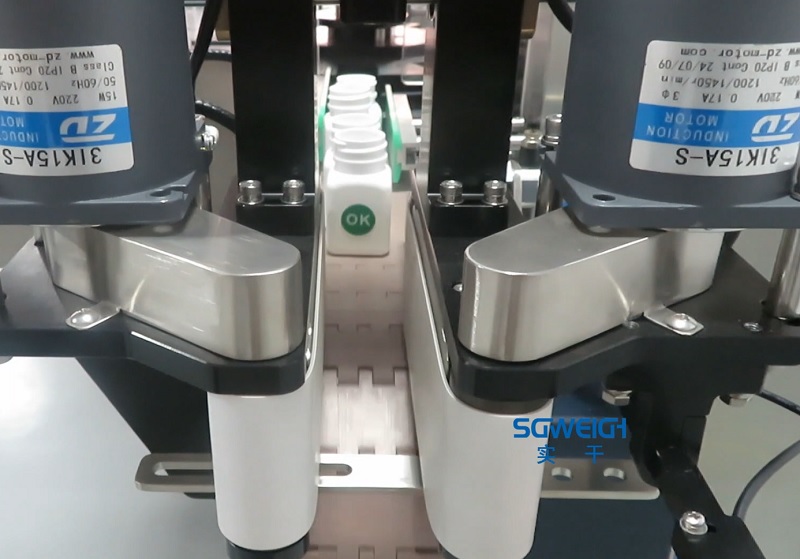

3. Photoelectric positioning, the turntable accurately sends the product to the weighing sensor.
4. The chain conveyor is strong and durable.
5. Three-level operation authority management, special self-set password.
6. 100 product formulas are preset and stored.
7. Unqualified products are automatically rejected.
8. Multi-channel passing products to improve production efficiency (customizable number of channels).
|| Application
|| Our Customers
|| Our Exhibitions
|| Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
