■ Product Overview

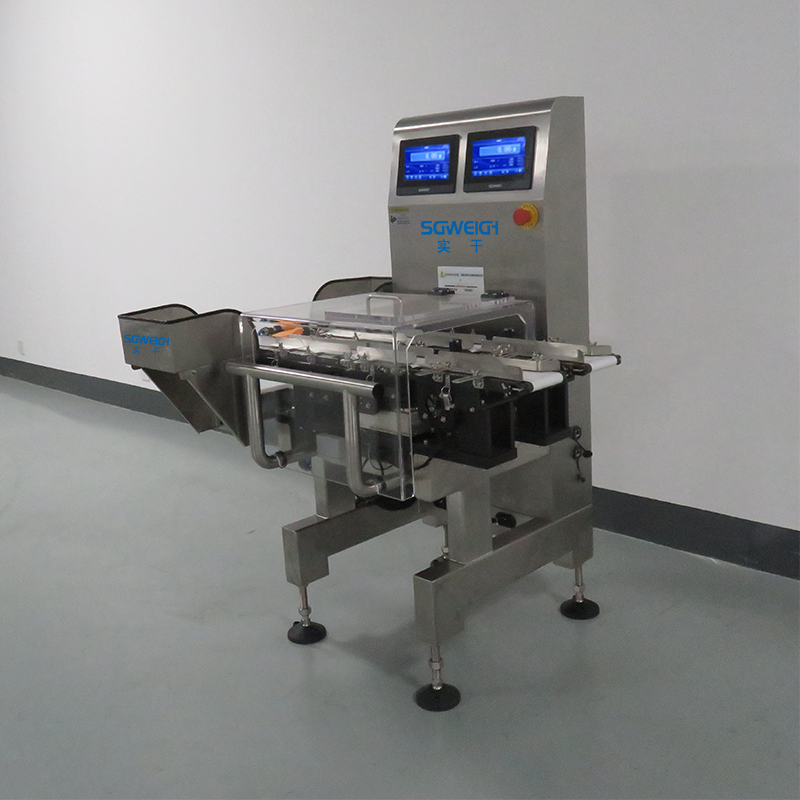

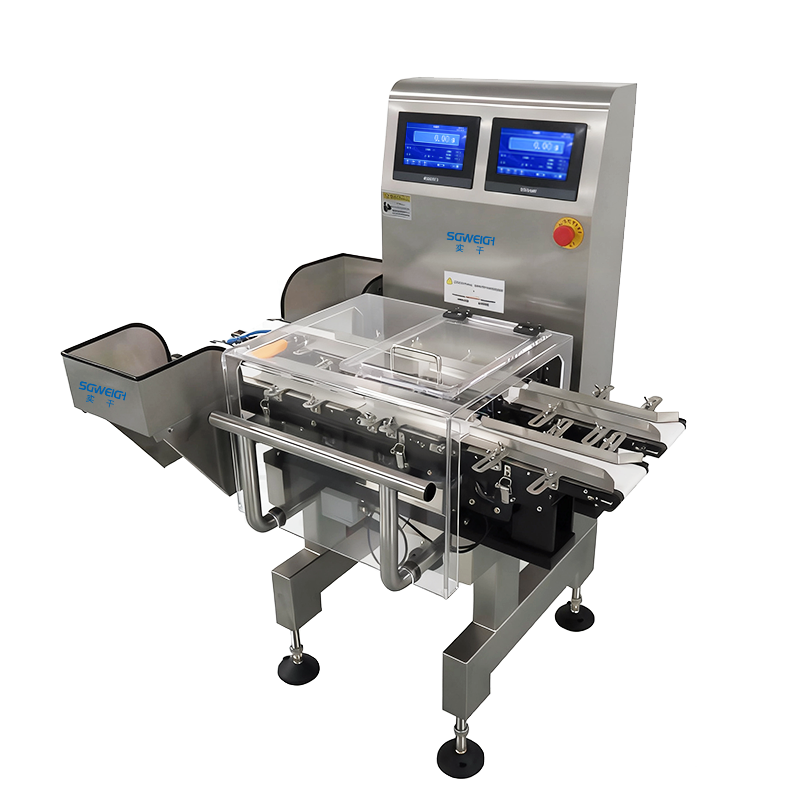

The 2-Track Dual-Screen Checkweigher is a high-efficiency weighing solution designed for simultaneous multi-line product inspection. Featuring two independent weighing tracks and dual touch-screen control interfaces, it enables real-time monitoring and individual parameter adjustment for each line, significantly enhancing production throughput and flexibility.
■ Tech Specifications
Model: SG-2X
Weighing range: 1-50g
Product restrictions: L:180 W-40 H:2-20(mm)
Sorting accuracy: ±0.01g (Depends on products)
Graduation value: 0.01g
Maximum speed: 40-60 pcs/min (one lane)
Belt width: 100mm (customizable)
Machine weight: about 80kg

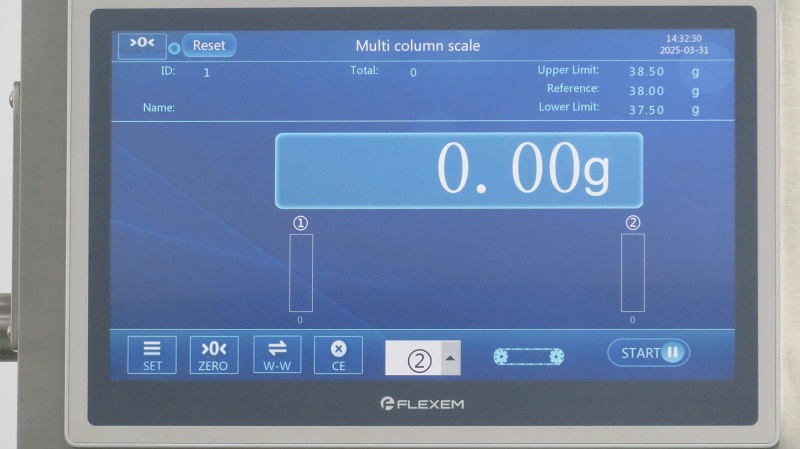

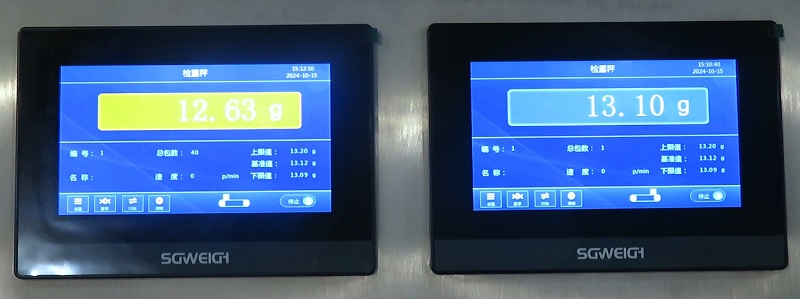

Display: Dual-screen touchscreen display
Power supply: AC220V±10%50HZ
Power: about 100W
Main material: SUS304
■ Main Features
1.Dual-track simultaneous operation for high productivity.
2.Independent dual-screen control system.
3.High-precision digital load cells with fast response.
4.Multiple reject options (air blow, push rod, swing arm).
5.Stainless steel structure compliant with GMP and HACCP standards.
6.User-friendly interface, supports Chinese and English support.
7.Optional data connectivity (USB, Ethernet, RS485).
■ Application
■ Customers
■ Exhibitions
■ Packaging & Delivery
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
