|| Product Introduction

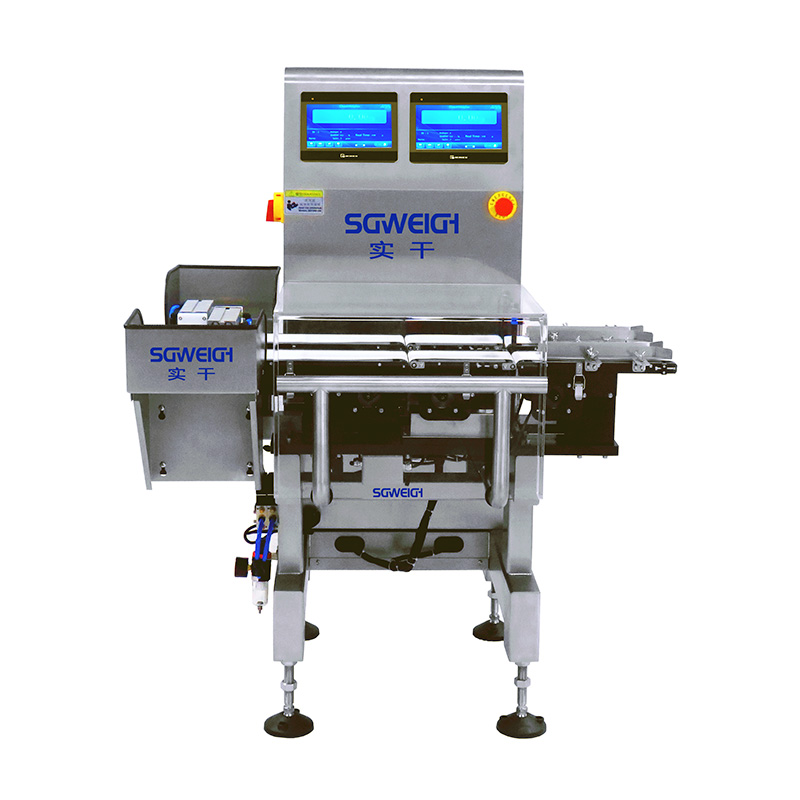

High Sensitive 2-Channel Blister Check Weigher is a specialized weighing system designed for quality control in pharmaceutical packaging, particularly for blister packs.OEM/ODM Checkweigher With Double Reject System ensures that each blister pack contains the correct number of tablets or capsules by verifying their weight.
|| Tech Specifications
Model: SG-2X
Weighing range: 1-50g
Product restrictions: L:180 W-40 H:2-20(mm)
Sorting accuracy: ±0.01g (Depends on products)
Graduation value: 0.01g
Maximum speed: 70pcs/min
Belt width: 100mm
Machine weight: about 80kg
Power supply: AC220V±10%50HZ
Power: about 100W
Main material: SUS304
|| Main Features
1.Dual-Channel Operation
Processes two blister packs simultaneously, increasing throughput.
Ideal for high-speed production lines.
2.Precision Weighing
High-accuracy load cells detect underweight (missing tablets) or overweight (extra tablets) blisters.
Rejects defective packs automatically.

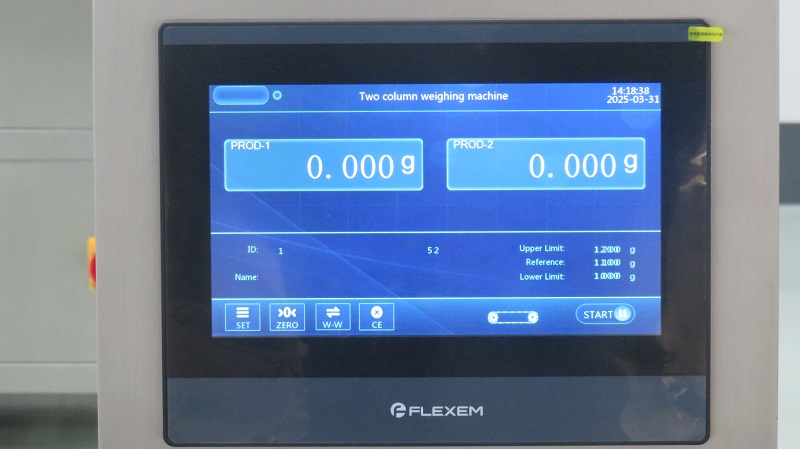

3.User-Friendly Interface
Touchscreen HMI for easy setup and monitoring.
Stores multiple product recipes for quick changeovers.
4.Rejection Mechanism
Pneumatic or mechanical rejectors remove non-compliant blisters.
Constructed with hygienic, easy-to-clean materials.
|| Application
|| Our Company
|| Our Customers
|| Our Exhibitions
|| Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
