●Product Introduction

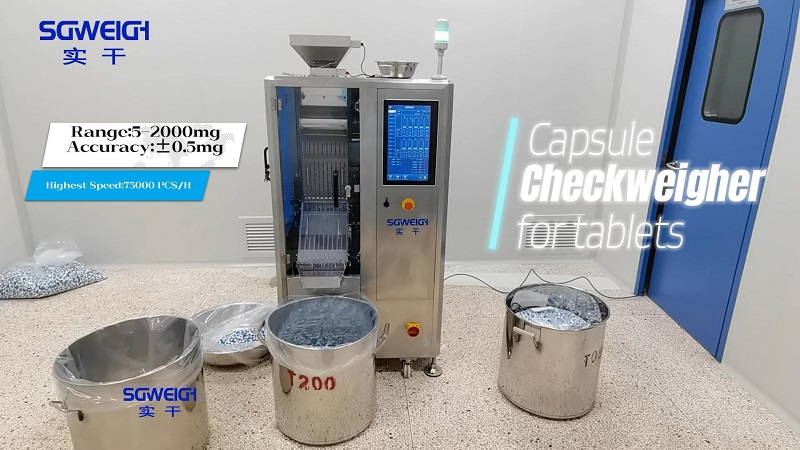

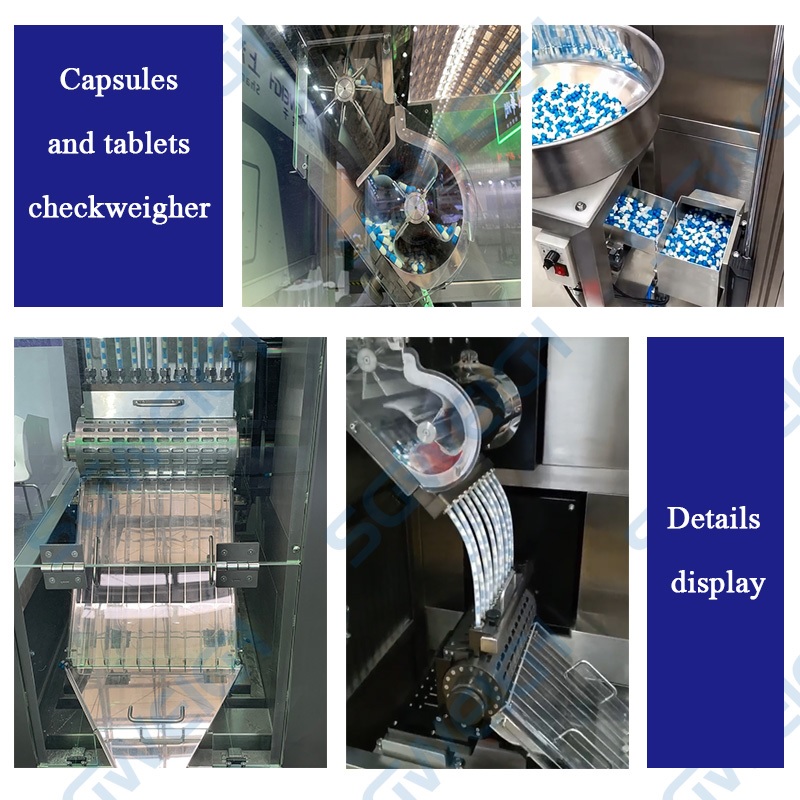

High-Speed 100% Capsule Checkweigher can fully check the weight of up to 100,000 capsules per hour. The device features a newly developed capsule handling mechanism for reliable infeed and rejection. The Tablets Checkweigher measures weight with an accuracy of +/- 0.5 mg. It can measure a wide range of capsules.
●Tech Specifications
Type:SG-JN10/SG-JN20/SG-JN3O
Weighing scope:5-2000mg
Display scale:0.1mg
Highest sorting accuracy:±0.5mg
Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)
Highest sorting ability:100000 PCS/HR/200000 PCS/HR/300000 PCS/HR
Number of columns:10 lanes/20 lanes/30 lanes
Power supply:AC-220V±10%, 50HZ
Compressed air:0.3-0.9Mpa
Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Humidity:30-70%(but no condensation)
Shell material:SUS304
You can select the best suitable model depending on the production volume.
●Main Features
1. Automatic weighing: quickly detect the weight of a single capsule to determine whether it is within the qualified range.
2. Weight sorting: automatically remove overweight or underweight unqualified products.
3. Data statistics: record production data and generate reports to facilitate quality traceability and analysis.
4. High-precision detection: usually the accuracy can reach ±0.05g, suitable for capsules of different specifications (such as No. 00-No. 5).
●Application
Pharmaceutical industry: pharmaceutical capsules, tablets, pills, etc.
Health care products industry: such as fish oil soft capsules, probiotic capsules, etc.
Food industry: weight detection of food capsules or tablets.
●Our Company
●Our Customers
●Our Exhibitions
●Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
