◎Product Introduction

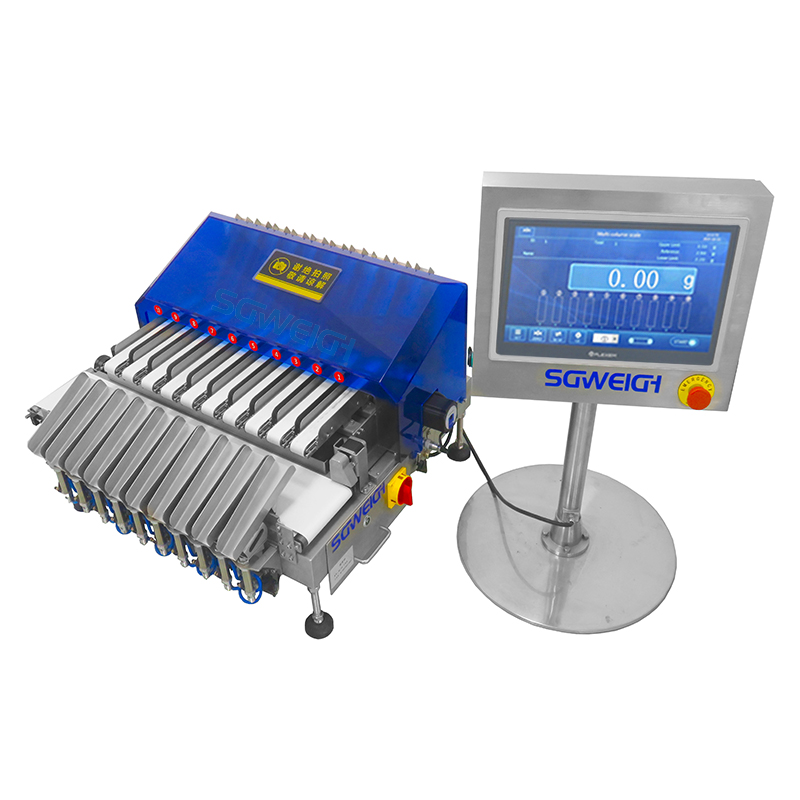

High Speed Precise Multi-lane Checkweigher can be integrated into any high-speed production line and accurately weigh all small packaged products. Each product is individually weighted,unqualified sticks are automatically rejected.Checkweigher (2-10 line) is suitable for on-site product checkweighing in multi-lane packaging machines.
◎Tech Specifications
Type:SG-10X(customize)
Weighing scope:2-300g
Restrictions of product:L:180 W:40 H:2-20(mm)
Accuracy:±0.01g (Depends on products)
Division scale:0.01g
Belt width:30mm
Highest speed:70pcs/min(one lane)
Weight of machine:about 200Kg
Powder supply：AC220V 50HZ
Power:about 300W
Main material:SUS304(Stainless Steel)
◎Main Features
1. Small footprint, independent channels, and trend control.
2. Space-saving design simplifies production line integration.
3. Each channel can be started and stopped independently.
4. The checkweigher controller can be installed near the filling and packaging machine for easy adjustment of the filling process.
5. Remote real-time monitoring is possible.
6. Statistics for each channel: real-time results display, trend chart display, and histogram display.
◎Application
◎Our Company
◎Our Customers
◎Our Exhibitions
◎Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
TAGS:
Capsule Checkweigher
Multi-Lane Check Weigher
Pharmaceutical Checkweigher
Capsule Tablet Metal Detector
