|| Product Introduction

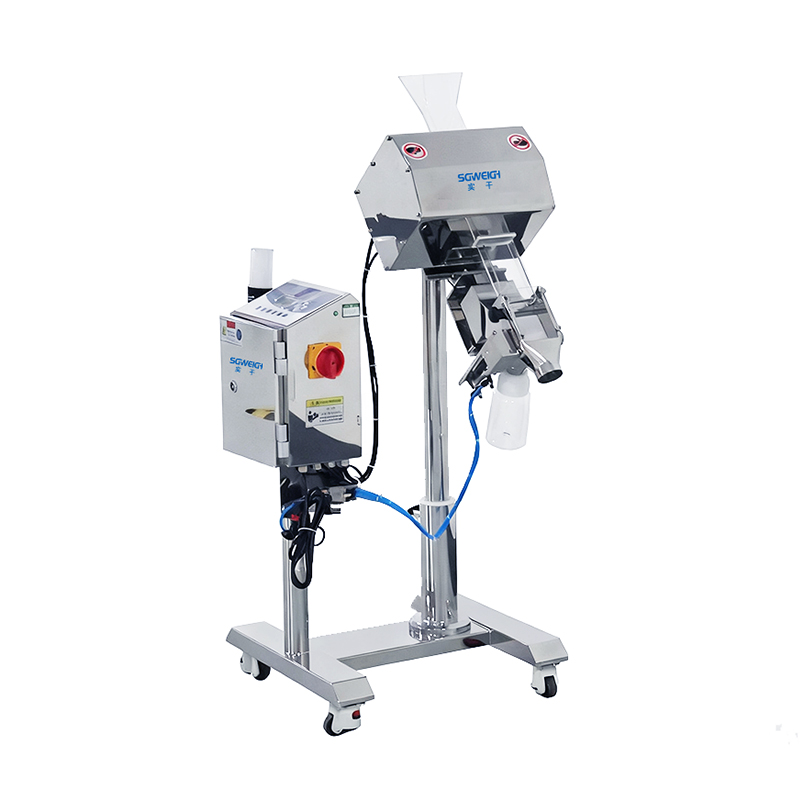

The 0.3mm Sensitivity Metal Detector is a high-sensitivity metal foreign object detection device designed specifically for the pharmaceutical industry.Capsule & Tablet Metal Detector is widely used in online inspection processes after tablet compression and capsule manufacturing. The equipment employs high-frequency sensing technology and industrial-grade signal processing algorithms to accurately detect magnetic and non-magnetic metal foreign objects (such as Fe, non-Fe, and SUS) in tablets, ensuring drug purity and safety.
|| Tech Specifications
Type:SG-M50
Inlet height: 770-930mm Port size: 76mm
Outlet Height: 770-860mm Port size: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Sensitivity(adjustable or not):Yes
Detection sensitivity: Fe: 0.3mm, SUS: 0.5mm,Non-Fe:0.5mm
Operation Mode:Touch Screen/LED fast key input
Machine weight: 65kg
Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
|| Main Features
1. High-Sensitivity Metal Detection Capability
Utilizing high-frequency digital signal processing (DSP) technology, it maintains a high detection rate even in high-density tablet flows.
2. Online High-Speed Detection, Compatible with Tablet Compressors
Achieves a detection speed of up to 500,000 tablets/hour, ensuring real-time detection in high-speed production environments.
3. Automatic Rejection of Contaminated Tablets
Automatically rejects tablets with abnormal metals after identification. The rejector operates quickly and accurately without affecting normal tablet flow.
4. Pharmaceutical-Grade Structural Design
Drug contact parts are made of 304/316 stainless steel.
Quick-release structure for easy cleaning and verification.
5. Safety and Data Management Module
Touchscreen HMI interface.
Multi-level access control.
Automatic saving of detection records for strong traceability.
USB/Ethernet data export.
