■ Product Introduction

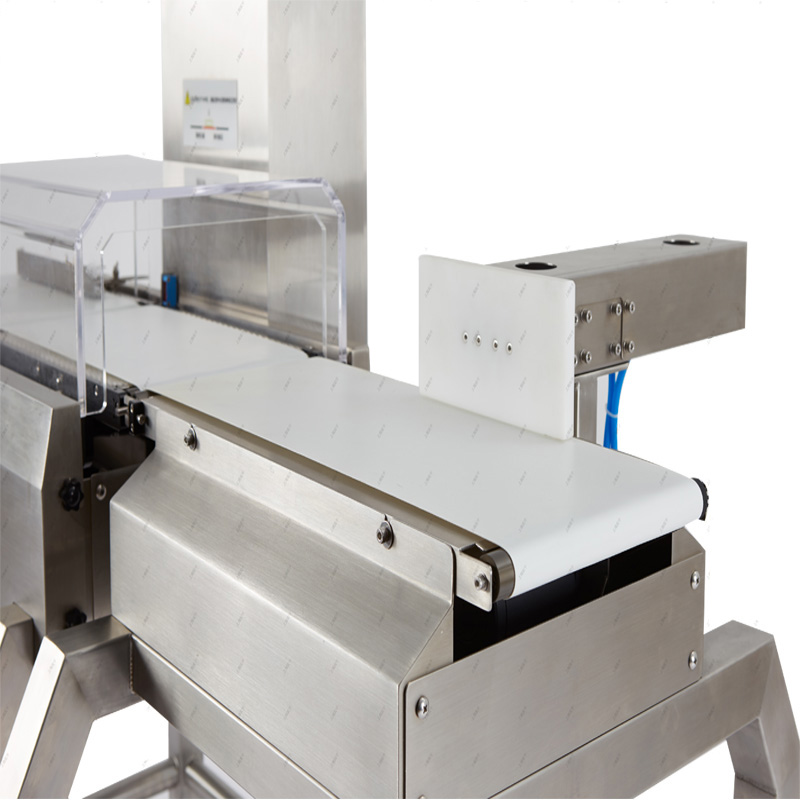

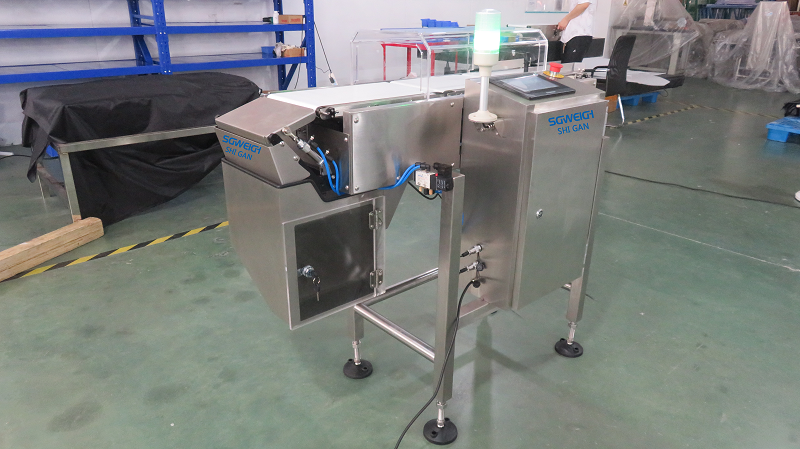

Online High Accuracy HMI Check Weigher is an automated industrial scale designed to verify product weight and remove non-conforming items from the production line.Check Weigher for Boxes-Bottles-Vials-Pouches can be embedded in various production/transportation lines and conveyor systems.
■ Tech Specifications
Type:SG-300 Checkweigher
Weighing Range:5-3000g
Limited of product:L: 350 W:300 H:3mm or more
Accuracy:±0.3g-0.5g Depends on product
Division Scale:0.1g
Belt Speed:0- 60m/min
Max Speed:80 pcs/min
Belt Width:300mm
Machine Weight:100kg
Power Supply:AC-220V 50HZ
Power:200W
Main Material:SUS304 stainless steel
■ Main Features
1.High-speed operation (typically 60-150 items/minute)
2.Configurable accept/reject weight limits
3.Statistical process control (SPC) capabilities
4.Integration with production line controls
5.CIP (Clean-in-Place) designs for food/pharma
6.Data logging and reporting functions
■ Application
■ Customers
■ Exhibitions
■ Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
