■ Product Overview

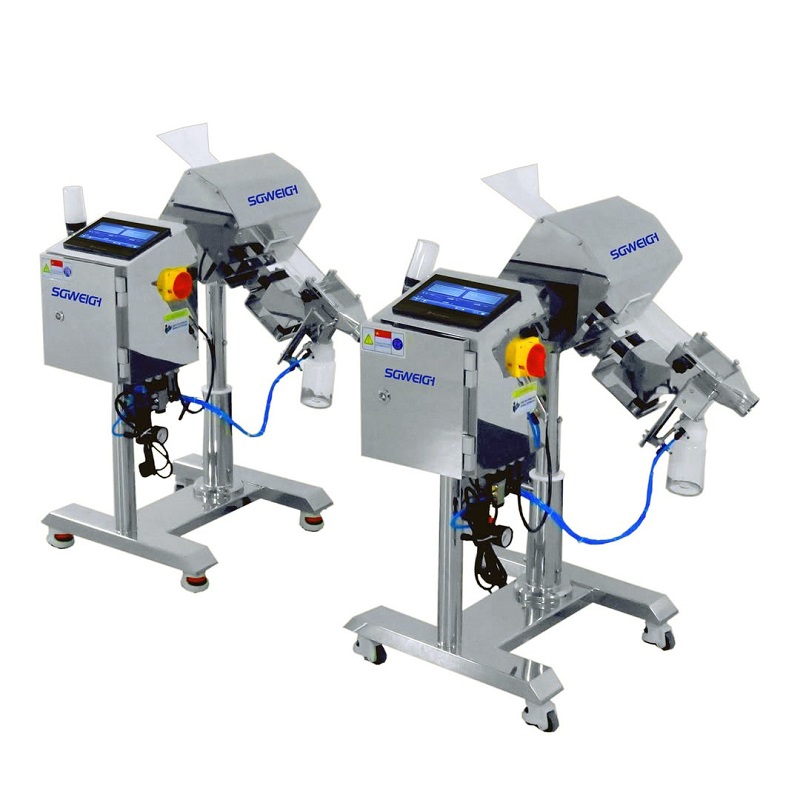

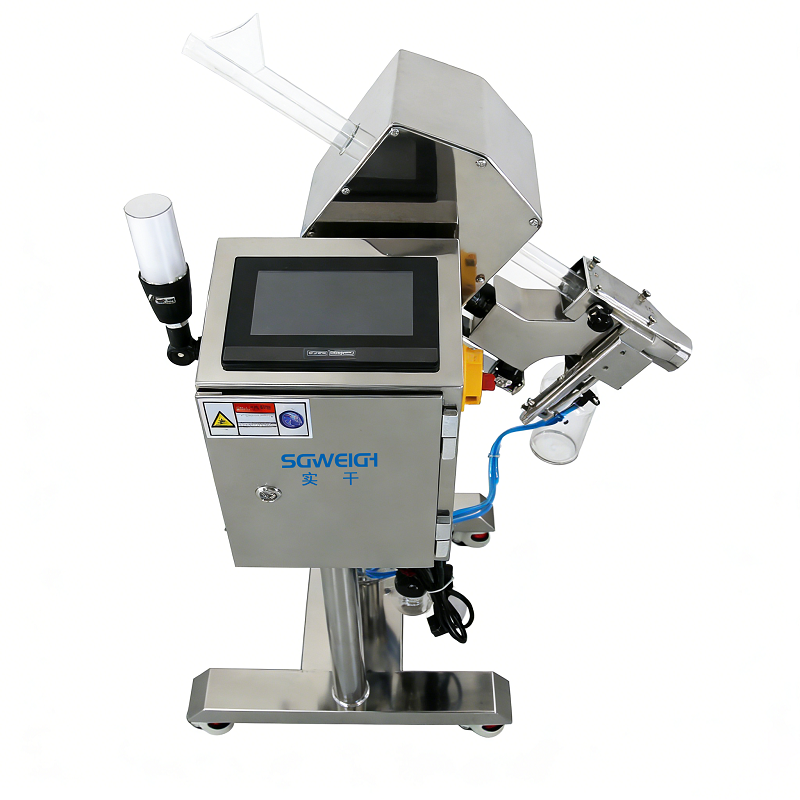

Pharma Nutraceutica Metal Detector inspects tablets, capsules, granules and automatically rejects any product containing ferrous, non-ferrous or stainless steel contamination. Typical deployments are after the tablet press / de-duster or before packaging.
■ Tech Specifications
Type:SG-M500
Inlet height: 770-930mm Port size: 76mm
Outlet Height: 770-860mm Port size: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Sensitivity(adjustable or not):Yes
Detection sensitivity: Fe: 0.3mm, stainless steel: 0.5mm
Machine weight: 65kg
Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
■ Main Features
1.High Sensitivity: Designed to detect minute metal particles,with adjustable sensitivity.
2.High Throughput: Capable of inspecting a very large number of tablets or capsules per minute.
3.Compliance: Built with cGMP-compliant materials (often 316/316L Stainless Steel for contact parts) and designed for easy cleaning (tool-free disassembly).
4.Failsafe Operation: The rejection system is monitored with sensors to ensure the contaminated product is correctly rejected and that no product slips past unchecked.
■ Application
■ Customers
■ Exhibitions
■ Packaging & Delivery
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.

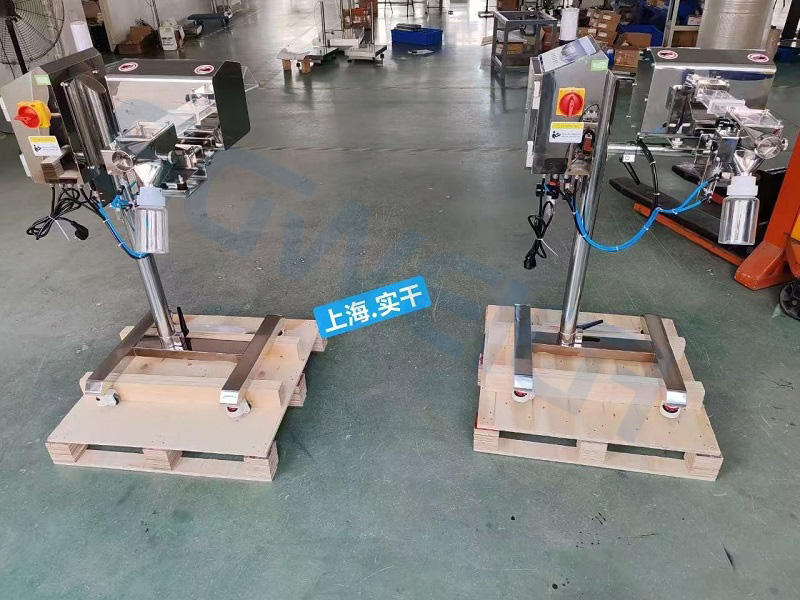

● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
