Product Introduction
An advanced solution, which allows you to check the weight of products in transit on a double lane without the need to install two systems.

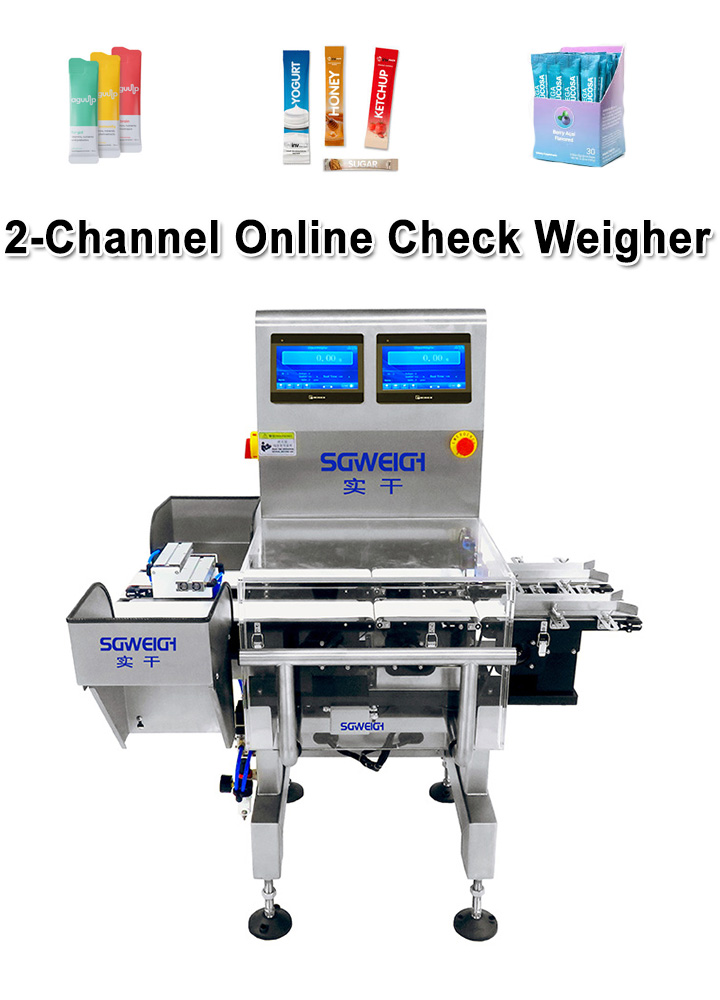

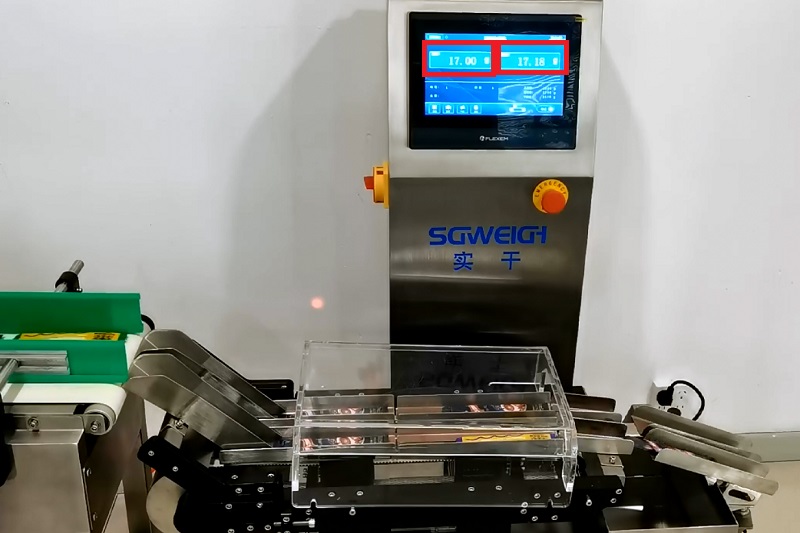

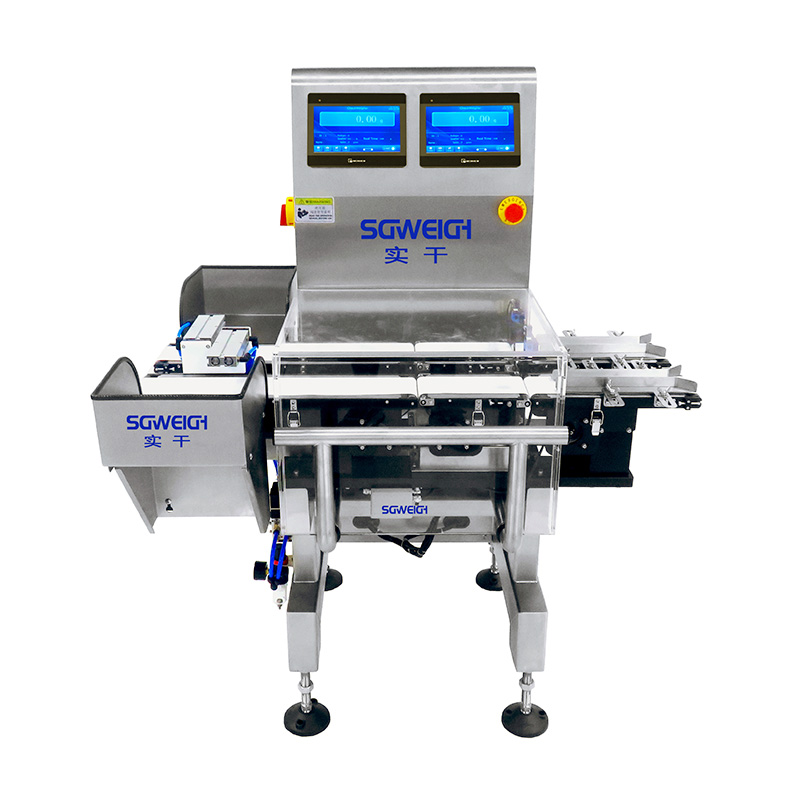

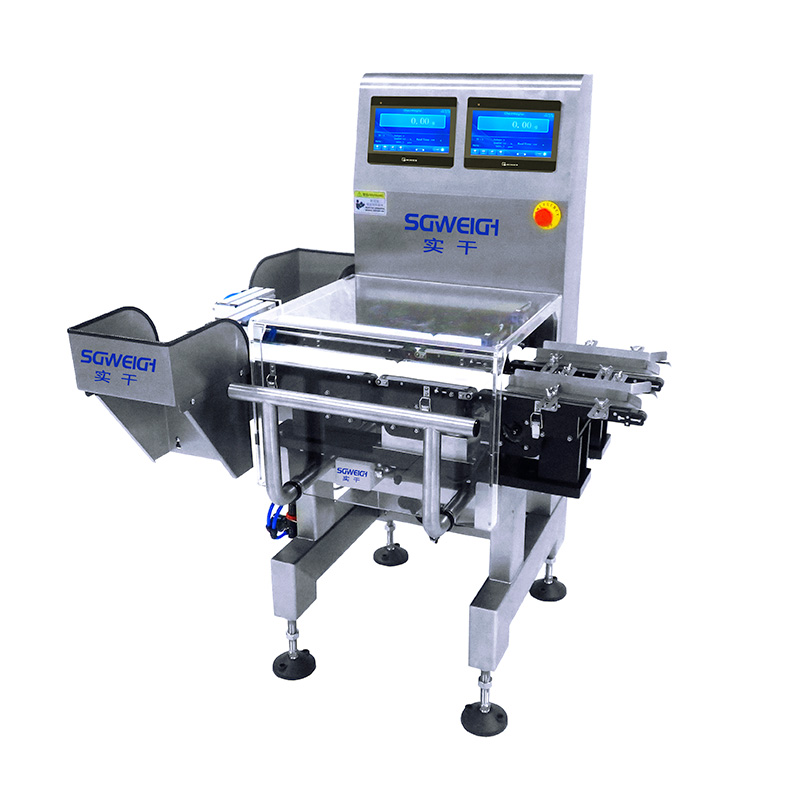

The Dynamic Weighing Machine is configured on two parallel control units, each with a dedicated operator interface, to obtain simultaneous but independent management of the lines.SG-2X Dual-Lane Conveyor Checkweigher System is possible to adapt the double lane to different wheelbases of the customer’s lines and implement customizable rejection modules.
Dual-Lane Checkweigher Systems

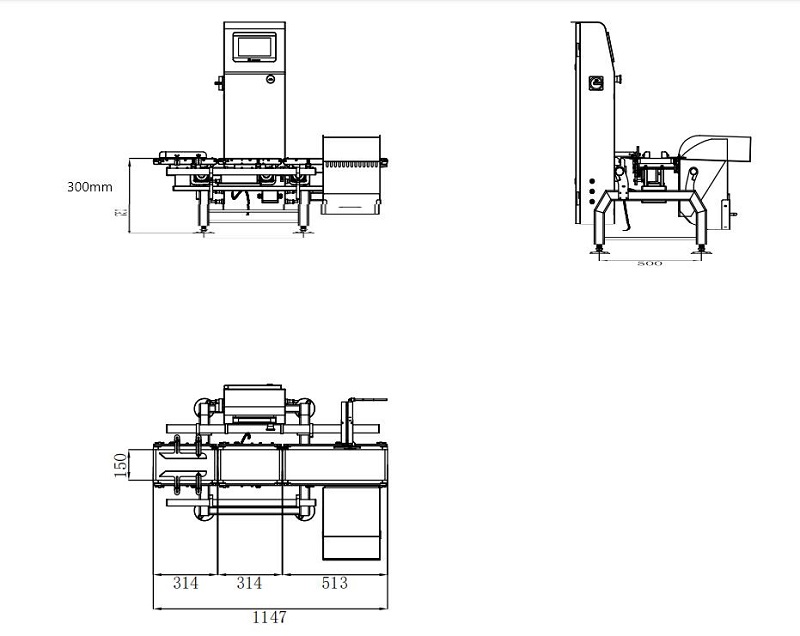

Tech Specifications
Model: SG-2X
Weighing range: 1-50g
Product restrictions: L:180 W-40 H:2-20(mm)
Sorting accuracy: ±0.01g (Depends on products)
Graduation value: 0.01g
Maximum speed: 70pcs/min
Belt width: 100mm
Machine weight: about 50kg
Power supply: AC220V±10%50HZ
Power: about 100W
Main material: SUS304
Main Features
1. One machine is equipped with 2 touch screens and 2 weighing channels, 2 rejection systems, which do not interfere with each other and weigh independently.
2. Lifting type rejection of unqualified products.
3. Multiple channels can be customized to improve production efficiency.
4. Chinese and English operation interface.
5. Built-in report statistics. Keep track of production status at any time.
6. Three-level operation authority management, support for self-set passwords.
7. Can weigh various products.
Application

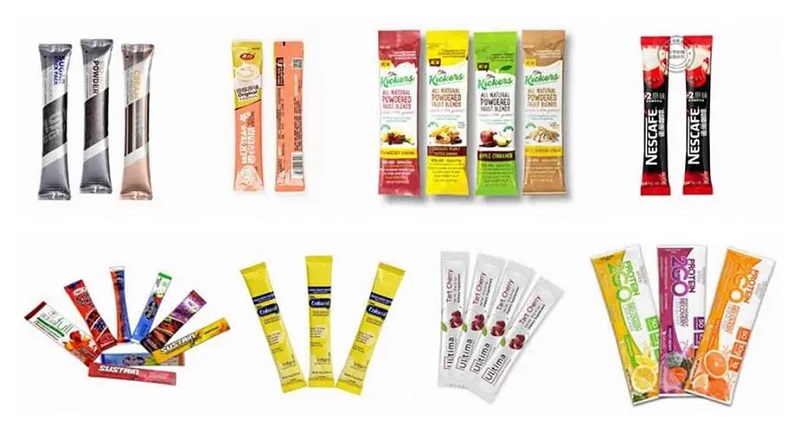

Dual-lane Checkweighers are typically placed after filling and packaging machines of sticks, tubes, pouches, and flow-wrapped products.

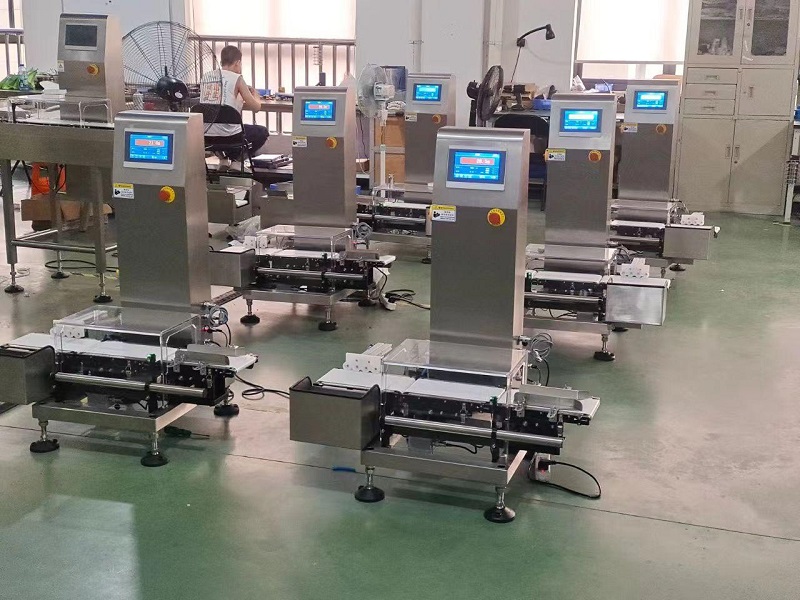

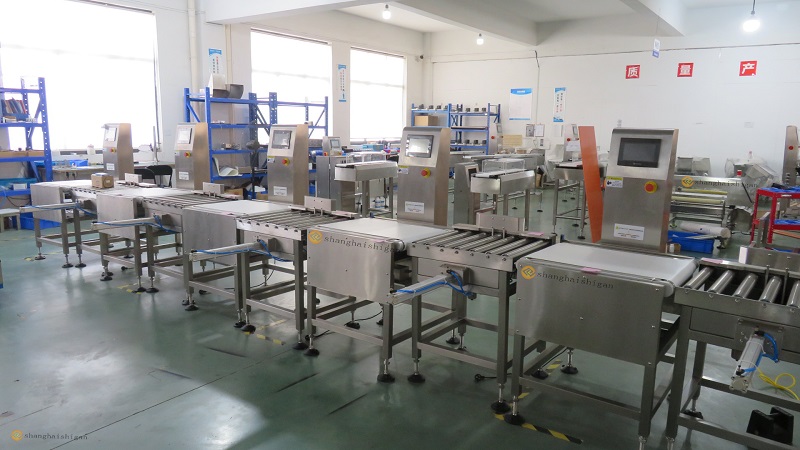

Our Company
Our Customers

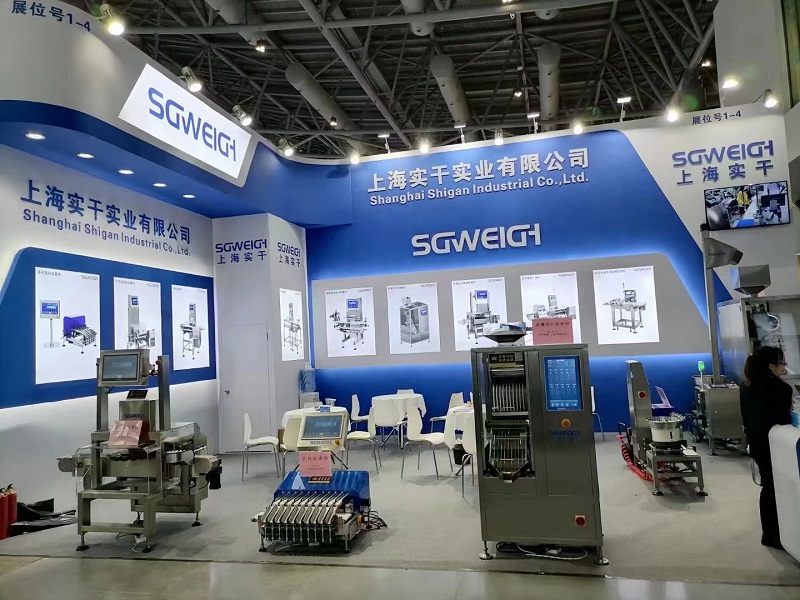

Our Exhibitions
Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
FAQ
Q1. Are you a manufacturer or trader?
A: We are a manufacturer and we are located in Shanghai,China. We have our own design team for product design.
Q2. What are your company’s requirements for payment terms?
A: TT,L/C,Western Union,Money Gram,Paypal,International Credit Card.,
Q3: Can you explain the whole transaction process?
1. Understand the specific needs of customers and determine the machine details.
2. Sign the contract.
3. Pay the deposit.
4. The factory arranges production.
5. Test and inspect the machine before shipment.
6. Check by customers through online or on-site testing.
7. Shipment and transportation, balance payment.
Q4. What kind of shipping method can you provide?
A: By sea, by air and by international express.We will send the photo and video of machine to customer to check the machine running situation before delivery.
Q5. Do you accept customer logo and customization?
A: We accept all kinds of customization and logo for our customers for all our products.
Q6. How about the packing for product? Is it easy damaged during transportation?
A: No.We takes of wooden case and it is very safe.
Tag:Dual-Lane Conveyor Checkweigher,Dynamic Weighing Machine
