Product Introduction

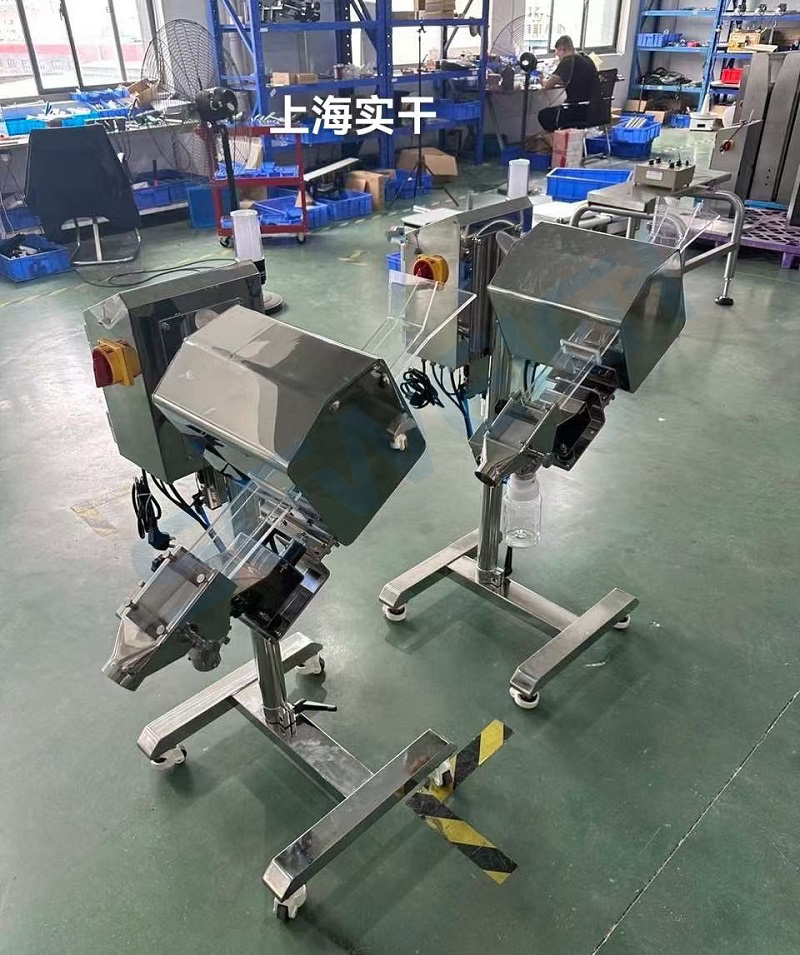

SG-M50 Metal Detector for Capsules & Tablets is suitable for tablet presses and capsule filling machines, detecting magnetic and non-magnetic metal impurities and quickly removing them from the production line without interfering with the normal production process and reducing material loss.
Metal Detector for Capsules & Tablets
Tech Specifications
Type:SG-M50
Feed port height and size: Height: 770-930mm Feed port size: 76mm
Height and size of outlet: Height: 770-860mm Size of outlet: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Sensitivity(adjustable or not):Yes
Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm
Machine weight: 75kg
Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
Equipment dimensions: 1115*550 (1280-1400) mm
Note: The above sensitivity is when the test block freely falls through the detection pipeline. The actual detection sensitivity may vary due to different product characteristics or working environments,it should be based on the actual detection sensitivity.
Main Features
100% online inspection of capsules and tablets.
Ensures the highest quality level by rejecting tablets and capsules with metal traces.
High sensitivity to all metals (including non-magnetic, stainless steel).
Guaranteed to be free from any type of metal contamination.
Ensures that metal detectors do not carry metal residues into capsules.
Application
Metal Detector for Capsules & Tablets can use with any model tablet press machine & capsule filling machine, or use as independent unit.
Our Company
Our Customers
Our Exhibitions
Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
FAQ
Q1. Are you a manufacturer or trader?
A: We are a manufacturer and we are located in Shanghai,China. We have our own design team for product design.
Q2. What are your company’s requirements for payment terms?
A: TT,L/C,Western Union,Money Gram,Paypal,International Credit Card.,
Q3: Can you explain the whole transaction process?
1. Understand the specific needs of customers and determine the machine details.
2. Sign the contract.
3. Pay the deposit.
4. The factory arranges production.
5. Test and inspect the machine before shipment.
6. Check by customers through online or on-site testing.
7. Shipment and transportation, balance payment.
Q4. What kind of shipping method can you provide?
A: By sea, by air and by international express.We will send the photo and video of machine to customer to check the machine running situation before delivery.
Q5. Do you accept customer logo and customization?
A: We accept all kinds of customization and logo for our customers for all our products.
Q6. How about the packing for product? Is it easy damaged during transportation?
A: No.We takes of wooden case and it is very safe.
Tag:Capsule Tablet Metal Detector,Pharmaceutical Metal Detectors
