■ Product Overview

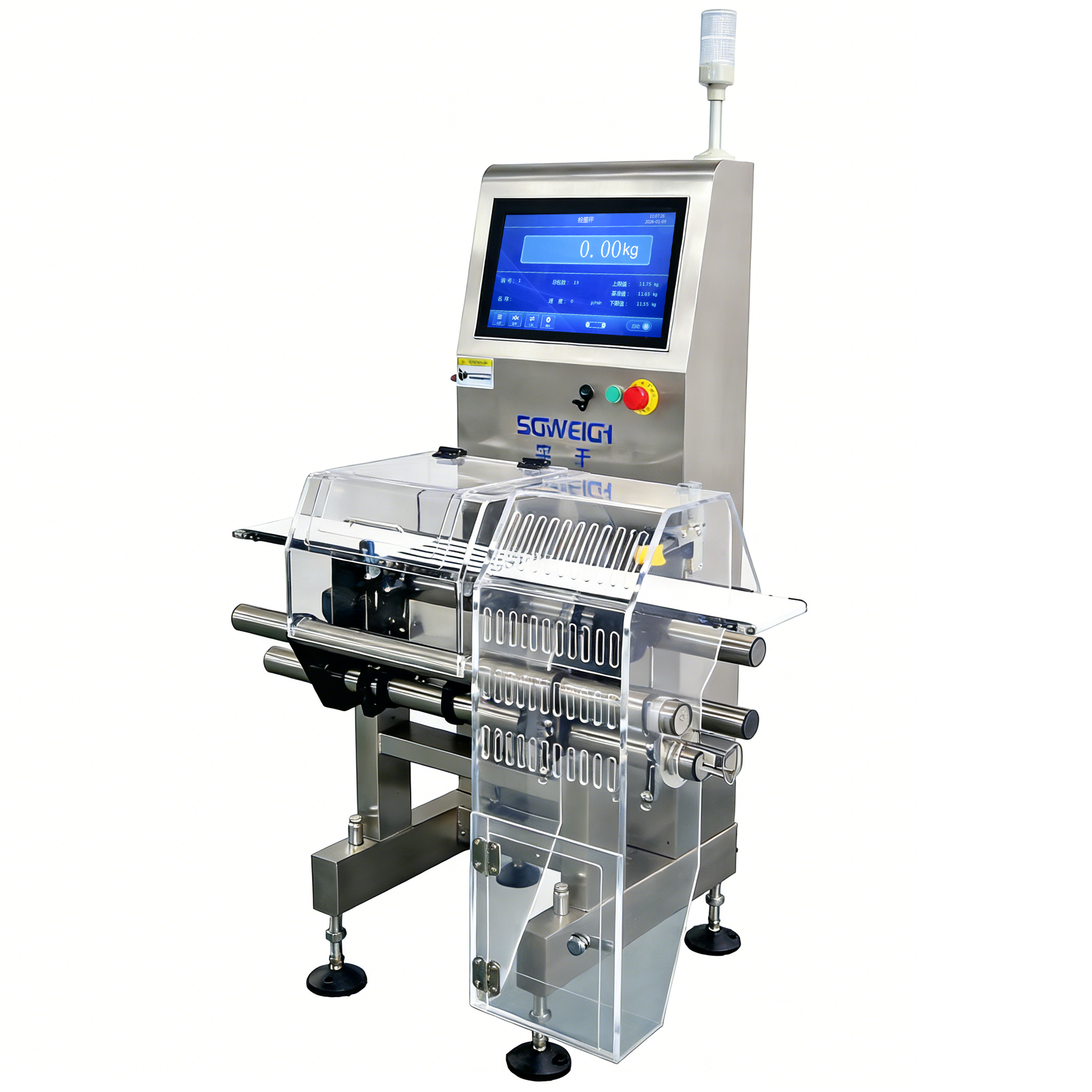

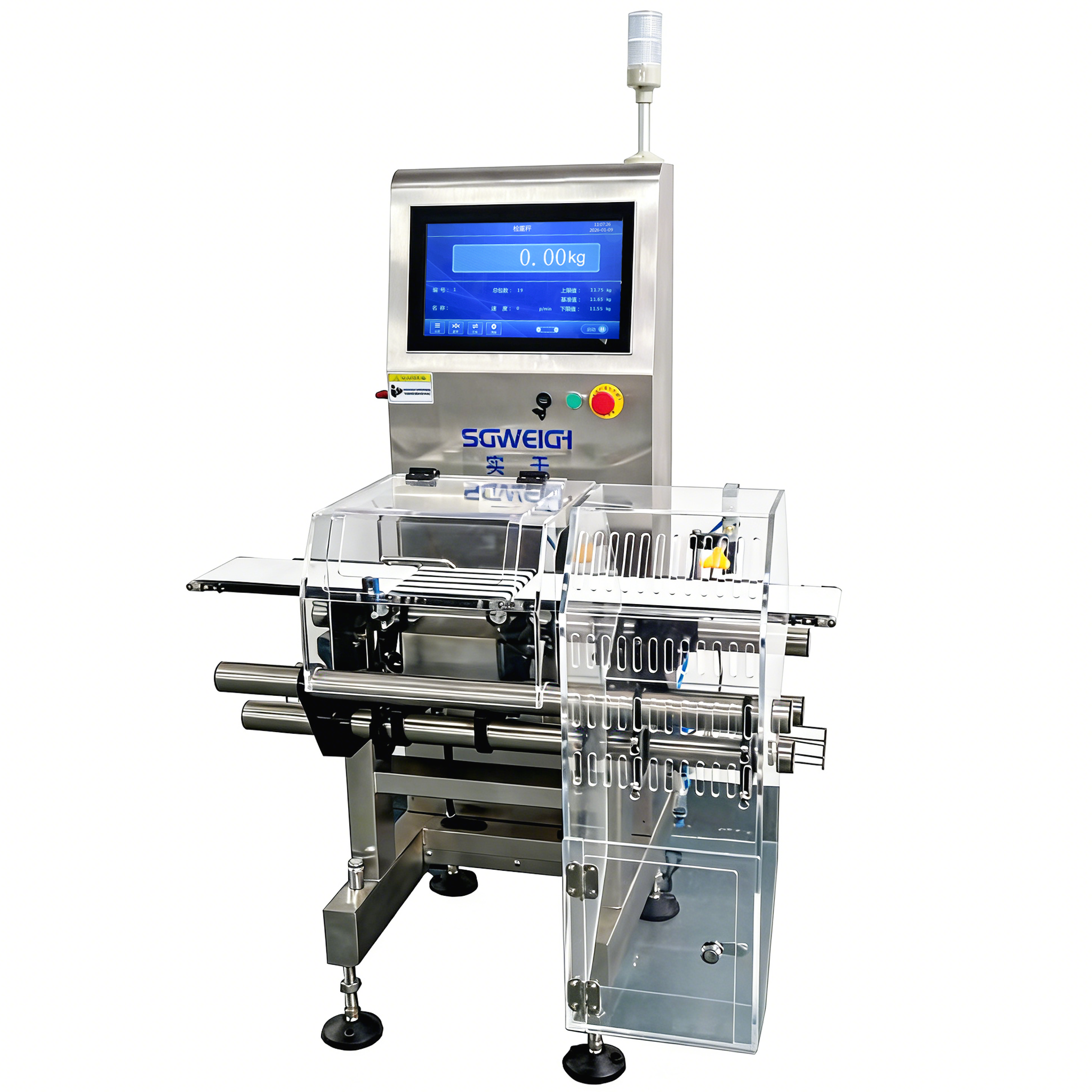

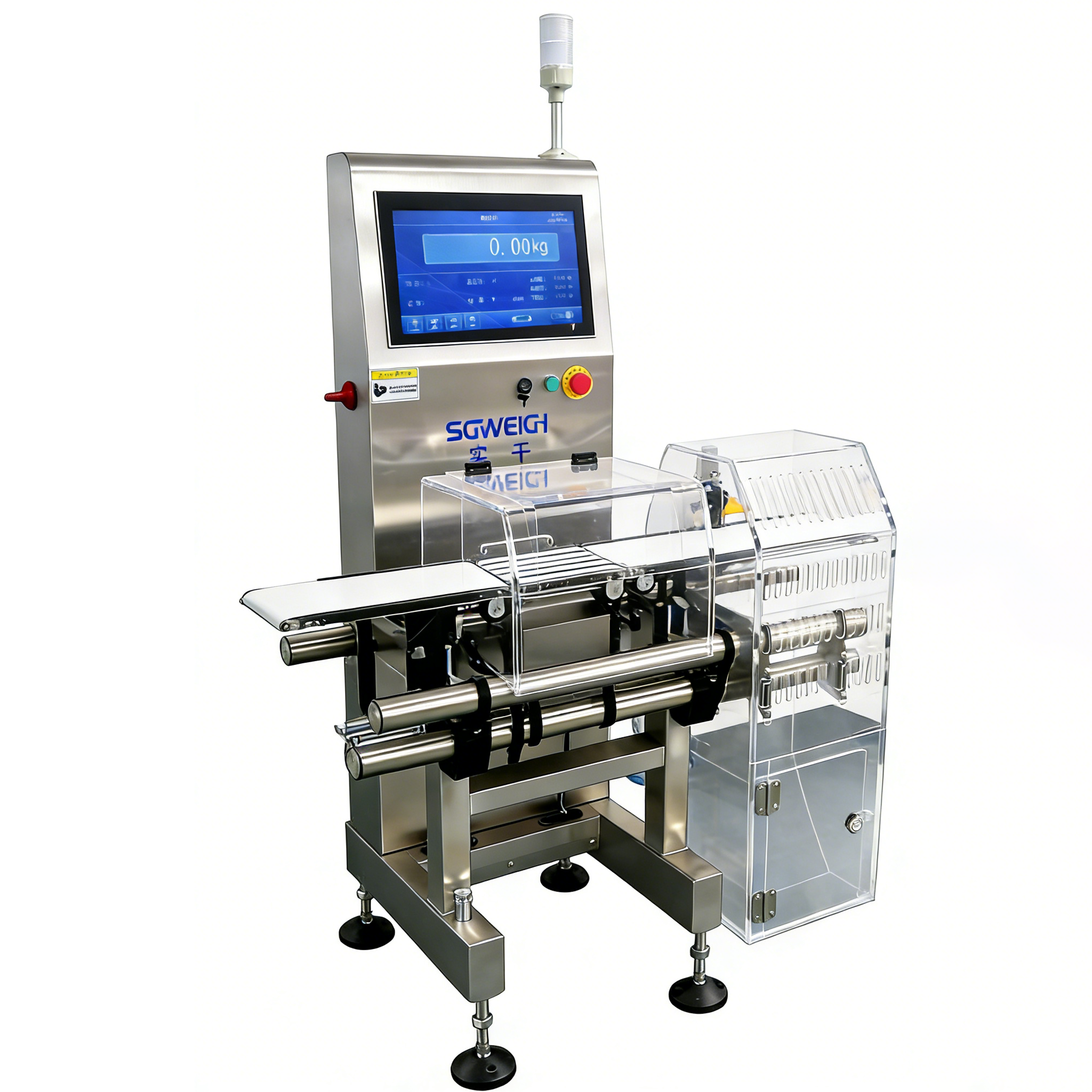

A high-quality Small Powder Bags Conveyor Checkweigher is the core equipment to ensure the weight accuracy of small powder packaging products, which is widely used in food, pharmaceutical, chemical, seasoning,milk powder and other industries. Checkweigher Solution integrates automatic conveying, precise weighing and intelligent sorting, solving the pain points of low manual weighing efficiency, large error, high labor cost and difficulty in meeting industrial production standards for small powder bags (such as 5g-500g powder sachets, powder pouches).
■ Tech Specifications
Type:SG-100
Weighing Range:2-300g
Limited of product:L:100 W:100 H:2-150mm
Accuracy:±0.05g Depend on products
Division Scale:0.01g
Belt Speed:0-90m/min
Max Speed:260 pcs/min
Belt Width:100mm
Machine Weight:70kg
Power Supply:AC 110/220V ±10% 50HZ
Power:100W
Main Material:SU304 stainless steel
■ Main Features
1.Adjustable Conveyor Speed:
The conveyor speed can be adjusted arbitrarily according to your existing production line rhythm, realizing perfect matching with upper and lower packaging equipment, without affecting the overall production efficiency.
2.Intelligent Touch Screen Operation:
The operation interface is simple and easy to learn, allowing one-key setting of key parameters such as target weight, allowable error and sorting speed, reducing the difficulty of operation and training costs for employees.
3.Automatic Sorting Function:
It can automatically identify and reject underweight, overweight and other unqualified small powder bags, avoiding manual sorting errors, ensuring the qualification rate of finished products and reducing the waste of raw materials.
4.Intelligent Data Recording & Export:
It can automatically record the weighing data of each small powder bag, including weight value, inspection time and qualification status, and supports data export in Excel/CSV format, facilitating enterprise production statistics, product quality traceability and compliance inspection.
■ These functional designs enable the checkweigher to form a fully automatic production link with the production line, greatly improving production efficiency and product qualification rate, and adapting to the high-standard requirements of modern industrial production.
■ Application
■ Customers
■ Exhibitions
■ Packaging & Delivery
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
