|| Product Introduction

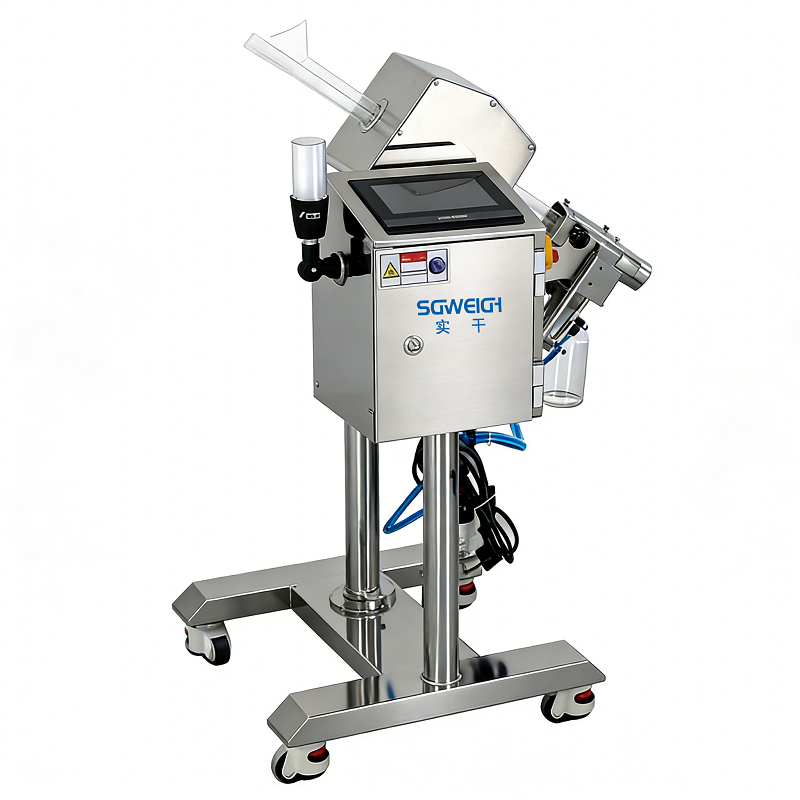

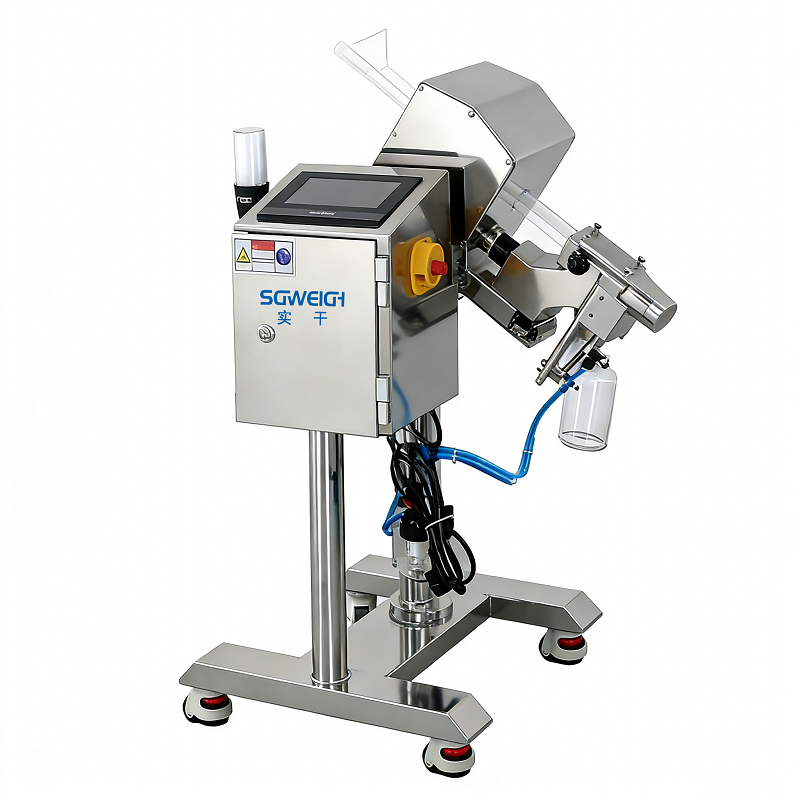

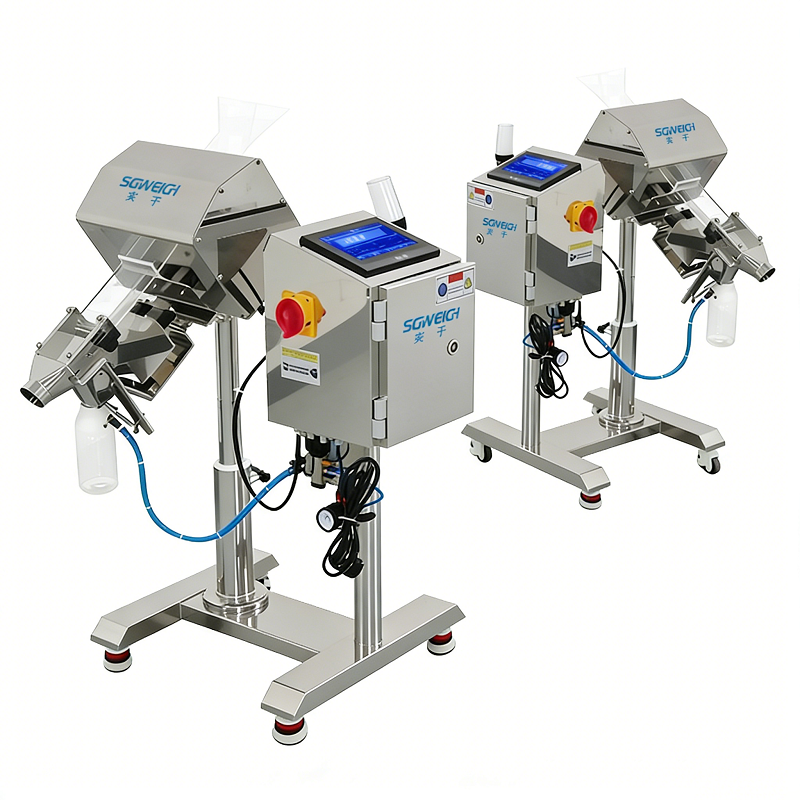

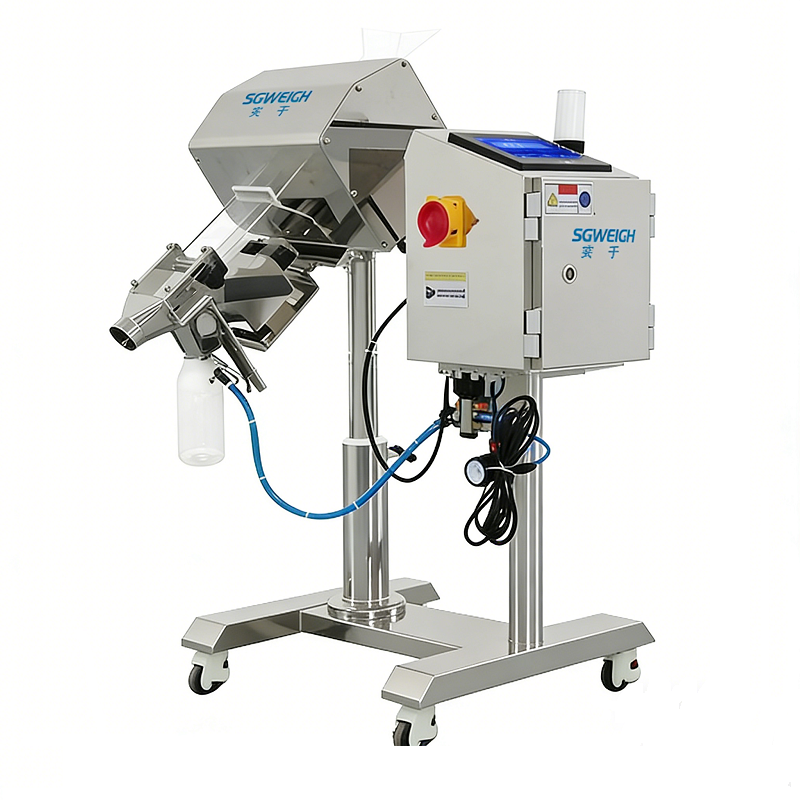

The Capsule Metal Detector is a highly sensitive foreign object detection device specifically designed for tablets, pills, compressed tablets, and capsules, effectively ensuring product quality and production safety.
This equipment typically employs a vibrating conveyor structure, combined with digital signal processing (DSP) and automatic learning algorithms, maintaining stable and reliable detection performance even in high-volume, small-tablet, and low-metal-content environments.
The Metal Detector for Tablet Pharma Production Line can be installed independently at the tablet press outlet or connected in a line with tablet checkweighers, capsule polishing machines, dust collectors, and other equipment to meet the needs of continuous production. The equipment has a compact structure, is easy to clean and maintain, and is suitable for production scenarios with high requirements for hygiene and stability.
|| Tech Specifications
Type:SG-M50
Inlet height: 770-930mm Port size: 76mm
Outlet Height: 770-860mm Port size: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Sensitivity(adjustable or not):Yes
Detection sensitivity: Fe: 0.3mm, SUS: 0.5mm,Non-Fe:0.5mm
Operation Mode:Touch Screen/LED fast key input
Machine weight: 60kg
Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
|| Main Features
1. High sensitivity for detecting ferrous, non-ferrous, and stainless steel metals.
2. Suitable for small-diameter, thin-film, and high-speed feeding applications.
3. Digital signal processing, strong resistance to product effects.
4. Automatically rejects defective tablets, reducing manual intervention.
5. Compact design, easy to integrate into existing production lines.
6. Supports continuous and stable operation, reducing false positives and false negatives.
