■ Product Overview
The 4-10 Channels Single Capsule Checkweigher is an automated online weight detection device specifically designed for small-sized, high-precision granular products. It is suitable for high-speed weighing and rejection of capsules, micro-containers, and similar individual products.
The Capsule Weight Inspection Machine has a compact structure, small footprint, and supports single-channel or multi-channel configurations, making it suitable for continuous operation on high-speed production lines.
■ Tech Specifications
Max throughput (10 lanes)100000 capsules/h
Max throughput (20 lanes)200,000 capsules/h
Max throughput (30 lanes)300,000 capsules/h
Weigh range:2-2000 mg
Highest sorting accuracy:±0.5mg
Scale interval:0.1 mg
Product size : Capsule No. 000 to 5.
Power supply:AC-220V±10%, 50HZ
Compressed air:0.3-0.9Mpa
■ Main Features
1. Single-Capsule Dynamic Weighing: Supports high-speed online weighing of single capsules, offering high accuracy and stable repeatability.
2. High-Speed Processing Capacity: Adaptable to high-cycle production lines, enabling continuous automatic checkweighing and sorting.
3. Multiple Channels Available: Supports 4–10 channels or even more, increasing overall production capacity.
4. Intelligent Weight Grading: Allows setting multiple weight ranges for automatic classification of qualified, underweight, and overweight products.
5. Automatic Rejection System: Utilizes an air-blowing method for fast rejection response without damaging the product.
6. Touchscreen Human-Machine Interface: Equipped with a color touchscreen for intuitive parameter settings and supports product formula storage.
7. Modular Design: Facilitates maintenance and cleaning, and supports quick replacement of standard parts.
■ Application
■ Customers
■ Exhibitions
■ Packaging & Delivery

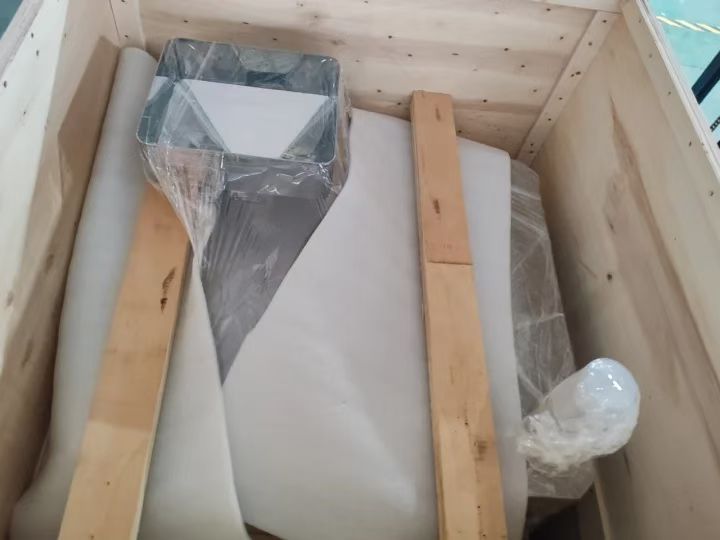

Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
