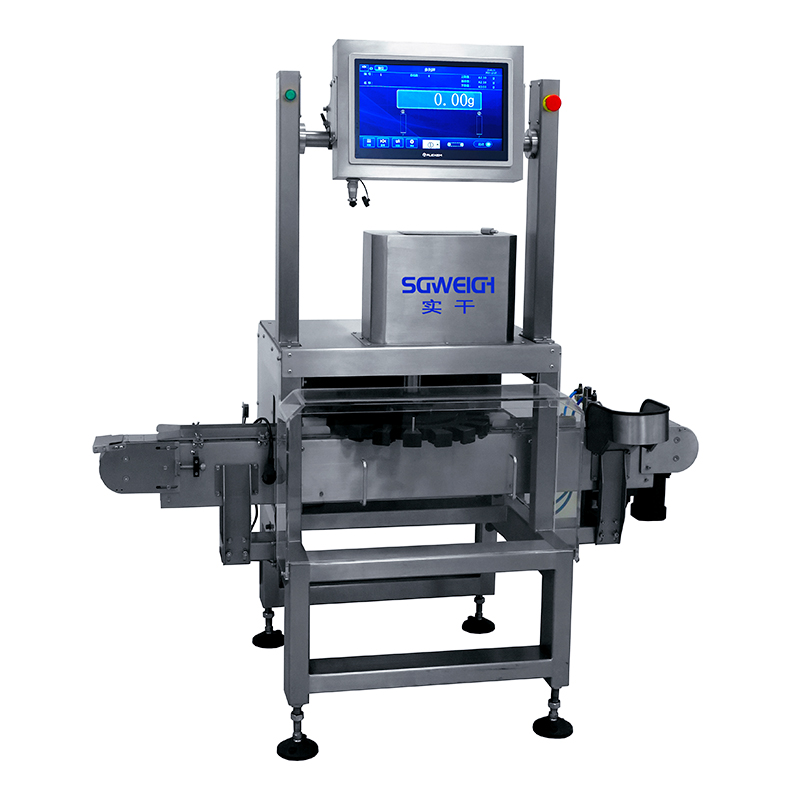

■ Product Overview
This Rotary Checkweigher enables continuous, high-speed, and stable online weighing within a limited space. Through an independent weighing station and a stable guiding structure, it effectively reduces the shaking and vibration of glass bottles during transport and weighing, ensuring excellent weighing repeatability even at high speeds.
The human-machine interface displays weight data, statistical reports, and alarm information in real time, facilitating quality management and production monitoring.Liquid Bottles Checkweigher can seamlessly integrate with bottling production lines such as filling machines, capping machines, and labeling machines.
■ Tech Specifications
Model: SG-Z2 (dual channel)
Weighing range: 2-300g
Minimum scale: 0.01g
Sorting accuracy: ±0.02 grams (depending on the product)
Sorting speed: maximum 50 pieces/minute (single channel)
Conveying speed:0-50m/min
Operation mode: touch operation
Conveying direction: Facing the touch screen from left to right
Rejection method: air blowing removal/push plate removal
Belt height from the ground: 750±50mm (can be customized according to customer requirements)
Machine structure: stainless steel (SUS304)
Power supply: 220V 50-60HZ
Power: about 1500W
Windshield: thick acrylic (to avoid airflow interference)
Working environment: Temperature: 0℃～40℃, Humidity: 30%～95%
Note: The properties and usage environment of the tested products are different, and the detection speed and accuracy are also different. The actual test is used as the standard.
■ Main Features
1. Rotary structure effectively separates bottles, suitable for stable glass bottle inspection.
2. High-precision weighing sensor, suitable for small-dose liquid inspection.
3. Dynamic weighing compensation algorithm reduces errors during high-speed operation.
4. Automatic overweight/underweight rejection system.
5. Supports continuous high-speed production line online inspection.
6. Adaptable to multiple bottle sizes, easy to change bottle types.
7. Data recording and statistical functions support quality traceability.
■ Application
Pharmaceutical industry (oral liquids, syrups, injections).
Pharmaceutical packaging production line.
Health supplement and nutritional liquid production.
High-value liquid product filling and testing.
■ Customers
■ Exhibitions
■ Packaging & Delivery
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
