■ Product Brief

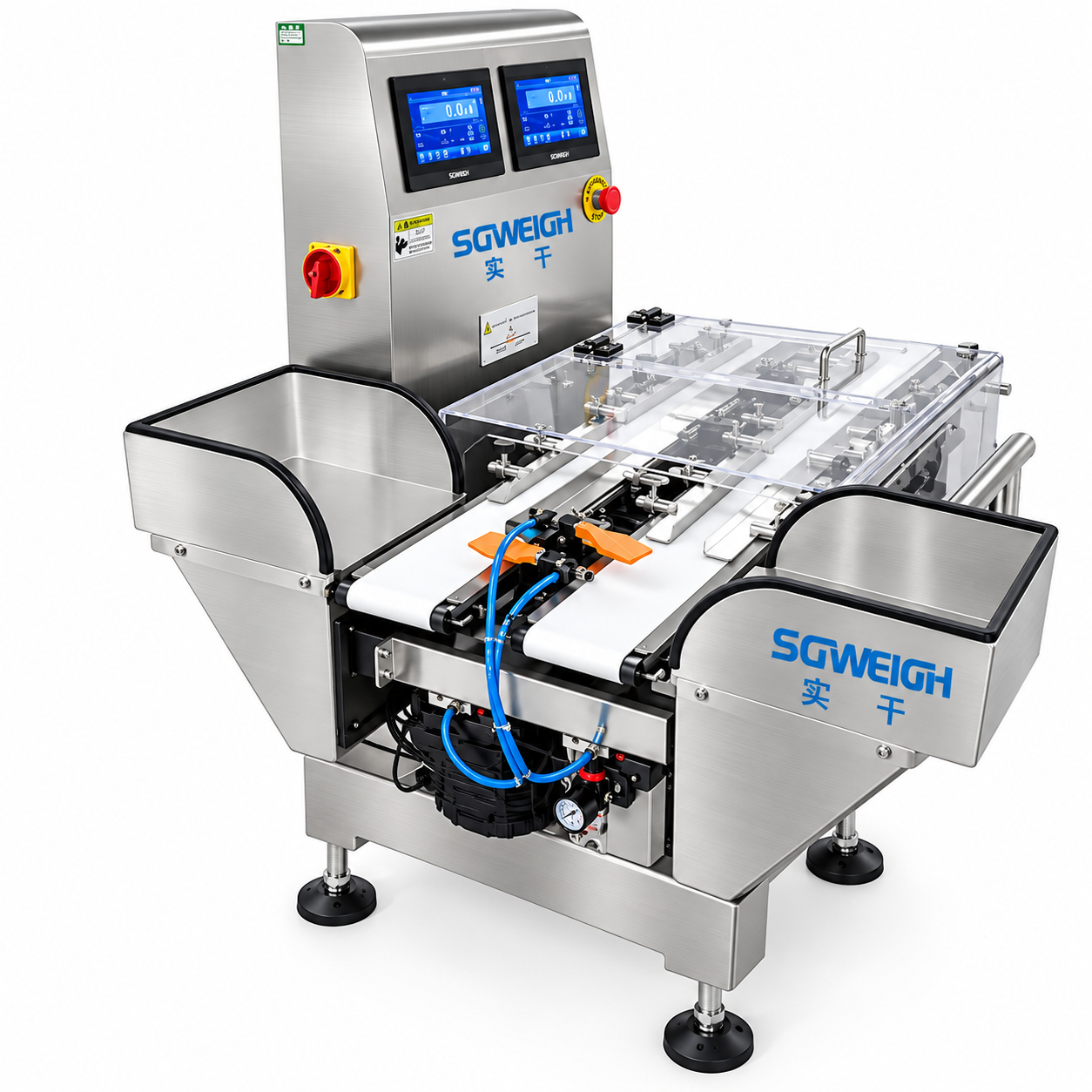

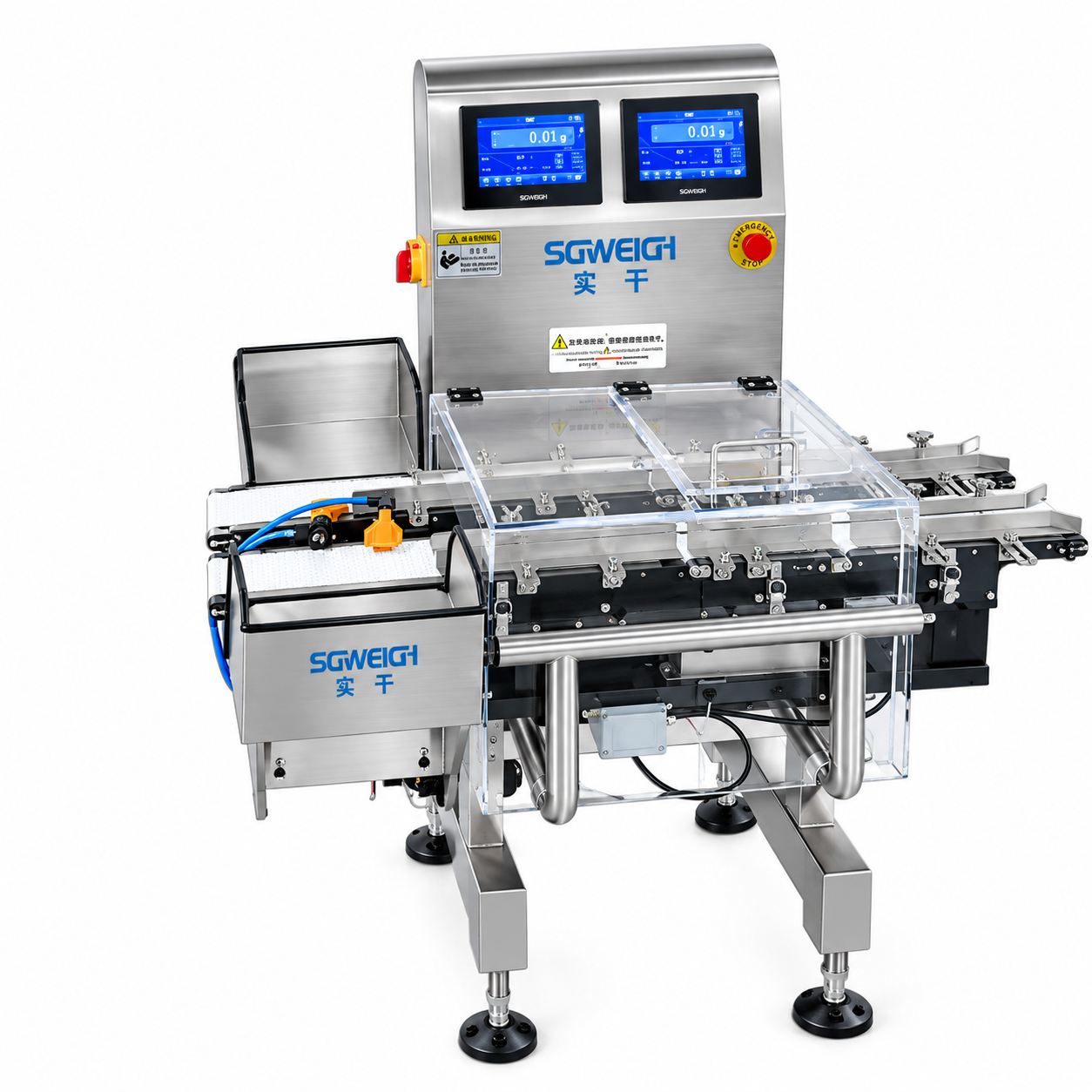

The 2-channel Pharmaceutical Blister Pack Checkweigher is an automatic in-line weighing system designed to inspect the weight of tablet and capsule blister packs during pharmaceutical packaging. Featuring two independent product handling channels, the system enables parallel weight inspection to help improve packaging line efficiency while maintaining consistent quality control.

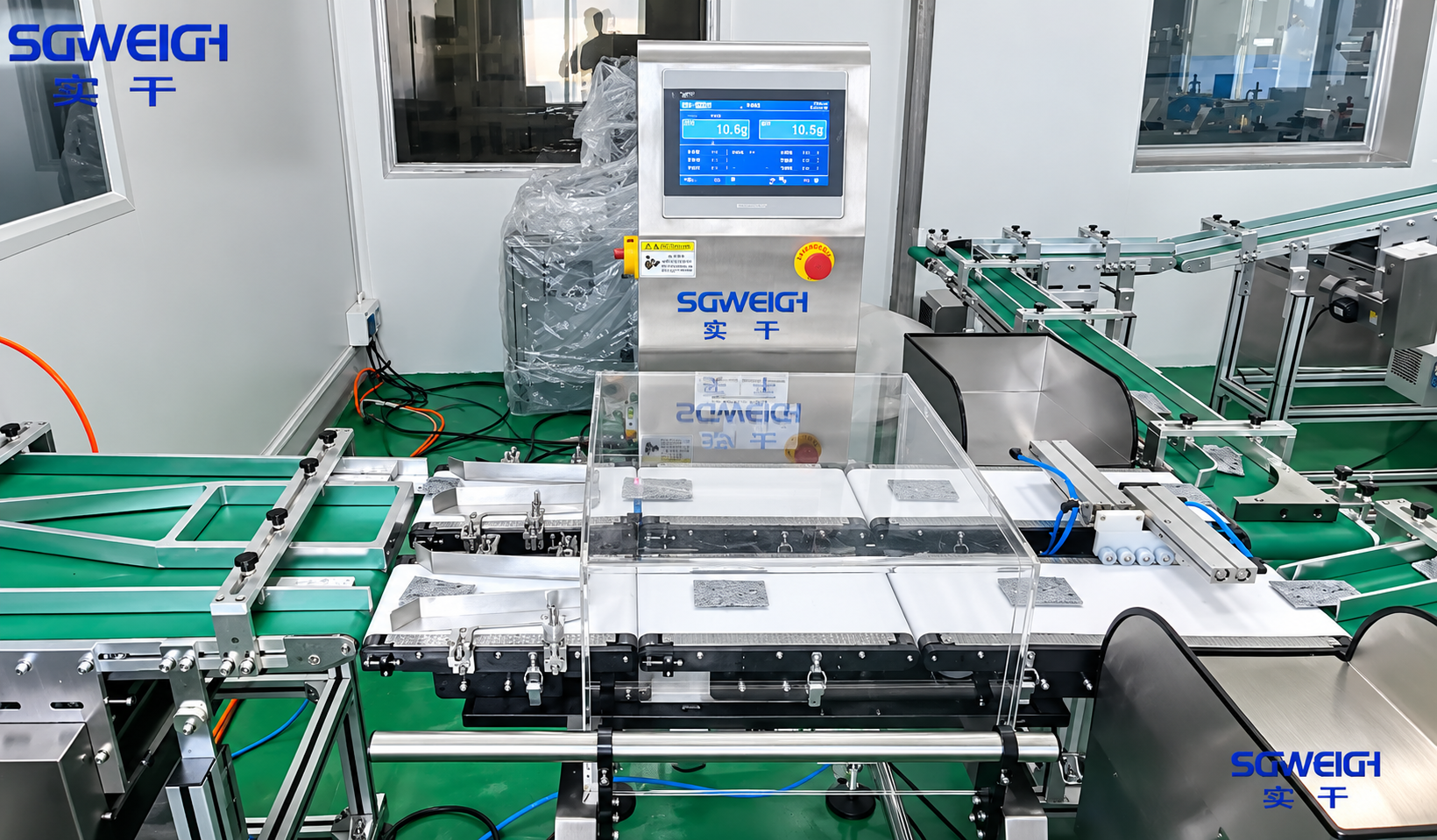

Designed for integration into pharmaceutical blister packaging lines, this dual-lane Checkweigher dynamically measures the weight of individual blister packs as they pass through the weighing section. The measured weight is compared with predefined target weight limits, allowing the system to identify products that fall outside the configured acceptance range.
■ Technical Data
| Model | SG-2X |
| Weighing range | 1-100g |
| Product restrictions | L:180 W-40 H:2-20(mm) |
| Sorting accuracy | ±0.01g/0.1g (Depends on products) |
| Graduation value | 0.01g/0.1g |
| Max speed | 70 pcs/min (one channel) |
| Belt width | 100mm (customizable) |
| Machine weight | about 80kg |
| Power supply | AC220V±10%50HZ |
| Power | about 200W |
| Main material | SUS304/316 |
■ Product Highlights
1.Dual-channel weight inspection: Processes blister packs through two parallel lanes to support efficient in-line quality control.
2.Dynamic weighing: Measures individual blister pack weight while products move along the production line.
3.Configurable weight limits: Compares measured values against preset target weights and upper and lower tolerance limits.
4.Automatic product rejection: Can be configured to remove products outside the specified weight range.
5.Pharmaceutical packaging integration: Designed for connection with compatible blister packing and downstream handling equipment.
6.Production data management: Depending on the configuration, weighing results and production statistics can be recorded for quality monitoring and process analysis.
7.Flexible configuration: Weighing range, conveyor dimensions, rejection method, and operating speed can be selected according to application requirements.
■ Industry Applications
■ Company Profile
■ Cooperative Clients
■ Exhibition
■ Package & Logistics
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
