◆ Product Overview
The Pharmaceutical Metal Detector is designed to detect metallic contaminants in pharmaceutical and nutraceutical production processes. It provides an automated inspection solution for hard-shell capsules, tablets, and other solid-dose products, helping manufacturers improve product safety, quality control, and production consistency.
Using advanced metal detection technology, the Metal Detector for Hard-Shell Capsules can identify ferrous metals, non-ferrous metals, and stainless steel contaminants, depending on the machine configuration and application conditions. It is suitable for integration into capsule filling lines, tablet production lines, dedusting processes, and downstream pharmaceutical inspection systems.
◆ Technical Parameters
| Type | SG-MC70 |
| Inlet height | 770-930mm Port size: 76mm |
| Outlet Height | 770-860mm Port size: 51mm |
| Effective passing size | W70*H20mm |

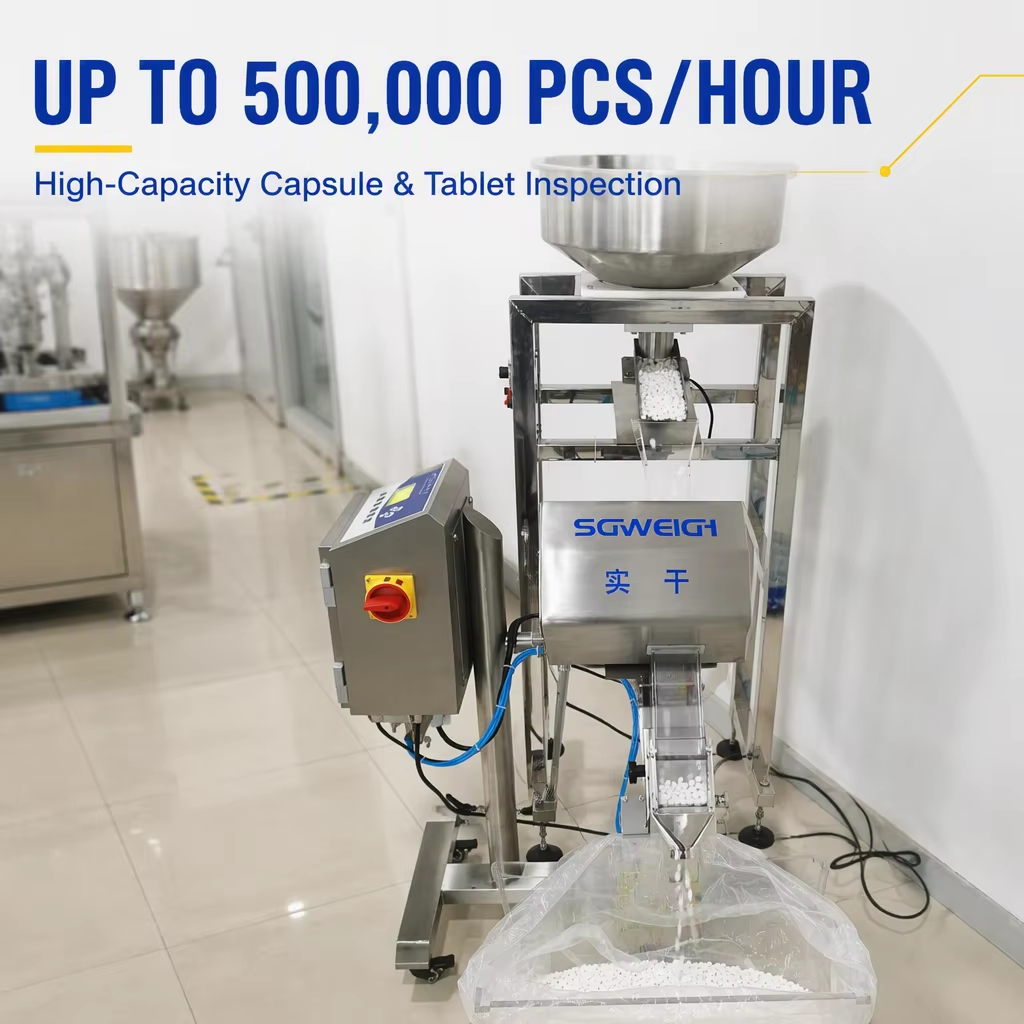

| Maximum production capacity | 500,000 pcs/hour |
| Sensitivity(adjustable or not) | Yes |
| Operation Mode | Touch Screen/LED fast key input |
| Removal method | flip culling |
| Working voltage | 220V/110V, 50/60HZ |
| Protection class | IP65 |
◆ Key Advantages
1.High-Sensitivity Metal Detection
Detects ferrous, non-ferrous, and stainless steel metal contaminants, subject to the selected machine’s validated performance and operating conditions.

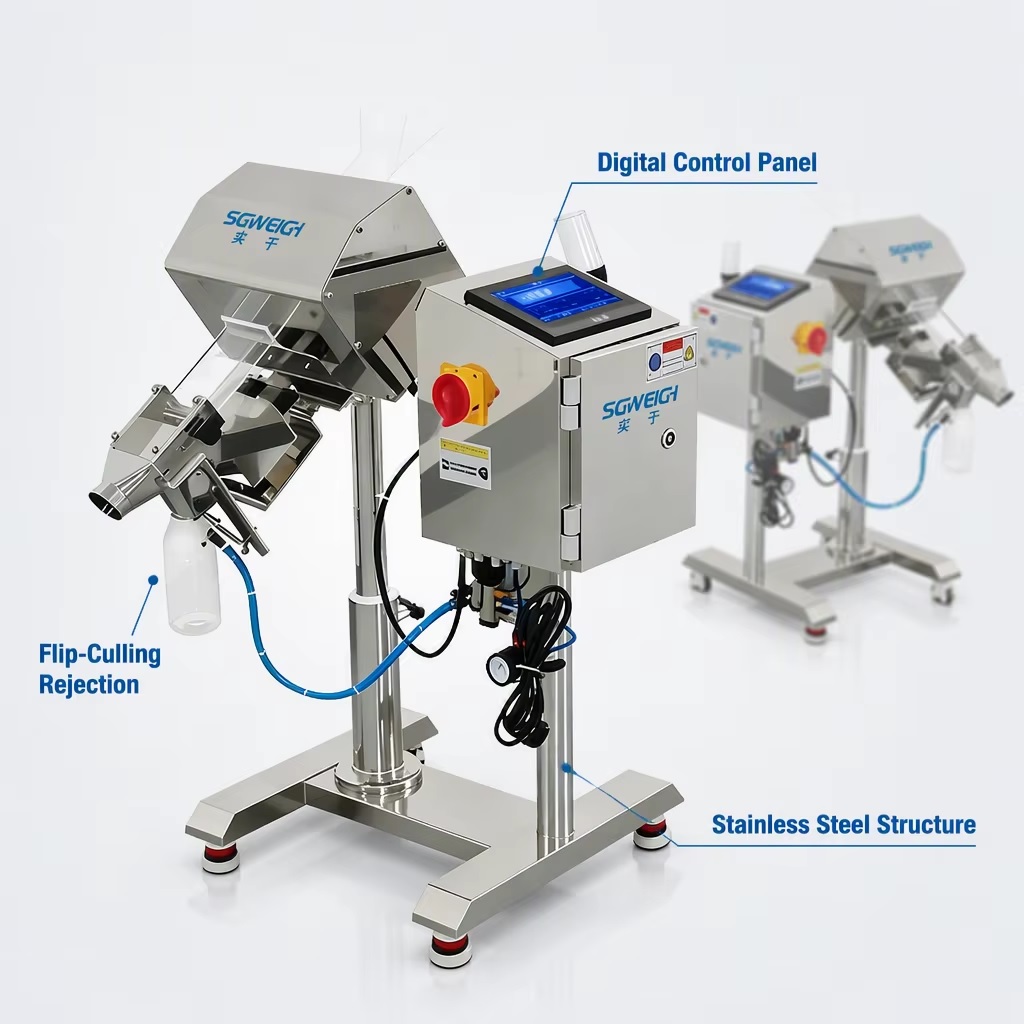

2.Automatic Contaminated Product Rejection
Can be equipped with a suitable rejection system to automatically divert products identified as contaminated, helping prevent them from entering subsequent production stages.
3.Hygienic Pharmaceutical Design
Stainless steel construction and easy-clean components can support hygienic production environments. The exact material grade and cleaning design should be confirmed according to the equipment specification.
4.Product-Specific Parameter Configuration
Detection settings can be adjusted according to the inspected product and production conditions. Product learning, interference reduction, and sensitivity verification depend on the selected model.

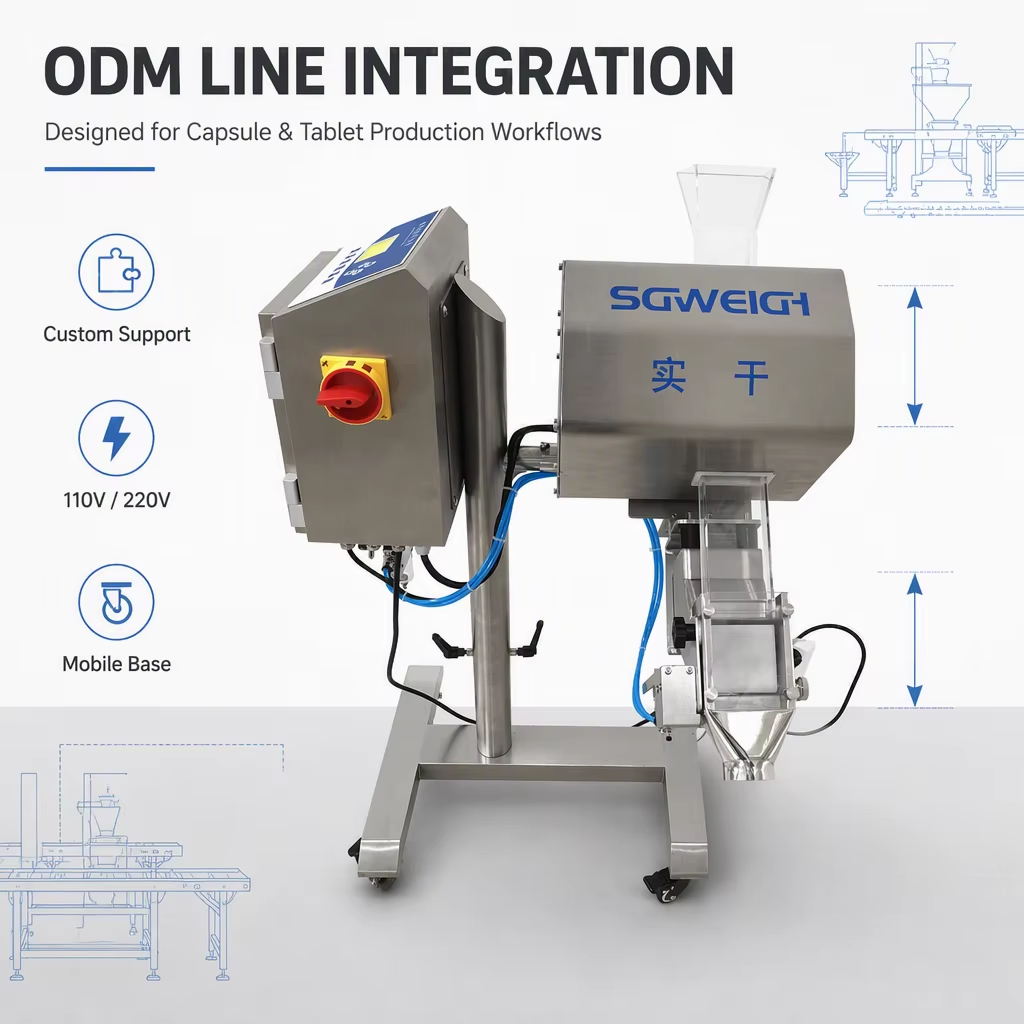

5.Production Line Integration
Suitable configurations can be integrated with capsule filling machines, tablet presses, dedusters, and other pharmaceutical processing equipment.
◆ Application Scope
◆ About Us
◆ Client Cases
◆ Exhibition Events
◆ Packaging & Shipping
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
