■ Product Brief

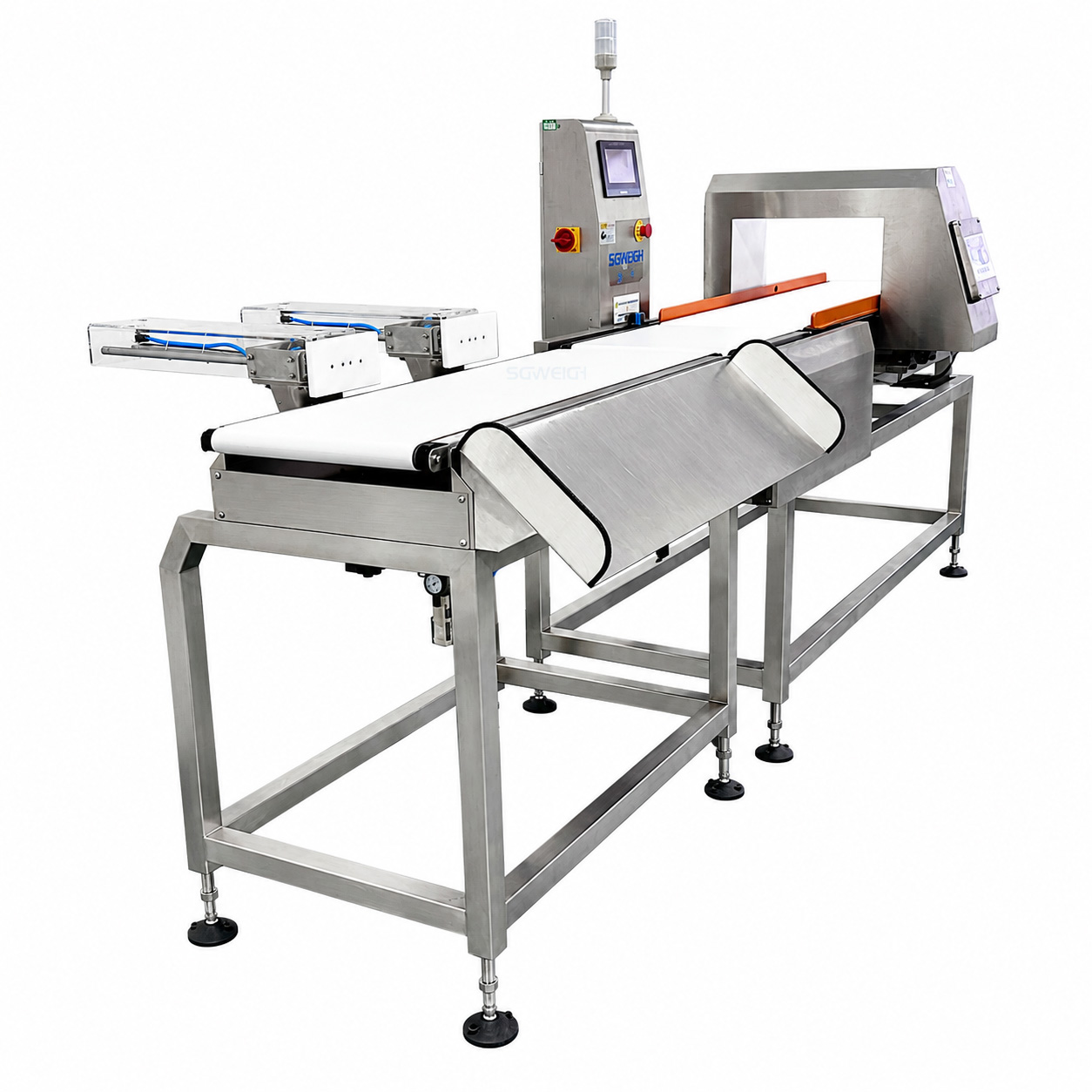

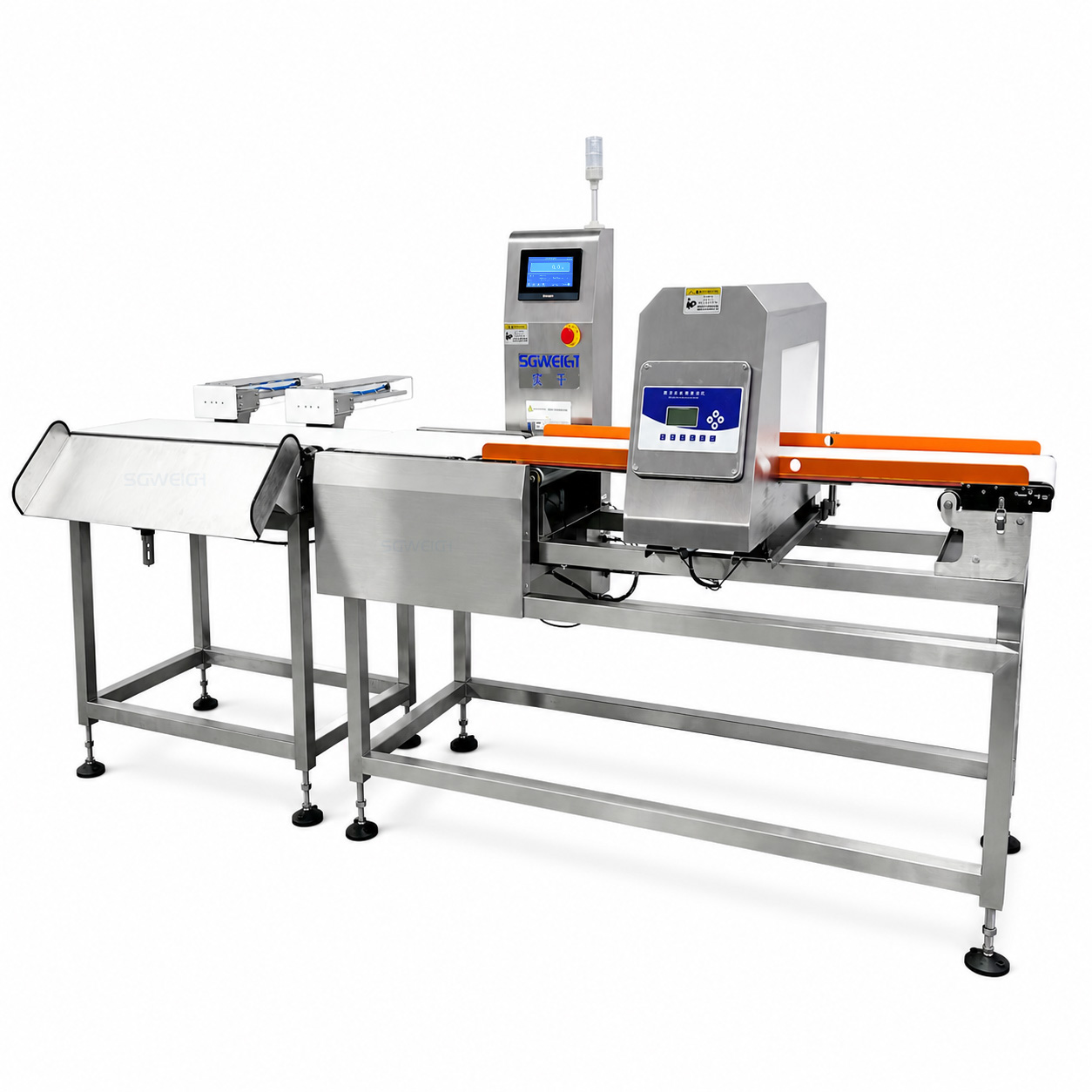

The Checkweigher + Metal Detector Combo is an integrated quality inspection solution designed for high-speed packaged freeze-dried fruit production lines. By combining dynamic weight inspection and high-sensitivity metal detection into one compact system, it performs 100% online inspection of every package before shipment.
The system automatically verifies product weight while detecting ferrous, non-ferrous, and stainless-steel contaminants. Products that are underweight, overweight, or contaminated are automatically rejected without interrupting production.
■ Technical Data
| Type | SG-JS150 | ||
| Detection of hole width | 150mm | Inspection of height | 100-200mm |
| Detection sensitivity | in the empty state:
H 100mm：Fe ≥φ0.8mm，SUS ≥φ1.2mm H 120mm：Fe ≥φ1.0mm，SUS ≥φ1.8mm H 150mm：Fe ≥φ1.2mm，SUS ≥φ2.0mm H 200mm：Fe ≥φ1.5mm，SUS ≥φ2.5mm |
||
| Weighing scale range | 5–500g | ||
| Weighing accuracy | ±0.1g（Depends on products） | ||
| Conveyor height | 750mm (±50mm) | ||
| Transmission capacity | 10 kg/time | ||
| Conveyor belt maximum speed | 25m/min | ||
| Protection grade | IP65 | ||
| Display and operation mode | LCD flat-panel keypad input / Touchscreen | ||
| Power supply requirements | AC 220V 50HZ | ||
| Power | ≈300W | ||
■ Product Highlights
1.Integrated dynamic checkweigher and metal detector in one machine.
2.Simultaneous weight verification and metal contamination inspection.
3.Detects ferrous, non-ferrous, and SUS304/316 stainless steel contaminants.
4.Automatic reject system for non-conforming products.
5.High-speed continuous inspection without slowing production.
6.High-precision load cell for stable weighing accuracy.
7.User-friendly touchscreen with multi-language interface.
8.Stainless steel 304 construction for hygienic food processing.
9.Recipe memory for quick product changeovers.
10.Data logging and production statistics for quality traceability.
11.Easy integration into existing freeze-dried fruit packaging lines.
12.Low maintenance design with reliable long-term operation.
