◆ Product Overview

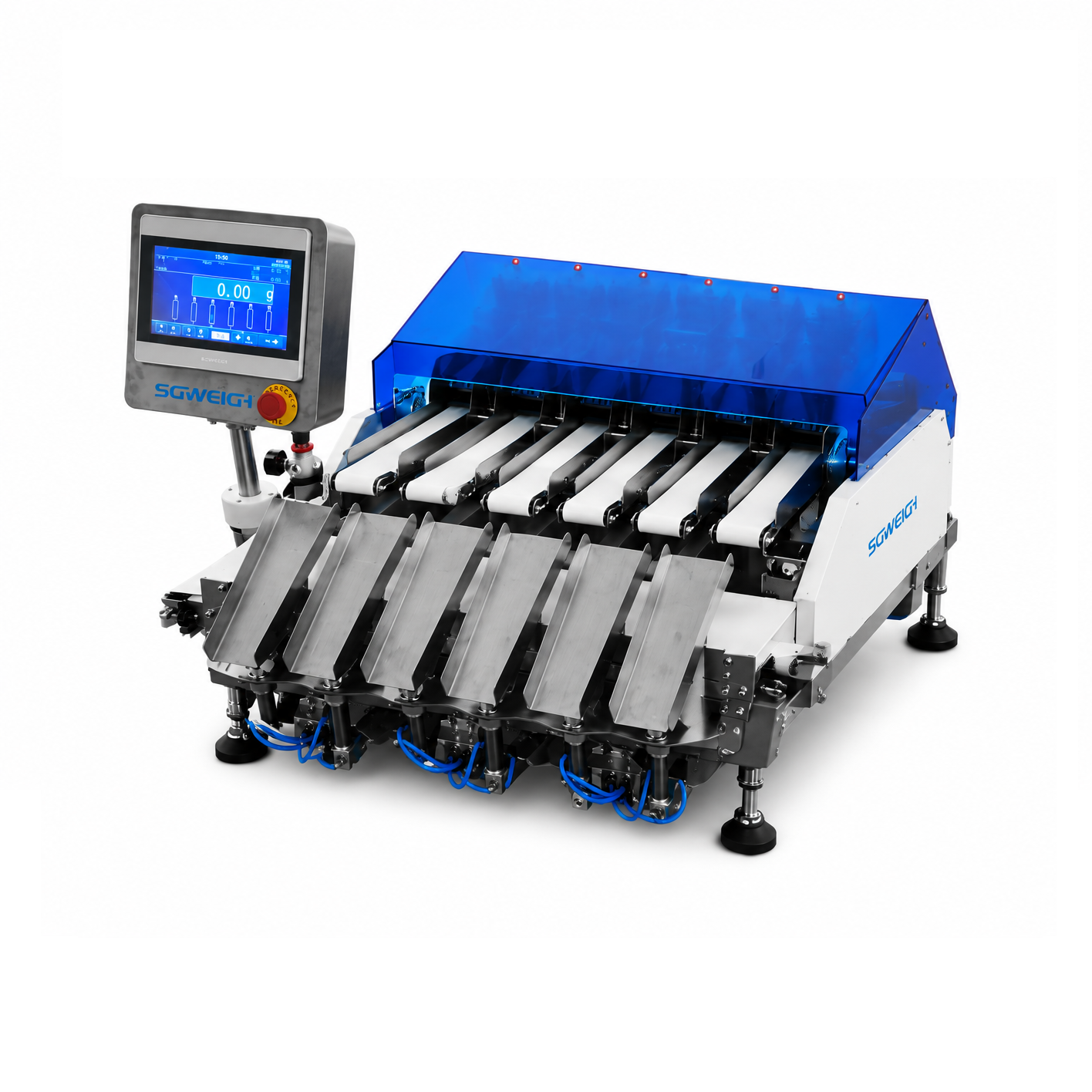

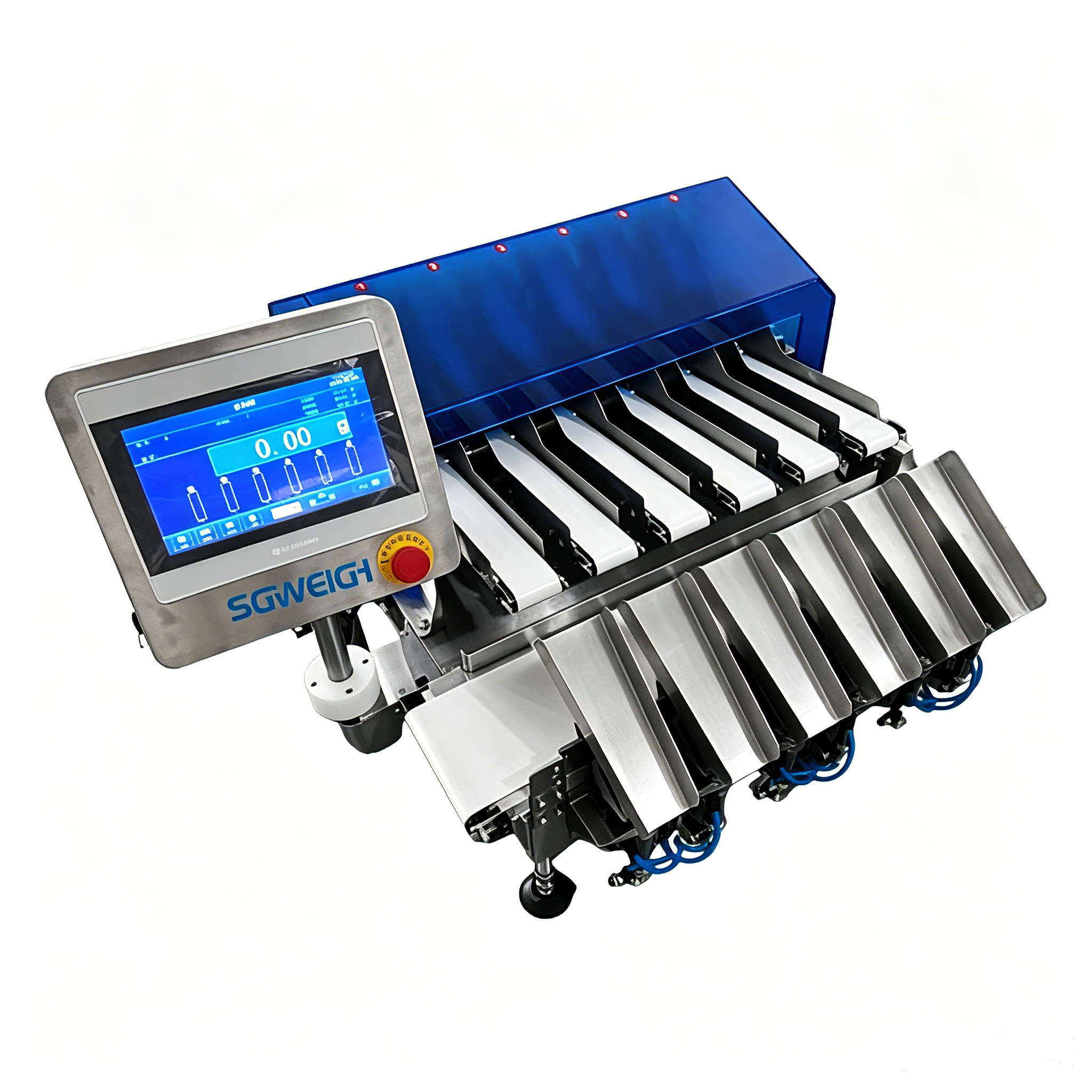

A 6-Lane Sachet Checkweigher is a high-precision dynamic weighing system designed for automatic weight inspection of sachets, stick packs, and other small flexible packages.Inline Sachet Weight Checker is installed directly after multi-lane packaging machines to perform 100% inline weight verification, ensuring every sachet meets the required weight specification before entering the next production stage.
Featuring six independent weighing lanes, each equipped with a dedicated high-accuracy load cell,the system simultaneously inspects products from all packaging lanes while maintaining exceptional weighing precision. Underweight, overweight, empty, or partially filled sachets are automatically detected and rejected without interrupting production, improving product quality, reducing material giveaway, and ensuring regulatory compliance.
◆ Technical Parameters
| Model | SG-6X |
| Weighing Range | 1-50g |
| Accuracy | 0.01 gram (depending on the product) |
| Sorting Speed | 40-70pcs/min (one lane) |
| Conveying Speed | 20-100m/min |
| Operation Method | Touch operation |
| Elimination Method | Lifting Rejection |
| Machine Structure | Stainless steel (SUS304) |
| Power Supply | 220V 50-60HZ |
| Power | About400W |
| Windshield | Thick acrylic (to avoid airflow interference) |
◆ Key Advantages
1.Six independent weighing channels for simultaneous inspection.
2.High-precision digital load cells with accuracy up to ±0.01 g.
3.100% online dynamic weight inspection.
4.Automatic rejection of underweight, overweight, empty, or missing-fill sachets.
5.Individual reject control for each weighing lane.
6.Centralized touchscreen HMI for recipe management and parameter setting.
7.Real-time production statistics and weight trend monitoring.
8.USB/Ethernet data export for quality traceability.
9.SUS304 stainless steel construction for hygienic production.
10.Quick product changeover with stored product recipes.
11.Compatible with VFFS and multi-lane stick pack packaging machines.
12.Easy integration with upstream packaging equipment and downstream cartoning systems.
◆ Application Scope
- Powder sachets
- Coffee sticks
- Sugar sachets
- Salt sachets
- Beverage powder sachets
- Nutritional supplement sachets
- Protein powder sticks
- Pharmaceutical sachets
- Herbal medicine sachets
- Cosmetic sample sachets
- Seasoning sachets
- Instant drink sticks
◆ About Us
◆ Client Cases
◆ Exhibition Events
◆ Packaging & Shipping
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
