◆ Professional Introduction

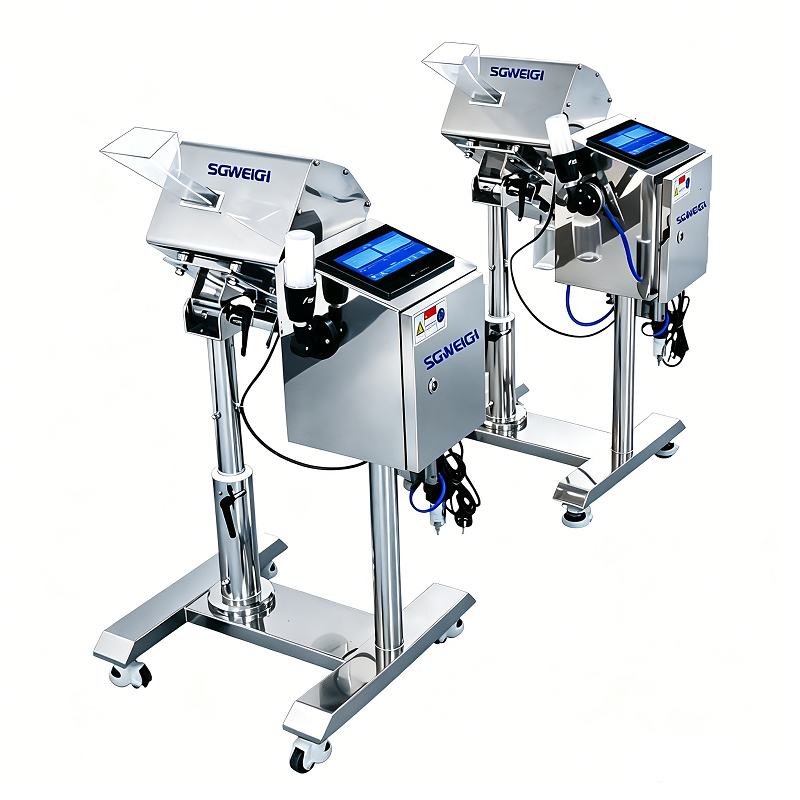

A Tablet Capsule Metal Detector is a high-precision inspection system specifically designed for the pharmaceutical industry to detect and reject metal contaminants from tablets, capsules, soft gels, and other solid dosage forms.Pharmaceutical Metal Detector plays a critical role in pharmaceutical quality control by ensuring product safety, compliance with GMP standards, and protection of downstream packaging equipment.
These systems are commonly installed after tablet presses, capsule filling machines, coating equipment, or before final packaging lines.
◆ Technical Parameters
| Type | SG-M50 |
| Inlet height | 770-930mm Port size: 76mm |
| Outlet Height | 770-860mm Port size: 51mm |
| Effective passing size | W70*H20mm |
| Maximum production capacity | 500,000 pcs/hour |
| Sensitivity(adjustable or not) | Yes |
| Detection sensitivity | Fe: 0.3mm, SUS: 0.5mm,Non-Fe:0.4mm |
| Operation Mode | Touch Screen/LED fast key input |
| Removal method | flip culling |
| Working voltage | 220V/110V, 50/60HZ |
◆ Key Advantages
1. High Detection Sensitivity
Detects ferrous, non-ferrous, and stainless-steel contaminants with exceptional accuracy, ensuring pharmaceutical product safety.
2. Pharmaceutical-Grade Design
Constructed from hygienic stainless steel materials with smooth surfaces for easy cleaning and compliance with GMP requirements.
3. Automatic Rejection System
Contaminated tablets or capsules are automatically separated from qualified products, minimizing manual intervention.
4. Compact and Space-Saving Structure
Designed to fit seamlessly into pharmaceutical production lines with minimal installation space.
5. Intelligent Digital Processing
Advanced algorithms reduce product effects and environmental interference, improving detection stability.
6. User-Friendly Touchscreen Interface
Simple operation with parameter storage, alarm history, and production data management functions.
7. Validation and Compliance Support
Supports pharmaceutical validation procedures and meets global quality assurance standards.
8. Continuous Online Inspection
Provides 100% inspection of tablets and capsules without interrupting production efficiency.
◆ Application Scope
◆ About Us
◆ Client Cases
◆ Exhibition
◆ Packaging & Shipping

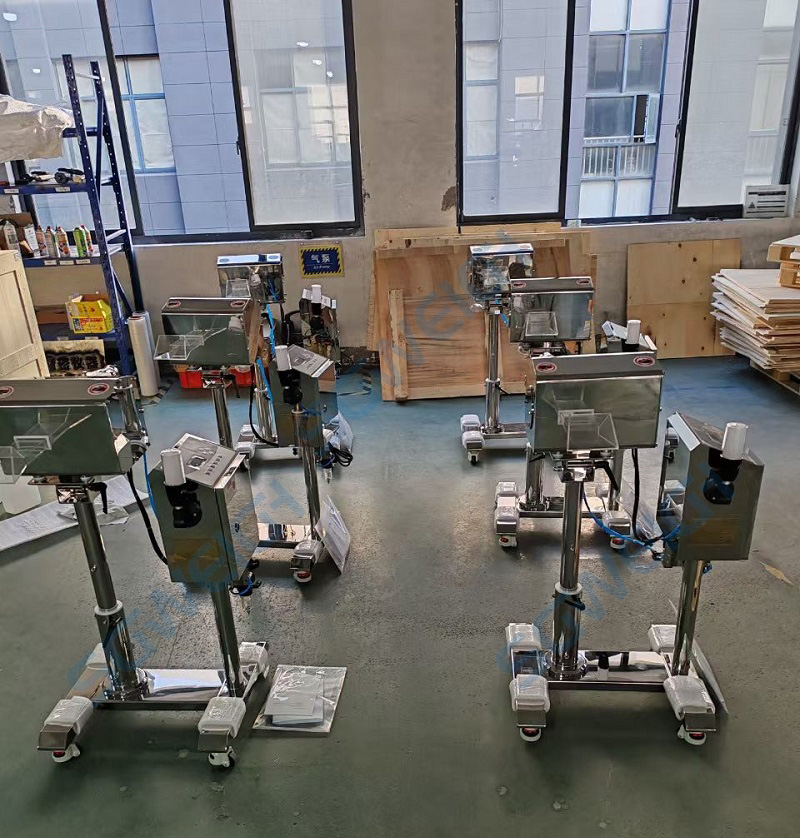

Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
