|| Product Introduction

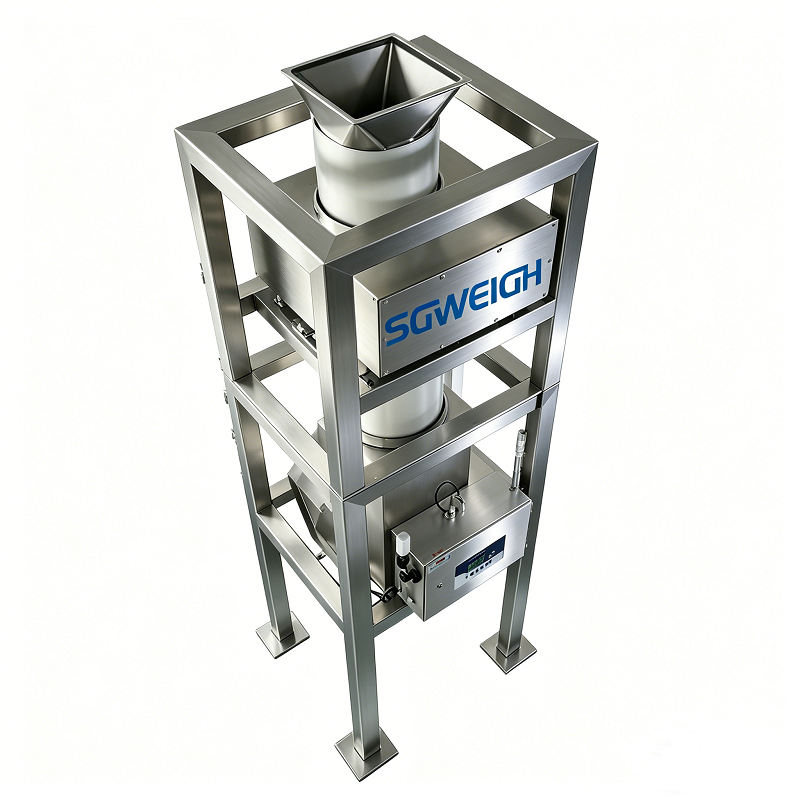

Bulk Powder Metal Detector is a highly sensitive online metal foreign object detection device designed specifically for free-flowing powders and granular materials (such as milk powder, starch, flavoring powder, chemical powder, etc.).This Food Grade Vertical Powder Metal Detector is typically installed in the gravity feeding section of the production line (such as the hopper outlet or before packaging). Utilizing the principle of gravity conveying, it allows materials to fall naturally through the detection area, achieving high-precision identification and automatic removal of ferrous, stainless steel, and non-ferrous metal contaminants.
|| Tech Specifications
| Model | Gravity-Fed Metal Detector |
| Detection sensitivity | Fe: 0.4mm, stainless steel: 0.6mm |
| Throughput: | 300kg-3000kg |
| Material of Construction: | 304 Brushed stainless steel |
| Product | Pre-packaged, free-flowing products |
| Parameter Adjustment | Auto or manual programming |
| Alarm Model | Auto rejection diversion flap |
| IP Rating | 65 |
| Machine Weight | 60kg |
|| Main Features
1. High Sensitivity Detection
Identifies ferrous, non-ferrous, and stainless steel metal impurities.
2. Gravity Flow Structure
Requires no additional conveying system; suitable for free-flowing powders.
3. Automatic Rejection System
Quickly separates contaminated products, reducing material loss.
4. Dustproof Sealed Design
Suitable for dusty environments, meeting hygiene standards.
5. Intelligent Self-Learning Function
Automatically adapts to different product characteristics, reducing false alarms.
6. Easy-to-Clean Structure
Supports quick disassembly, meeting food/pharmaceutical production requirements.
7. Stable Continuous Operation
Suitable for 24-hour online detection, improving production efficiency.
|| Application
|| Company
|| Customers
|| Exhibitions
|| Packaging & Delivery
Packaging
● All products are packed in standard export-grade packaging to ensure maximum protection during transportation.
● Each unit is wrapped with plastic film and foam, fixed firmly with inner support, and placed in a strong carton or plywood case.
● All corners and fragile parts are specially protected to prevent collision, scratch and damage.
Shipping
● We support sea freight, air freight and international express (DHL, FedEx, UPS, TNT) according to customer requirements.
● Goods will be carefully loaded and inspected before delivery.
● A complete tracking number will be provided once shipped, so you can monitor the whole logistics process.
● We cooperate with reliable forwarders to ensure safe, on-time and cost-effective delivery.
