■ Product Overview

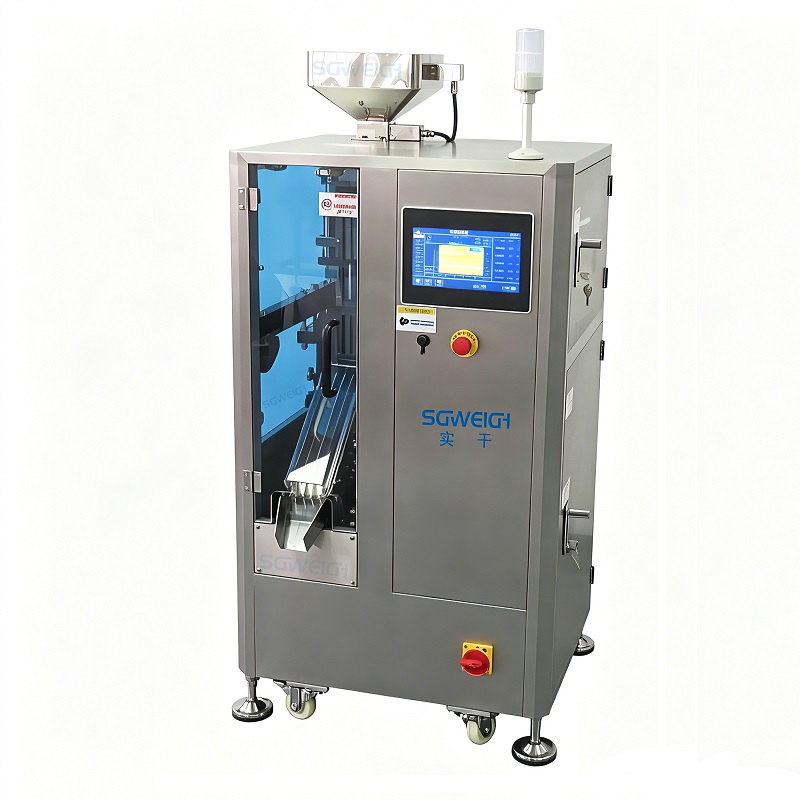

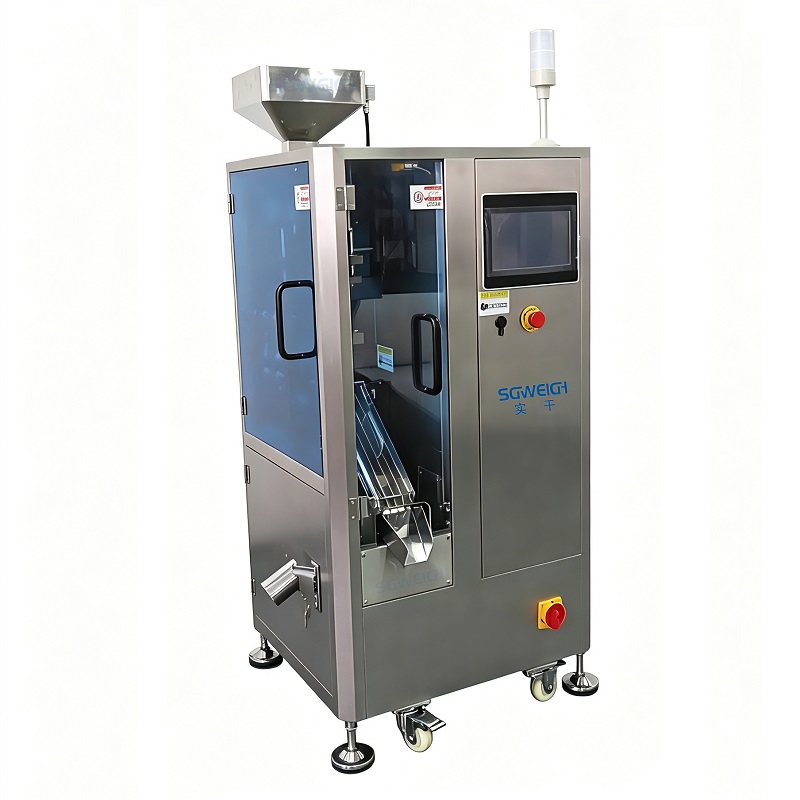

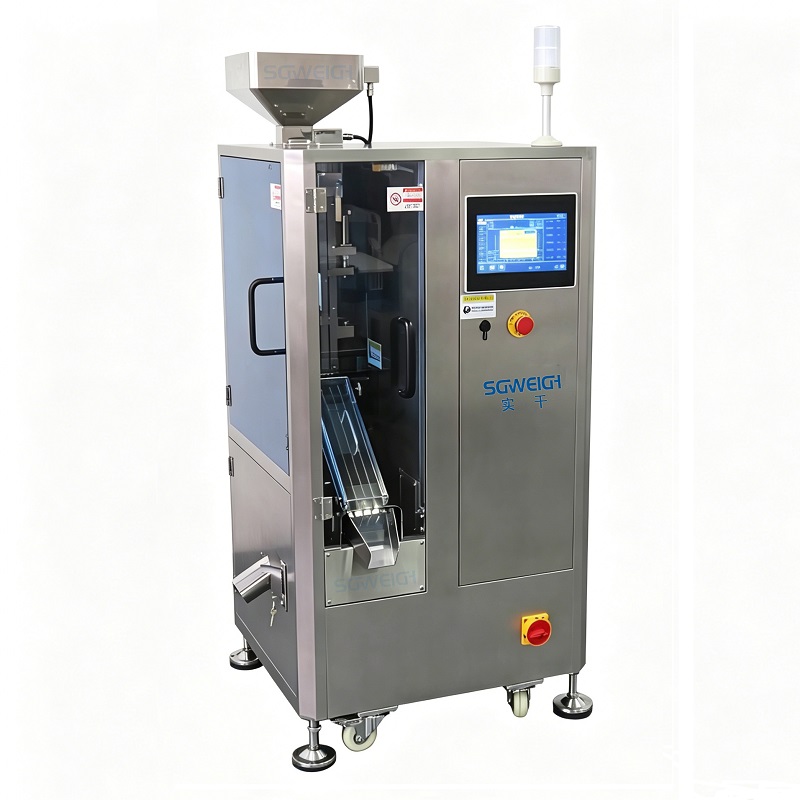

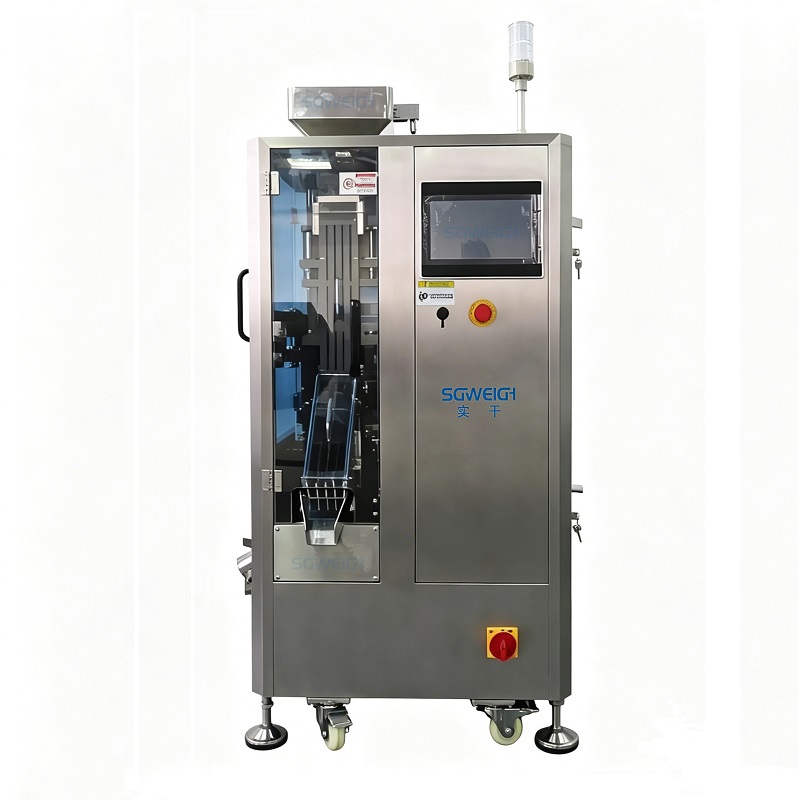

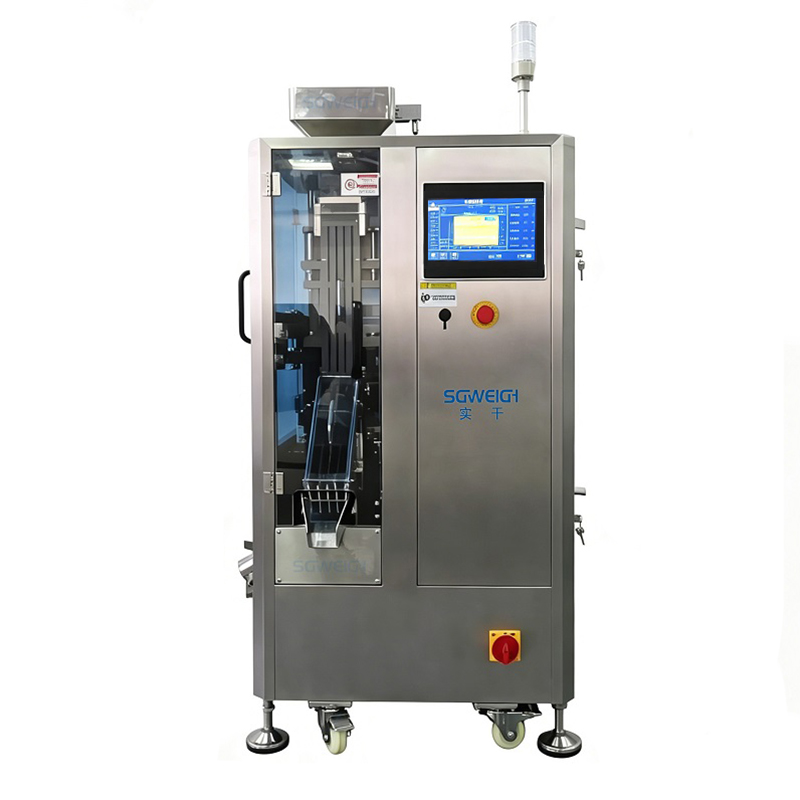

The 4-Lane Capsule Checkweigher is a high-precision online checkweighing device designed for high-speed multi-lane packaging lines in the pharmaceutical and health supplement industry. Through four independent parallel weighing channels,Capsule Checkweigher (+0.5mg) achieves 100% one-to-one inspection of capsules/tablets, automatic rejection of non-conforming products, and compliant traceability of production line data. Its core value lies in balancing ultra-high capacity and precise dosage, meeting global regulatory requirements such as FDA 21 CFR Part 11 and GMP.
■ Tech Specifications
| Type | SG-JN4 |
| Display scale | 0.1mg |
| Accuracy | ±0.5mg |
| Product specification | Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing) |
| Highest sorting ability | 40,000 PCS/HR |
| Number of columns | 4 Columns |
| Power supply | AC-220V±10%, 50HZ |
| Compressed air | 0.3-0.9Mpa |
| Use environment | 15~30°C (The temperature change during use should not exceed the range of 1°C/h.Humidity:30-70%(but no condensation) |
| Shell material | SUS304/316 |
■ Main Features
1. High-Precision Weighing
Equipped with a high-precision weighing sensor, it accurately measures the weight of individual capsules, with an accuracy down to the milligram level.
2. Multi-Specification Weighing
The capsule weighing machine uses a mold-changing method to weigh capsules or tablets of different specifications individually after processing.
3. Offline and Online Weighing
It can perform offline weighing or online weighing with tableting machines or filling machines.
4. Access Control
The equipment’s interface operating system features a three-level access control system, allowing for different permissions to be set for different personnel.
5. Automated Operation
It can automatically complete the processes of capsule feeding, weighing, sorting, and rejecting defective products, reducing manual operation and improving production efficiency.
6. Rapid Detection
It has a fast detection speed, adaptable to high-efficiency production lines, ensuring that it does not affect the overall production process.
7. Sorting Function
Based on preset weight standards, the equipment can automatically separate defective capsules (overweight or underweight) from qualified products.
8. Data Recording and Traceability
Capable of recording weighing data, facilitating product quality traceability and statistical analysis.
■ Application
■ Company
■ Customers
■ Exhibitions
■ Packaging & Delivery
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
