■ Product Overview

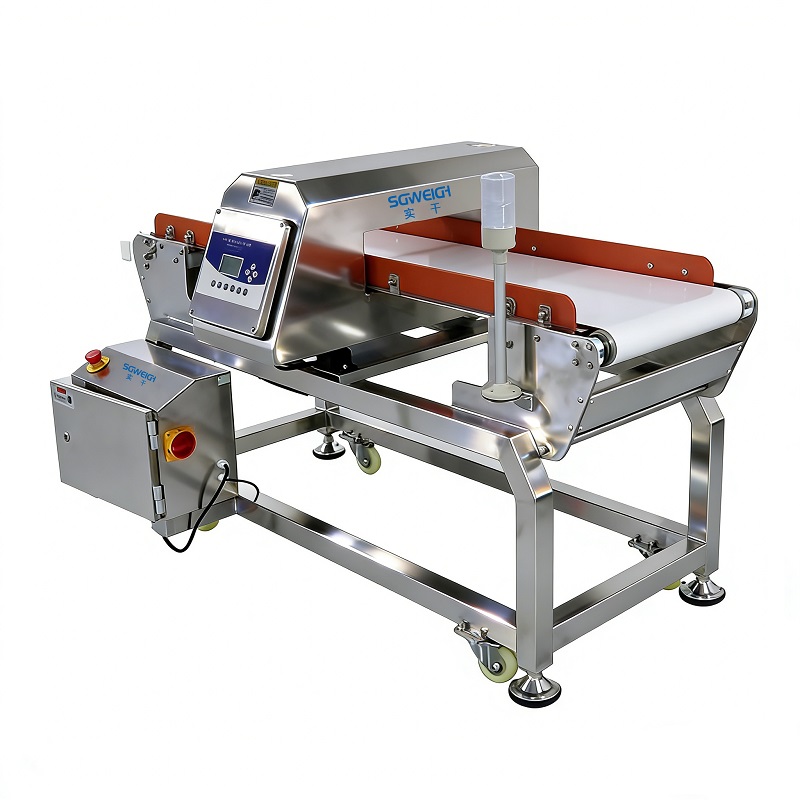

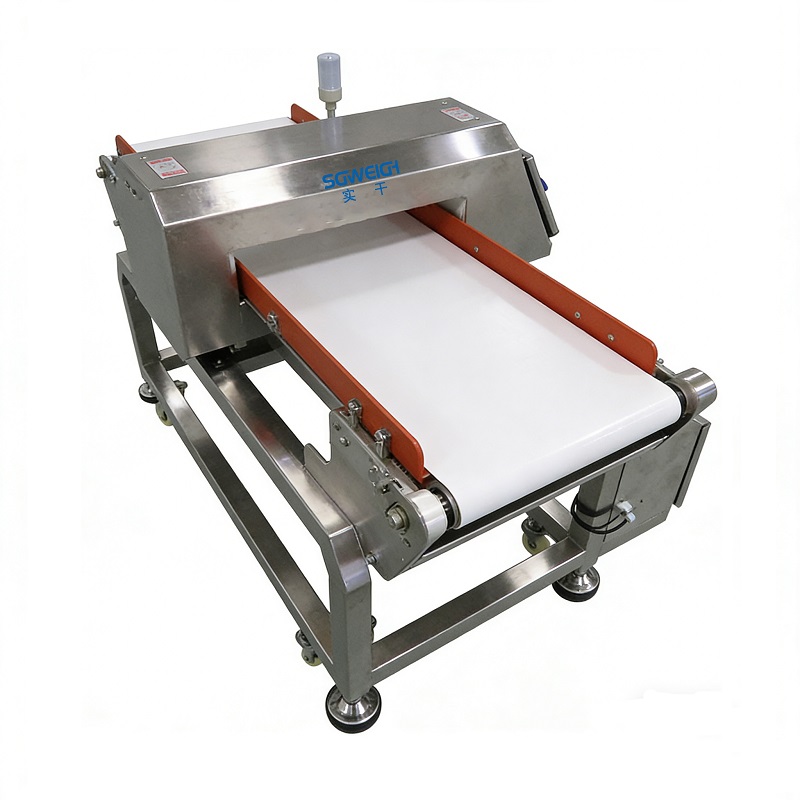

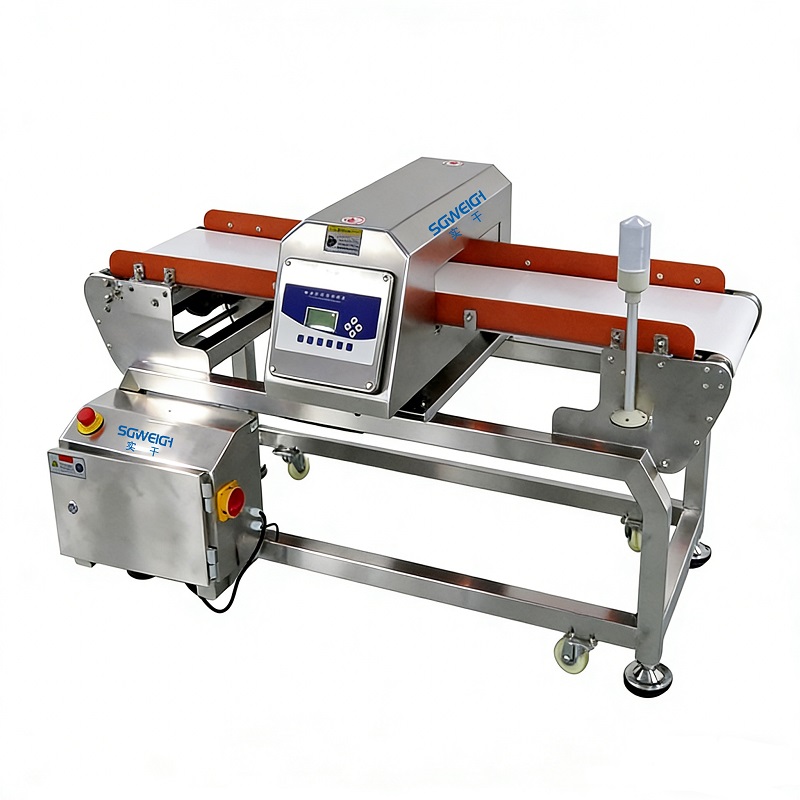

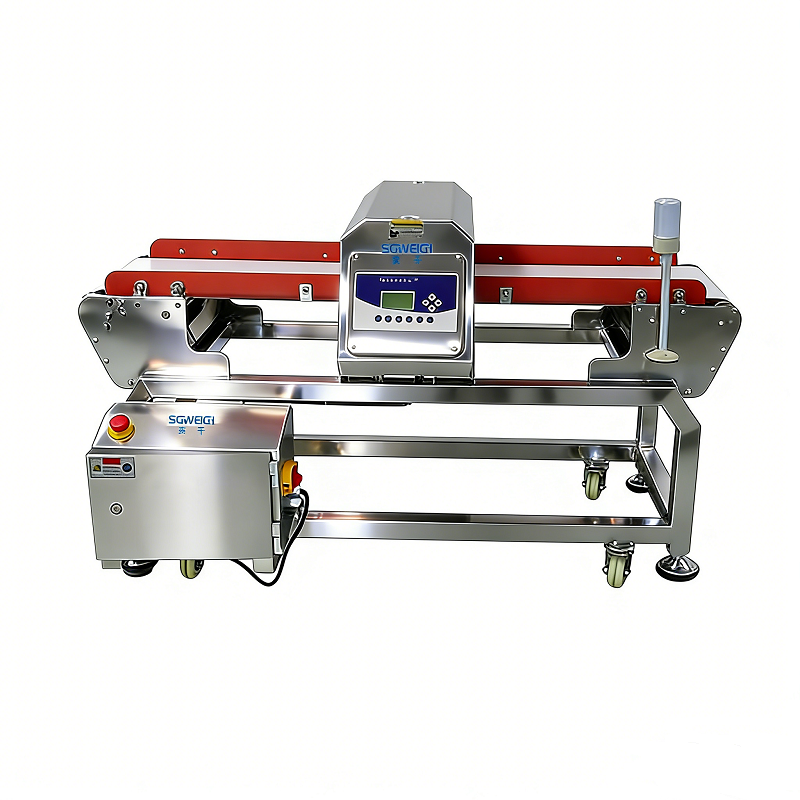

A Conveyor Metal Detector is an advanced inspection system widely used in industries such as food processing, pharmaceuticals, packaging, and plastics.
Equipped with high-sensitivity sensors, digital signal processing, and intelligent rejection systems, it ensures product safety, regulatory compliance, and brand protection. Auto Learning Metal Detector can be seamlessly integrated into production lines for real-time, continuous inspection without interrupting workflow.
■ Tech Specifications
| Type | SG-M400 |
| Detection sensitivity: in empty state | H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mmH-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm |
| Effective detection hole width | 150-1000mm customized according to requirements |
| Effective detection hole height | 80-500mm customized according to requirements |
| Maximum speed of conveyor belt | 25m/min |
| Conveyor belt material | food grade PU belt |
| Display and operation mode | LED fast key input/Touchscreen |
| Power requirements | AC220V 50HZ |
| Alarm mode | metal detection, alarm belt stop or automatic removal |
| IP Rating | 65 |
■ Main Features
● High sensitivity detection for Fe, Non-Fe, and SUS metals.
● Automatic rejection system (air blast, pusher, drop flap).
● Real-time continuous inspection on conveyor line.
● User-friendly touchscreen with multi-language support.
● Product memory for fast switching between SKUs.
● Anti-interference technology for stable performance.
● Hygienic design for food & pharma applications.
● Data logging & traceability support.
■ Application
■ Company
■ Customers
■ Exhibitions
■ Packaging & Delivery
Packaging
● All products are packed in standard export-grade packaging to ensure maximum protection during transportation.
● Each unit is wrapped with plastic film and foam, fixed firmly with inner support, and placed in a strong carton or plywood case.
● All corners and fragile parts are specially protected to prevent collision, scratch and damage.
Shipping
● We support sea freight, air freight and international express (DHL, FedEx, UPS, TNT) according to customer requirements.
● Goods will be carefully loaded and inspected before delivery.
● A complete tracking number will be provided once shipped, so you can monitor the whole logistics process.
● We cooperate with reliable forwarders to ensure safe, on-time and cost-effective delivery.
