■ Product Overview

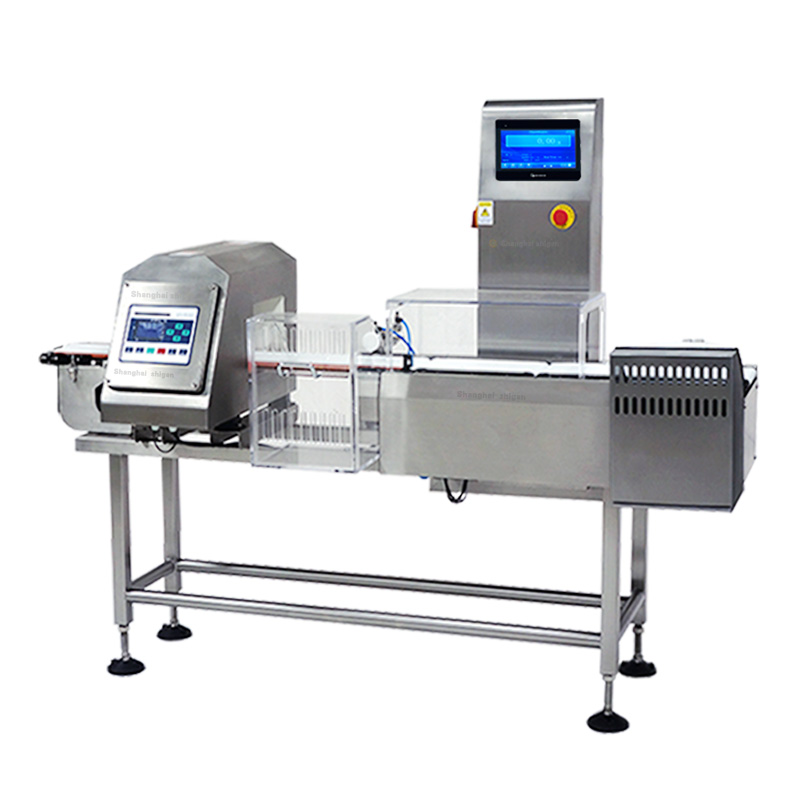

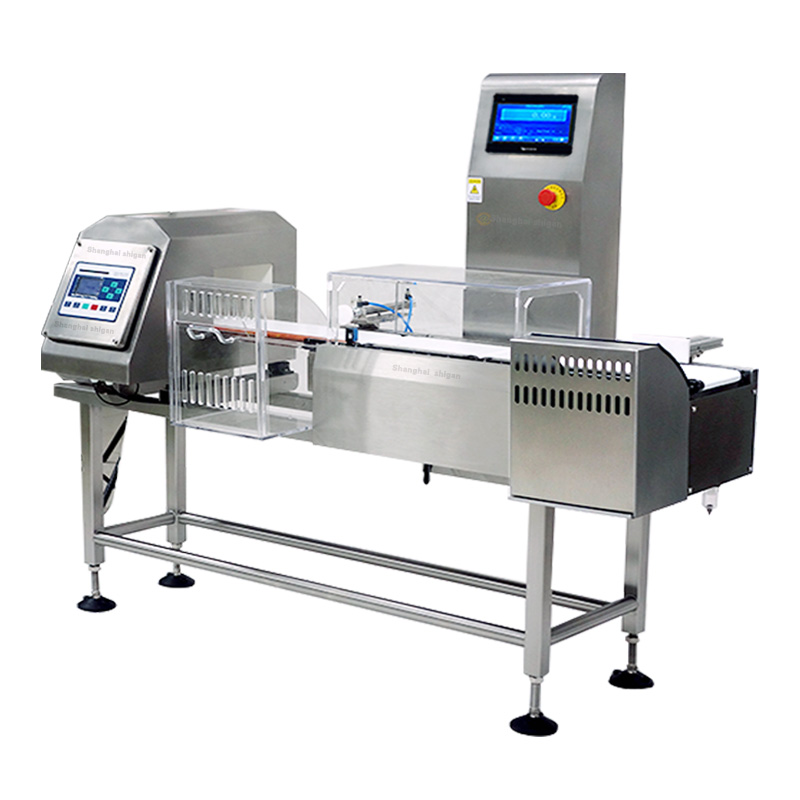

A Checkweigher and Metal Detector Combo is an integrated inspection system used in food, pharmaceutical, and packaging industries to simultaneously detect metal contaminants and verify product weight on a single production line. By combining a metal detection system with a dynamic checkweigher, manufacturers can ensure product safety, regulatory compliance, and accurate weight control in one compact unit.
■ Tech Specifications
| Model | SG-JS150 Integrated Checkweigher Metal Detector |
| Detection hole width | 150mm |
| Detection hole height | 100-200mm |
| Detection sensitivity | H-100mm: Fe≥Φ0.8mm,SUS≥Φ1.2mm
H-120mm: Fe≥Φ0.8mm,SUS≥Φ1.8mm H-150mm: Fe≥Φ1.2mm,SUS≥Φ2.0mm H-200mm: Fe≥Φ1.5mm,SUS≥Φ2.5mm |
| Weighing range | 5-1000g |
| Weighing accuracy | ±0.1g(Depends on products) |
| Conveyor belt height | 750mm (±50mm) |
| Conveying capacity | 10Kg/time |
| Delivery direction | from left to right |
| Maximum speed of conveyor belt | 25m/min |
| Power requirement | AC220V 50HZ |
■ Main Features
●Space-saving design – Combines two inspection systems into one compact machine.
●Higher inspection efficiency – Performs contamination detection and weight control in a single pass.
●Reduced production cost – One system instead of two standalone machines.
●Improved compliance – Helps meet international food and pharmaceutical safety standards.
●Can record detection parameters suitable for 100 different products, avoiding detection errors due to manual differences and avoiding downtime for product replacement.
■ Application
● Packaged food products (snacks, chocolate bars, frozen food)
● Pharmaceutical cartons and bottles
● Sachets and stick packs
● Bakery and confectionery products
● Ready-to-eat meals
■ Customers
■ Exhibitions
■ Packaging & Delivery
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
