■ Product Overview

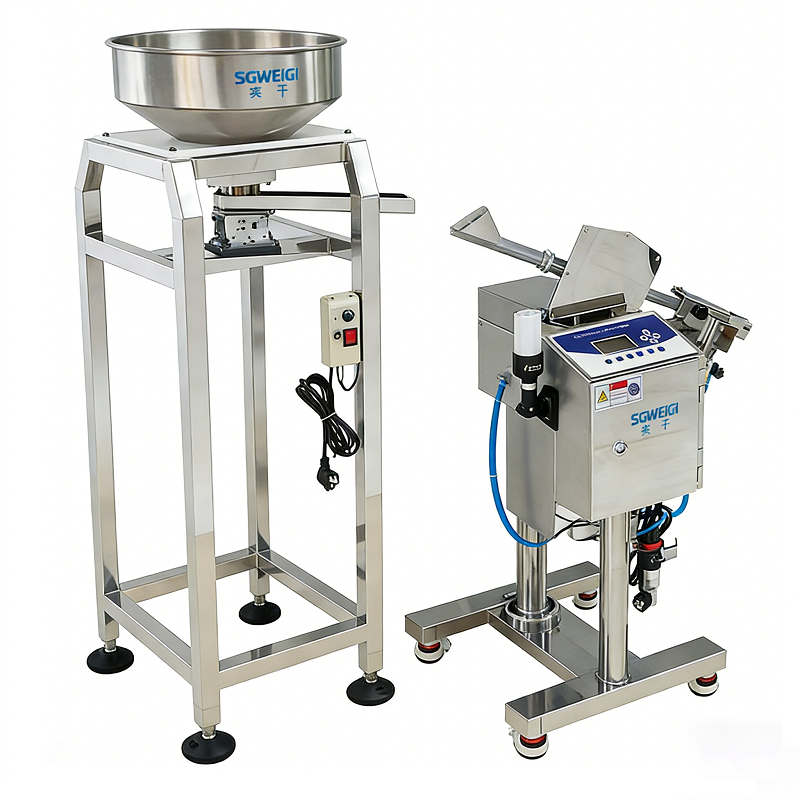

Tablet & Capsule Metal Detector is specially designed for detecting metal contamination in small solid products such as tablets, capsules, and pills. The system adopts high-frequency detection technology and gravity drop structure to ensure maximum sensitivity and product integrity.
Pharma Metal Detector is widely used in industries requiring strict quality control, especially for small-size products with high production speed and precision requirements.
■ Tech Specifications
Inlet height: 770-930mm Port size: 76mm
Outlet Height: 770-860mm Port size: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Sensitivity(adjustable or not):Yes
Detection sensitivity: Fe: 0.3mm, SUS: 0.5mm,Non-Fe:0.5mm
Operation Mode:Touch Screen/LED fast key input
Machine weight: 60kg
Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
Note: The above sensitivity is when the test block freely falls through the detection pipeline. The actual detection sensitivity may vary due to different product characteristics or working environments,it should be based on the actual detection sensitivity.
■ Main Features
1.High Sensitivity Detection
Detects Fe, Non-Fe, and SUS contaminants
Ultra-small metal particle detection capability
Adjustable sensitivity levels
2.Gravity Drop Design
Vertical free-fall structure ensures stable detection
Suitable for tablets and capsules without damaging products
3.Automatic Rejection System
Fast flap reject separation
Minimal material waste
4.Compact & Hygienic Structure
Stainless steel frame
Easy to clean and maintain
Small footprint design
5.Intelligent Control System
Touch screen interface
Multi-product parameter memory
Data recording and export function
Alarm and fault self-diagnosis
6.High Speed Processing
Suitable for integration with tablet press or capsule filling machine
Continuous online inspection
■ Application
Tablet production line
Capsule filling line
Small granule products
Nutritional supplement products
Candy tablets and compressed products
■ Customers
■ Exhibitions
■ Packaging & Delivery
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
■ FAQ
Q1. Are you a manufacturer or trader?
A: We are a manufacturer and we are located in Shanghai,China. We have our own design team for product design.
Q2: Can you explain the whole transaction process?
- Understand the specific needs of customers and determine the machine details.
- Sign the contract.
- Pay the deposit.
- The factory arranges production.
- Test and inspect the machine before shipment.
- Check by customers through online or on-site testing.
- Shipment and transportation, balance payment.
Q3.How much does Pharma Metal Detector cost?
There is no quick, easy answer to this question.Our machine is specific to the customer, so arriving at ‘standard pricing’ isn’t usually practical. Pricing largely depends upon your unique needs, such as the products you want to detect, the size of the product,the speed you want to achieve,or the complexity of the process. Contact us to get a specific quote.
Q4. What kind of shipping method can you provide?
A: By sea, by air and by international express.We will send the photo and video of machine to customer to check the machine running situation before delivery.
Q5. Do you accept customer logo and customization?
A: We accept all kinds of customization and logo for our customers for all our products.
Q6. How about the packing for product? Is it easy damaged during transportation?
A: No.We takes of wooden case and it is very safe.
