■ Product Brief

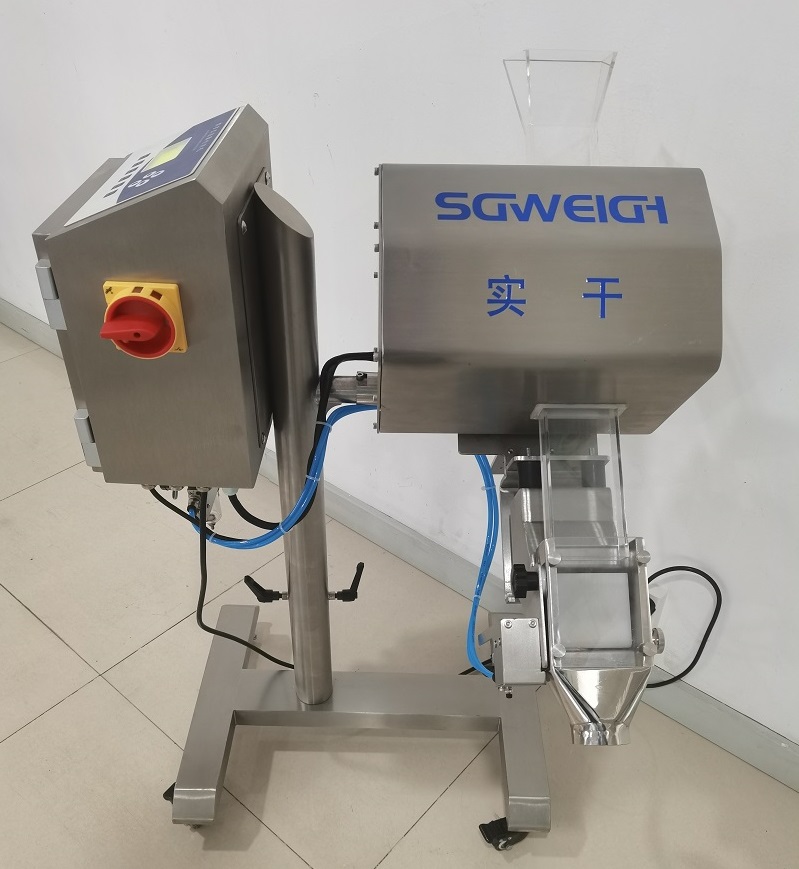

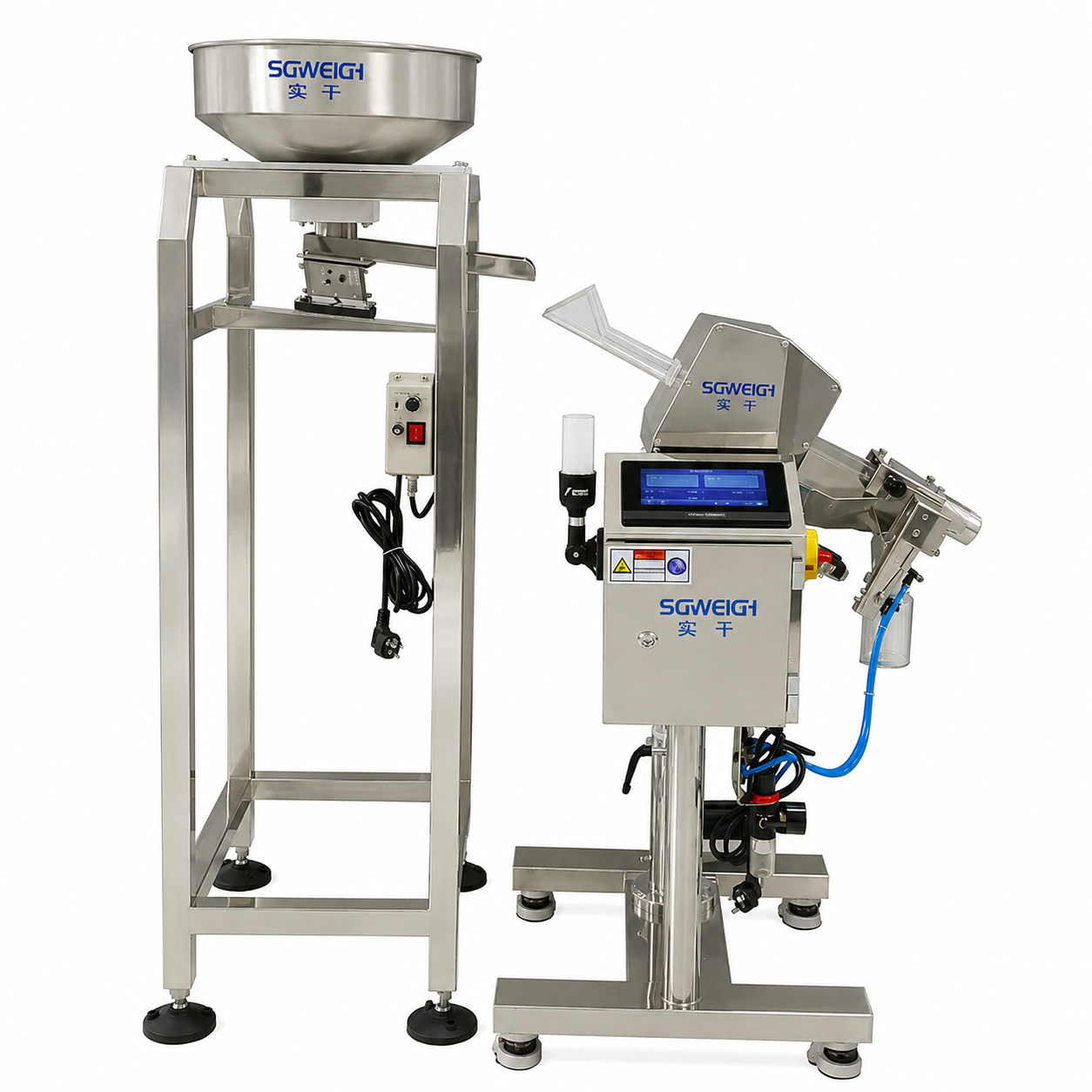

The Tablets Hard Capsules Metal Detection System is a high-sensitivity inline inspection solution designed for continuous detection of metal contaminants in tablets, hard capsules, soft capsules, and other small solid products. The system uses advanced electromagnetic metal detection and digital signal processing technology to identify ferrous, non-ferrous, and stainless-steel contaminants during high-speed production.
Designed for integration with tablet presses, capsule filling machines, dedusters, conveyors, and downstream packaging lines,the Tablet Capsule Metal Detector provides automatic online inspection without interrupting production. When a contaminated product is detected, the integrated reject mechanism rapidly removes the affected product from the production flow, helping manufacturers maintain consistent product quality and reduce contamination risks.
■ Technical Data
| Type | SG-MC70 |
| Inlet height | 770-930mm Port size: 76mm |
| Outlet Height | 770-860mm Port size: 51mm |
| Effective passing size | W70*H20mm |
| Maximum production capacity | 500,000 pcs/hour |
| Sensitivity(adjustable or not) | Yes |
| Operation Mode | Touch Screen/LED fast key input |
| Removal method | flip culling |
| Working voltage | 220V/110V, 50/60HZ |
| Protection class | IP65 |
■ Product Highlights
- High-Sensitivity Metal Detection – Detects ferrous, non-ferrous, and stainless-steel contaminants in tablets and capsules.
- 100% Inline Inspection – Continuously inspects products during production without manual sampling.
- Automatic Reject System – Rapidly removes contaminated products from the production stream.
- Stable Detection Performance – Designed to reduce the influence of vibration, static electricity, and electrical interference.
- Tablet & Hard Capsule Compatibility – Suitable for different tablet sizes and hard capsule formats.
- Easy Product Changeover – Product parameters can be stored and recalled for efficient production changeovers.
- Fast Setup – Automatic setup and calibration functions can simplify product configuration.
- Easy Cleaning & Maintenance – Tool-free or quick-removal components are available on pharmaceutical inspection systems for faster cleaning and maintenance.
- Compact Inline Design – Can be integrated into existing tablet, capsule, dedusting, counting, and packaging lines.
- Fail-Safe Rejection Monitoring – Reject confirmation helps reduce the risk of contaminated products continuing downstream.
- Touchscreen Operation – Intuitive interface for parameter setting, product management, inspection monitoring, and alarm display.
- Customizable Configuration – Detection aperture, feeding height, chute design, reject method, and conveyor configuration can be customized according to production requirements.
■ Industry Applications
■ Company Profile
■ Cooperative Clients
■ Exhibition
■ Package & Logistics
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
