■ Product Overview

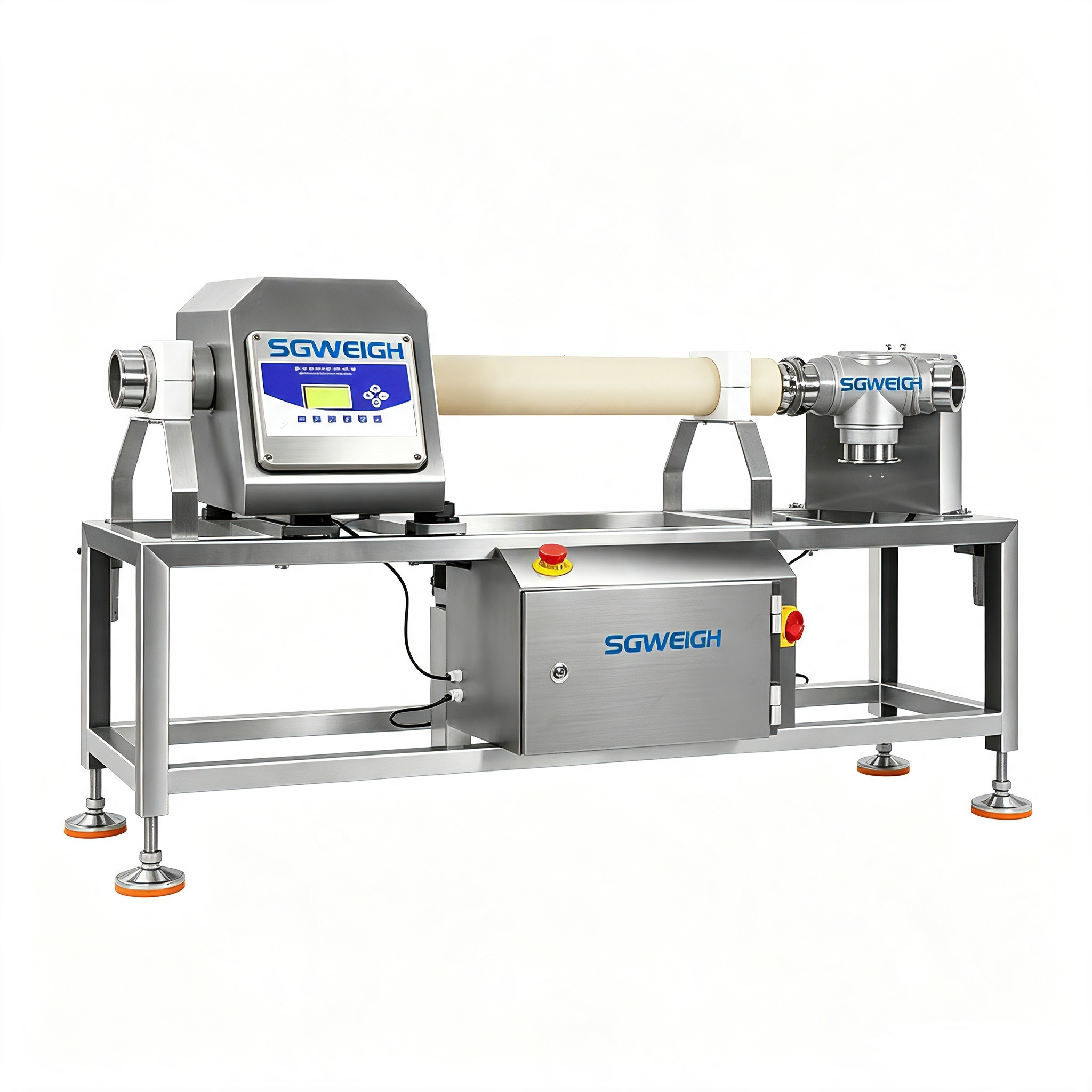

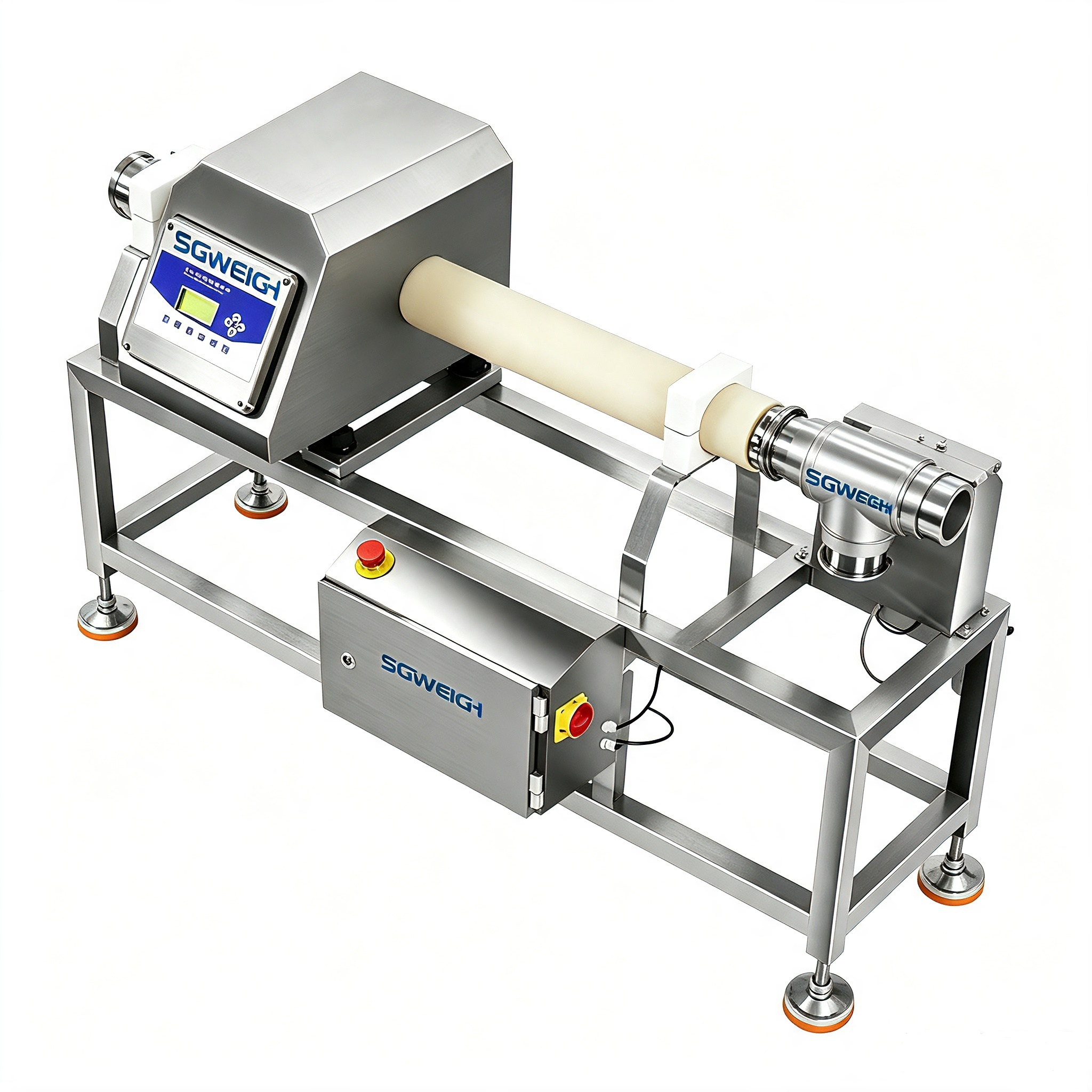

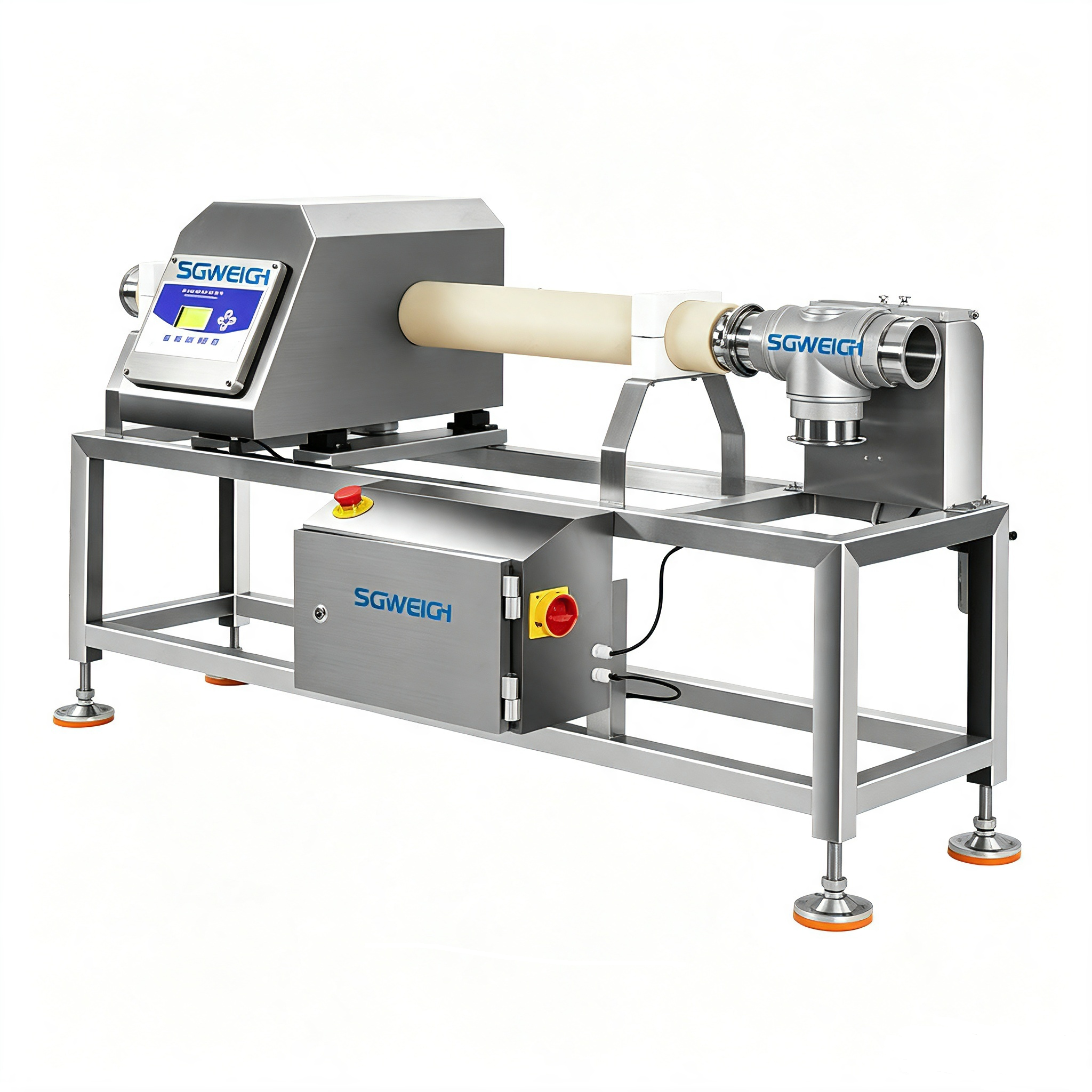

The Liquid & Paste Pipeline Metal Detector is a high-sensitivity inline inspection system specifically designed for liquids, semi-liquids, viscous products, slurries, creams, sauces, gels, and other pumpable materials. Installed directly into sealed pipelines, it performs 100% real-time inspection before filling or packaging, automatically detecting and rejecting ferrous, non-ferrous, and stainless steel contaminants without interrupting production.
Inline Metal Detector for Sauce
■ Tech Specifications
| Type | SG-ML80 | SG-ML100 | SG-ML150 | SG-ML200 | |
| Pipe inner diameter | 80 | 100 | 150 | 200 | |
| Detection sensitivity | Fe（φ） | 0.6 | 0.8 | 1.0 | 1.0 |
| SUS304（φ） | 1.2 | 1.5 | 1.5 | 2.0 | |
| Pipe flow t/h | 2 | 4 | 8 | 15 | |
| Deadweight of Machine | 120kg | 140kg | 160kg | 180kg | |
| Product default quantity | 100 Type | ||||
| Detected product form | Sauces, fruit purees, chocolate syrups, dairy products, beverages, viscous fluids, etc. | ||||
| Air source requirement | ≥0.5MPa | ||||
| Alarm Way | When metal is detected, it will be alarmed and automatically rejected | ||||

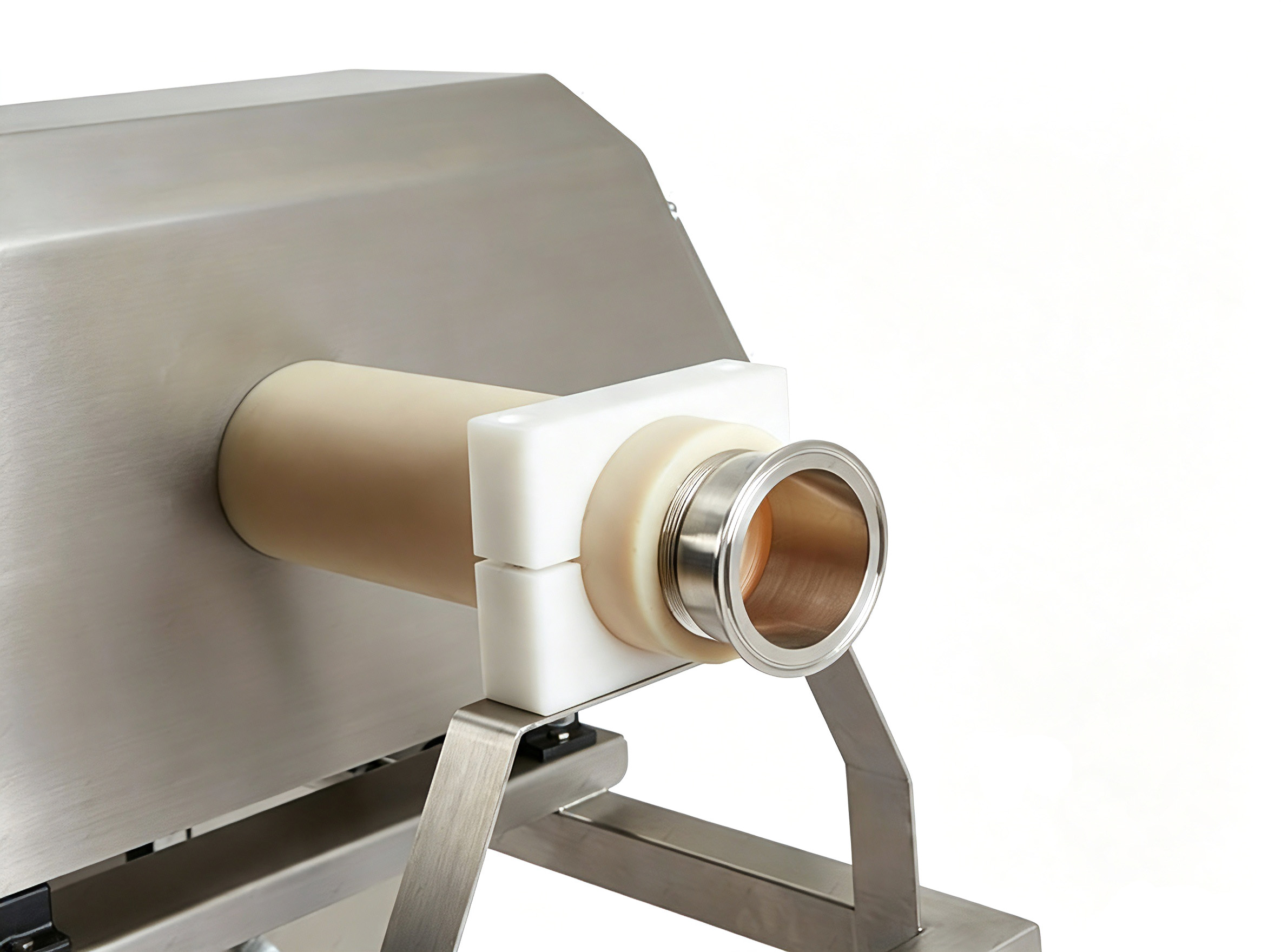

| Pipe material | PP | ||||
■ Main Features
1.High-sensitivity detection of ferrous, non-ferrous, and stainless steel contaminants.
2.Designed for liquids, pastes, creams, sauces, gels, and other pumpable products.
3.100% inline inspection in sealed pipelines without interrupting production.

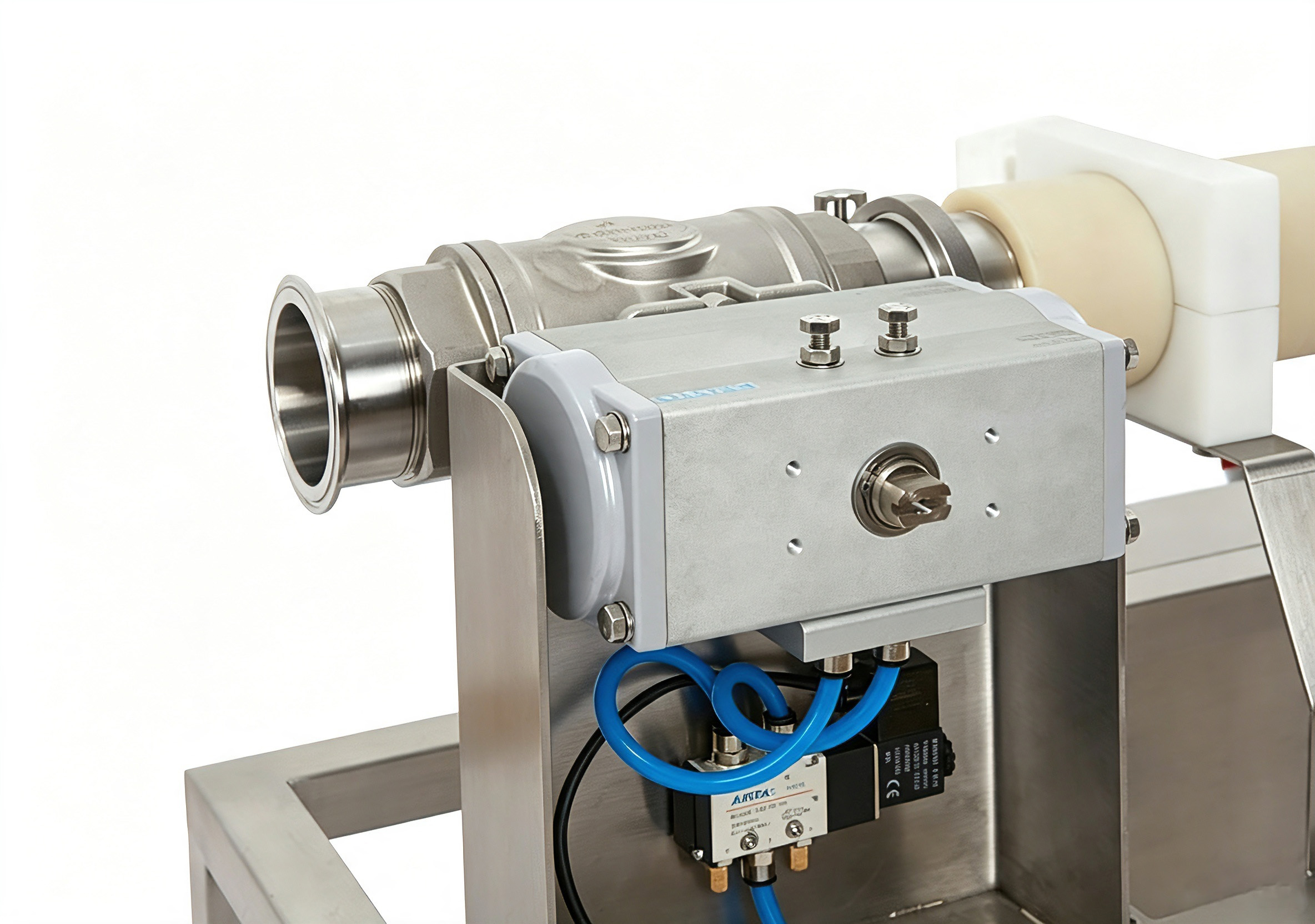

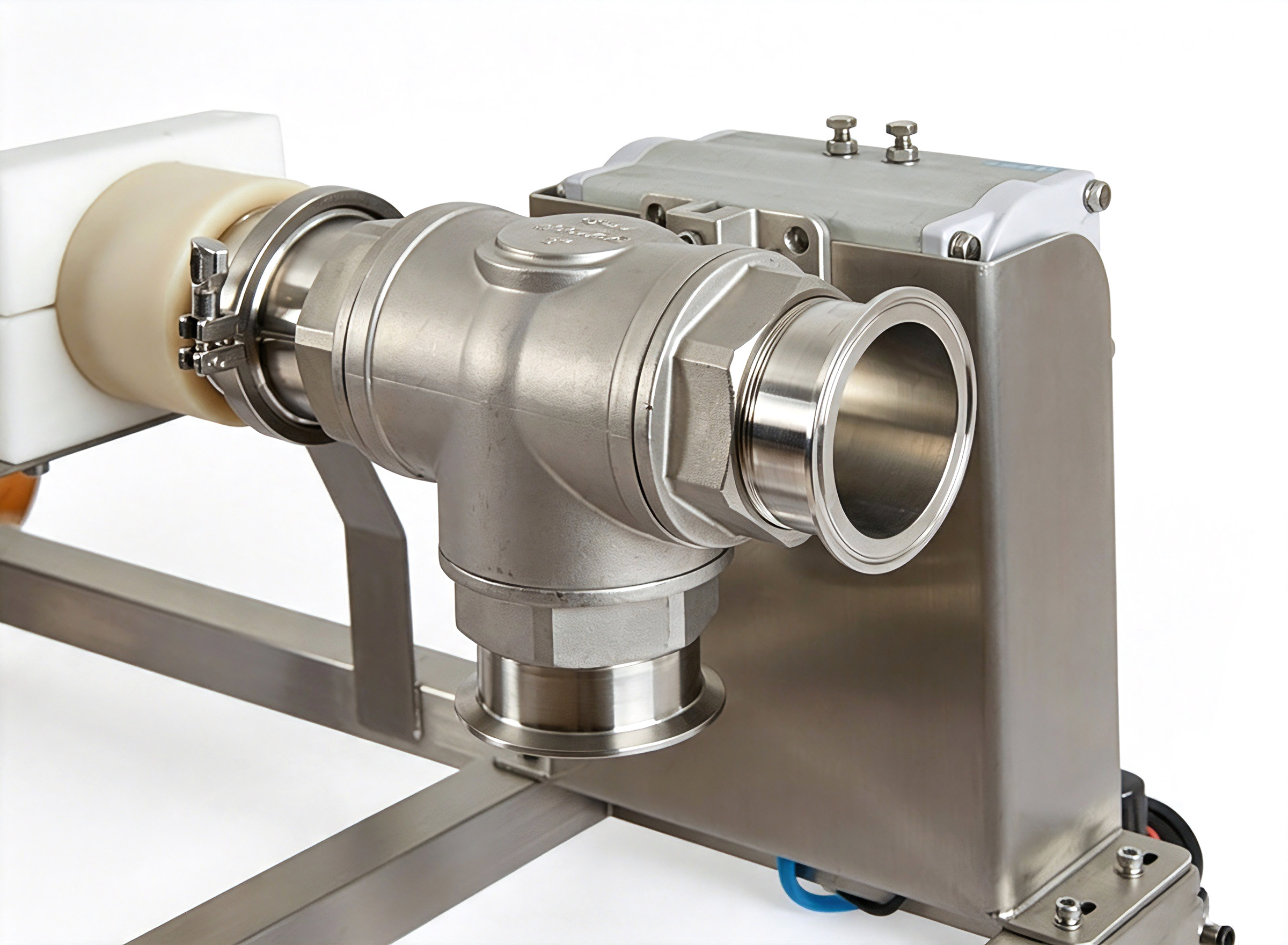

4.Automatic pneumatic reject valve removes contaminated products instantly.
5.Hygienic SUS304/SUS316 stainless steel construction with CIP-compatible design.
6.Advanced digital signal processing minimizes product effect and false rejects.
7.Supports high-pressure, high-temperature, and high-viscosity production processes.
8.Easy integration with pumps, filling machines, and automated processing lines.
9.Touchscreen control with product memory for fast changeovers.
10.Improves product quality, food safety, and manufacturing efficiency while reducing waste.
■ Application
■ Company
■ Customers
■ Exhibitions
■ Packaging & Delivery
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
