◆ Product Overview

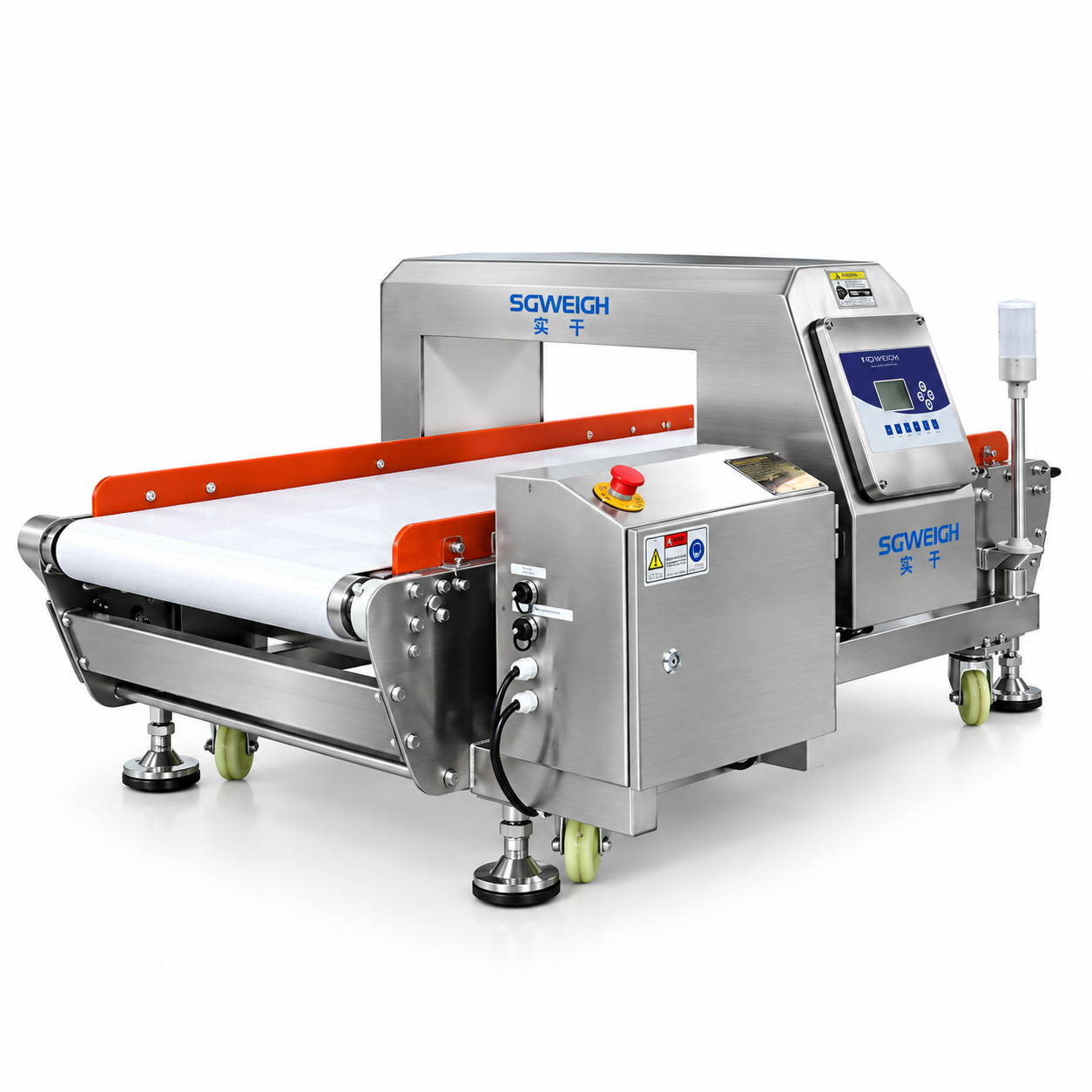

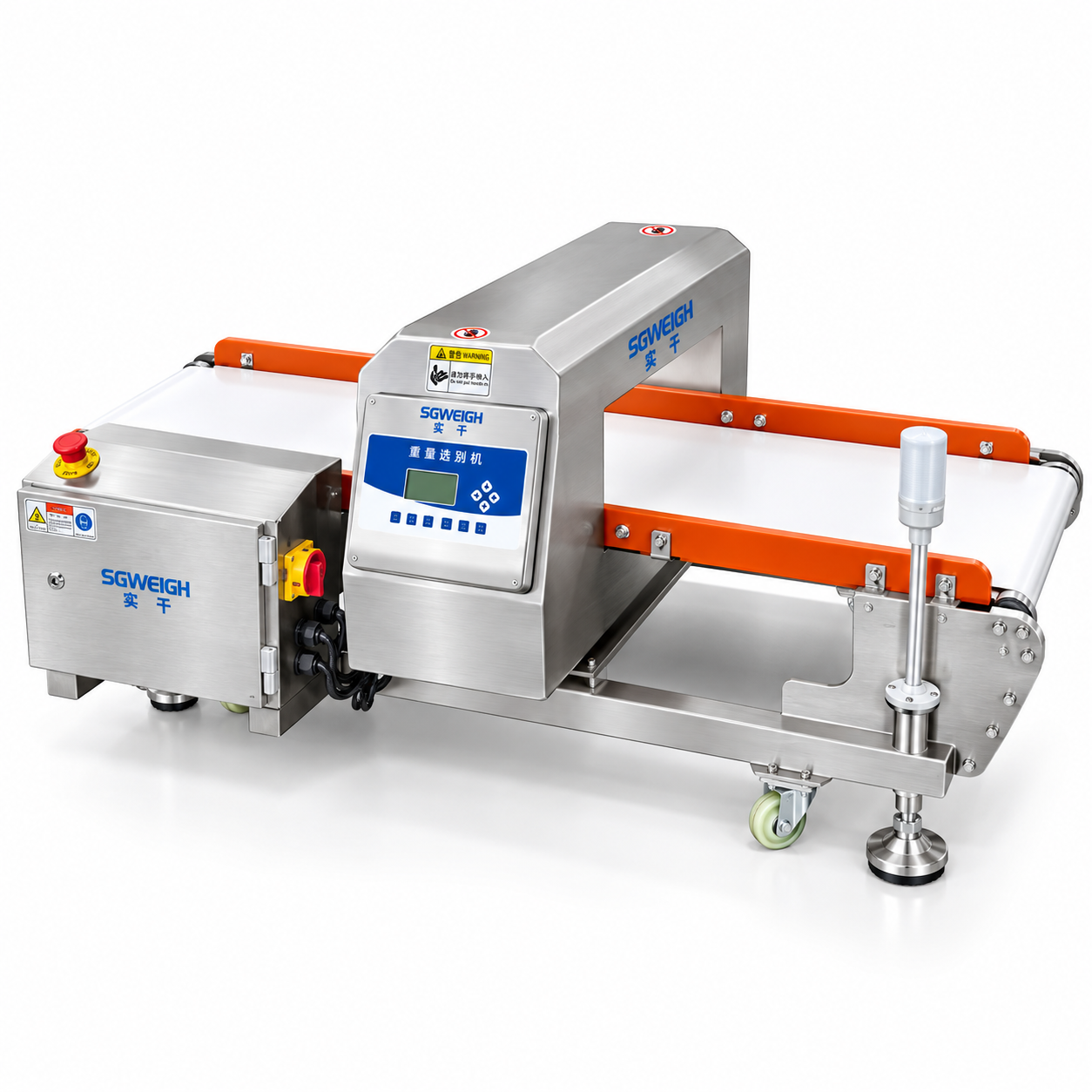

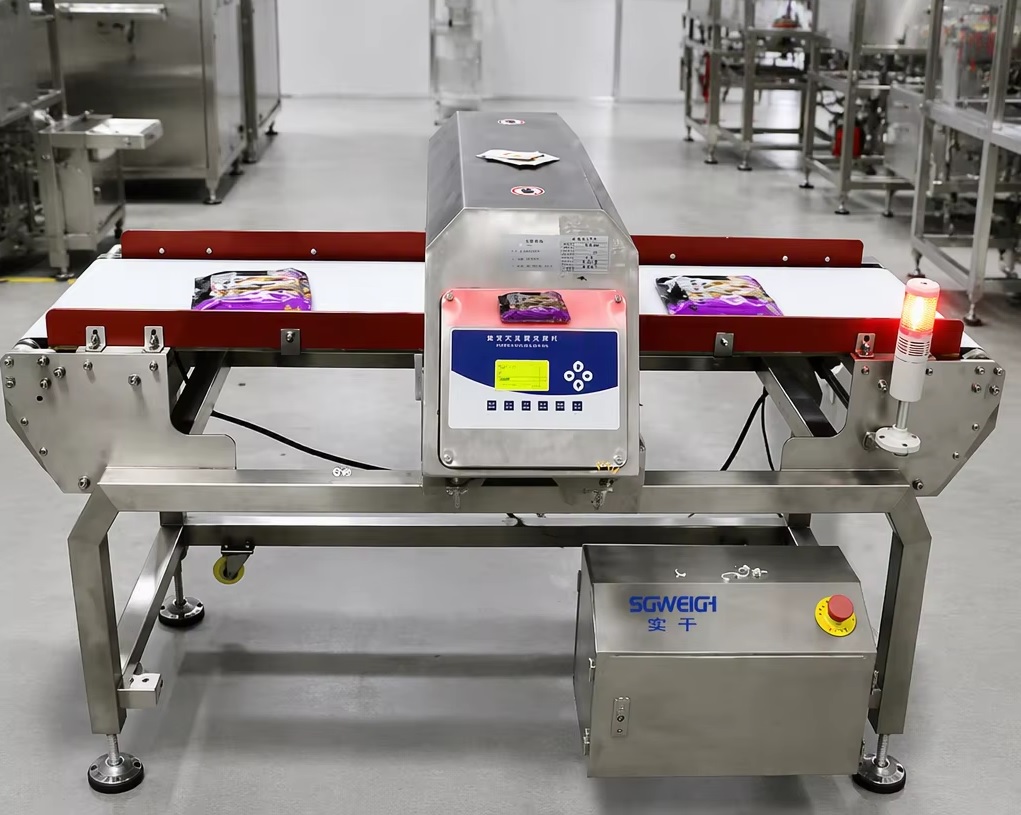

A Conveyor Metal Detection Machine is an inline inspection system designed to detect ferrous, non-ferrous, and stainless-steel metal contaminants in products moving through a production line. It integrates a high-sensitivity metal detector with a conveyor system, enabling continuous inspection without interrupting product flow.
The End-of-line Industrial Metal Detector is suitable for food, pharmaceutical, nutraceutical, chemical, and general manufacturing applications, especially for packaged or unpackaged products requiring reliable end-of-line or in-line contamination inspection.
◆ Technical Parameters
| Type | SG-M500 |
| Detect method | Electromagnetic wave detection |
| Detecting width | 150-1000mm (accept custom） |
| Detecting height | 80-500mm (accept custom） |
| Detecting sensitivity | Fe 0.8mm, Non-Fe1.5mm, SUS 1.5mm |
| Detecting adjustment | Intelligent adjustable |
| Belt Speed | 25m /min (or specified) |
| Protection class | IP65 |
| Conveyor belt material | food grade PU belt |
| Power | 300W |
| Power supply | AC220V,50/60Hz (Or Customized) |

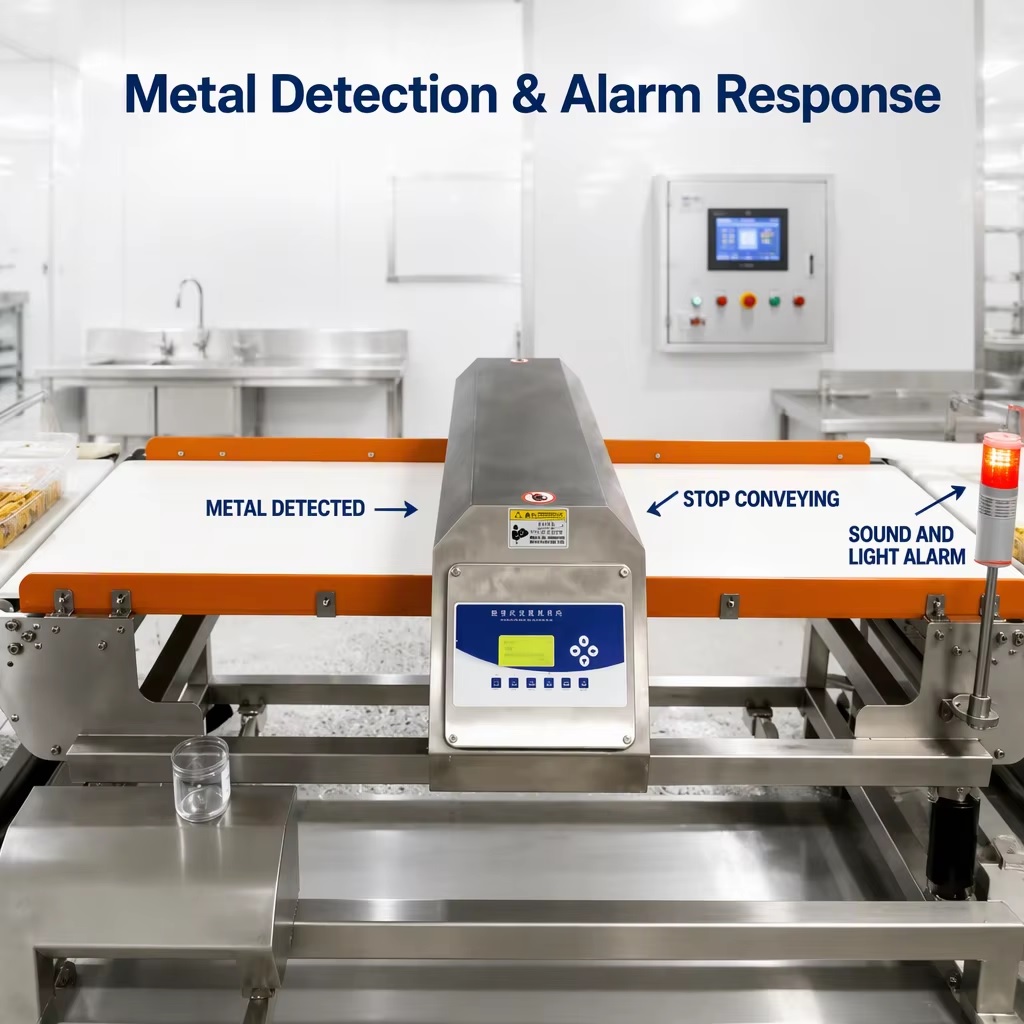

| Alarm mode | The buzzer alarm, the motor automatically stop |
◆ Key Advantages
1. High-Sensitivity Metal Detection – Detects ferrous, non-ferrous, and stainless-steel contaminants.
2. Continuous Inline Inspection – Inspects products automatically as they pass through the conveyor.
3. Automatic Reject System – Removes contaminated products using options such as flap, air blast, pusher, or other suitable rejection mechanisms.
4. Product Memory & Parameter Settings – Stores inspection parameters for different products and production conditions.

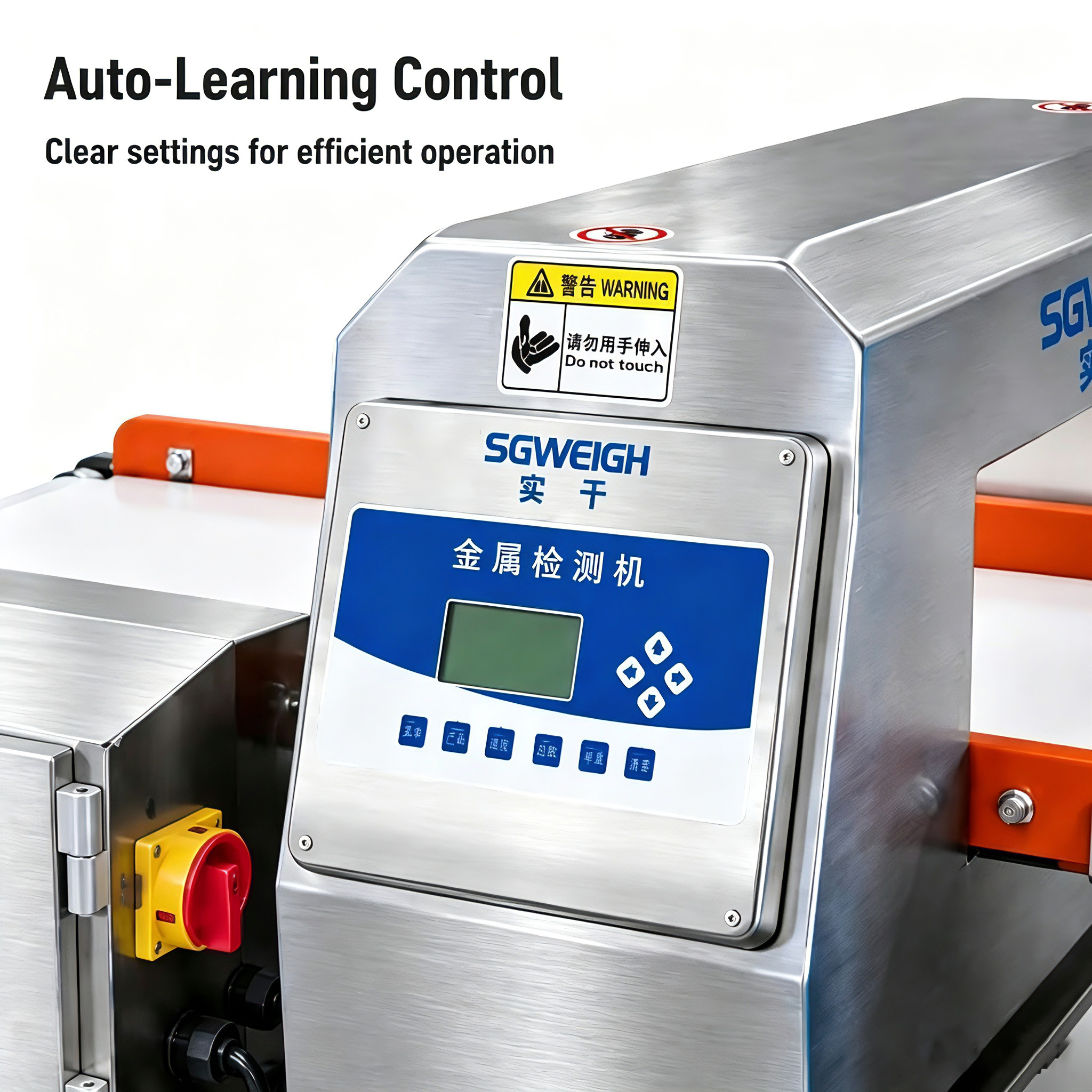

5. Real-Time Monitoring – Displays inspection results, production counts, and system status through the HMI.
6. Adjustable Conveyor Speed – Can be configured according to production-line requirements.

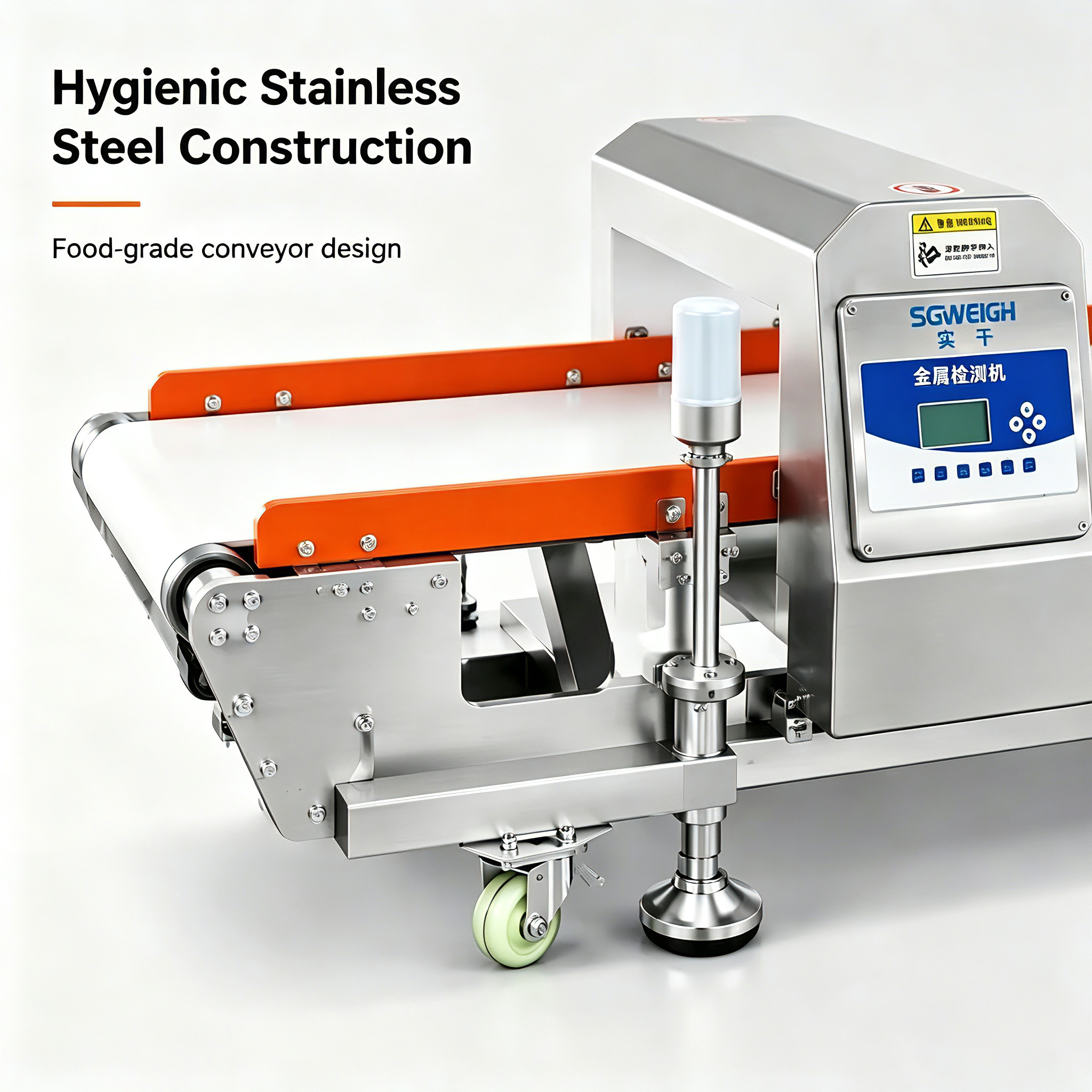

7. Stainless Steel Construction – Designed for industrial environments and easy cleaning.

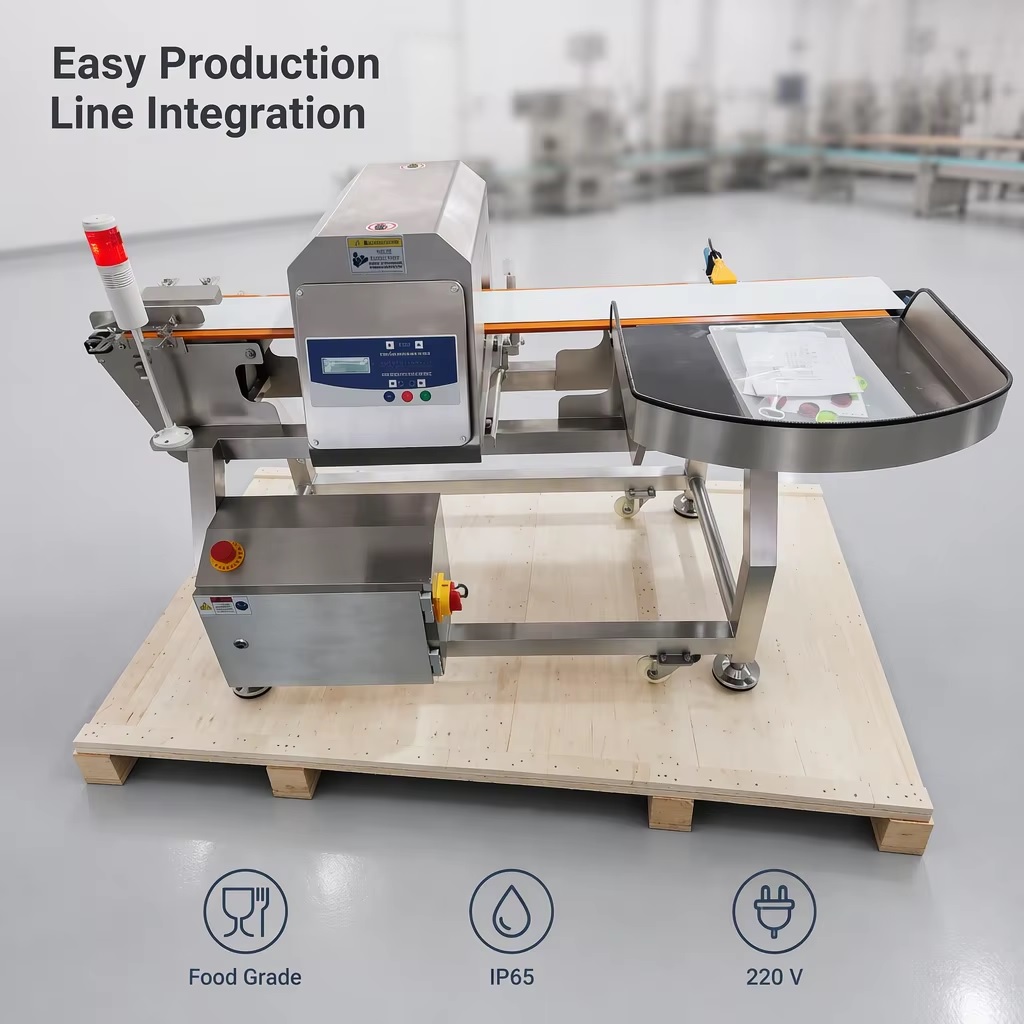

8. Production Line Integration – Can be installed upstream or downstream of packaging, checkweighing, filling, or other inspection equipment.
◆ Application Scope
Food: snacks, bakery products, meat, frozen food, packaged food, confectionery
Pharmaceutical: tablets, capsules, pharmaceutical packages
Nutraceutical: vitamins, supplements, health products
Manufacturing: finished products and packaged goods requiring contamination inspection
◆ About Us
◆ Client Cases
◆ Exhibition Events
◆ Packaging & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
