■ Product Brief

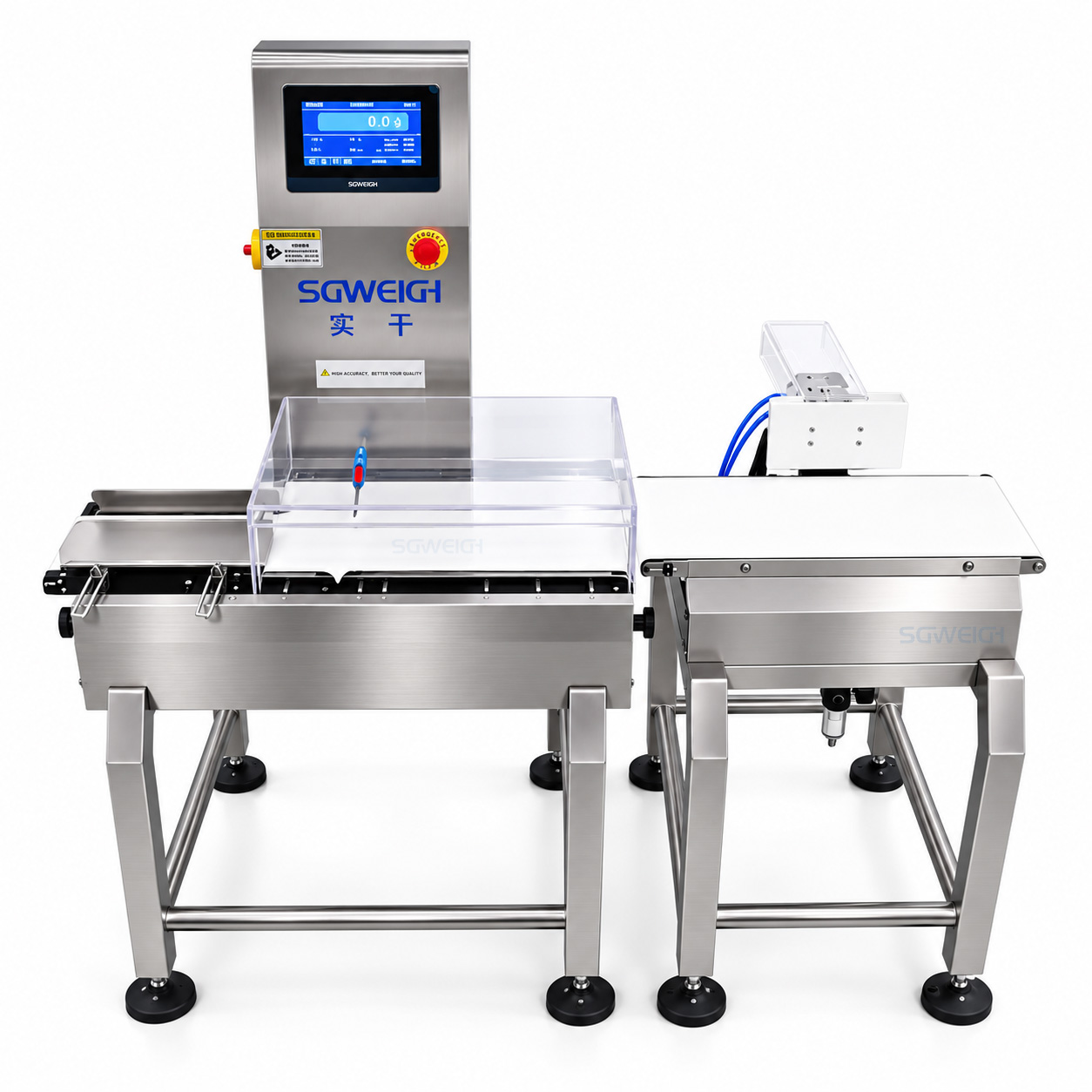

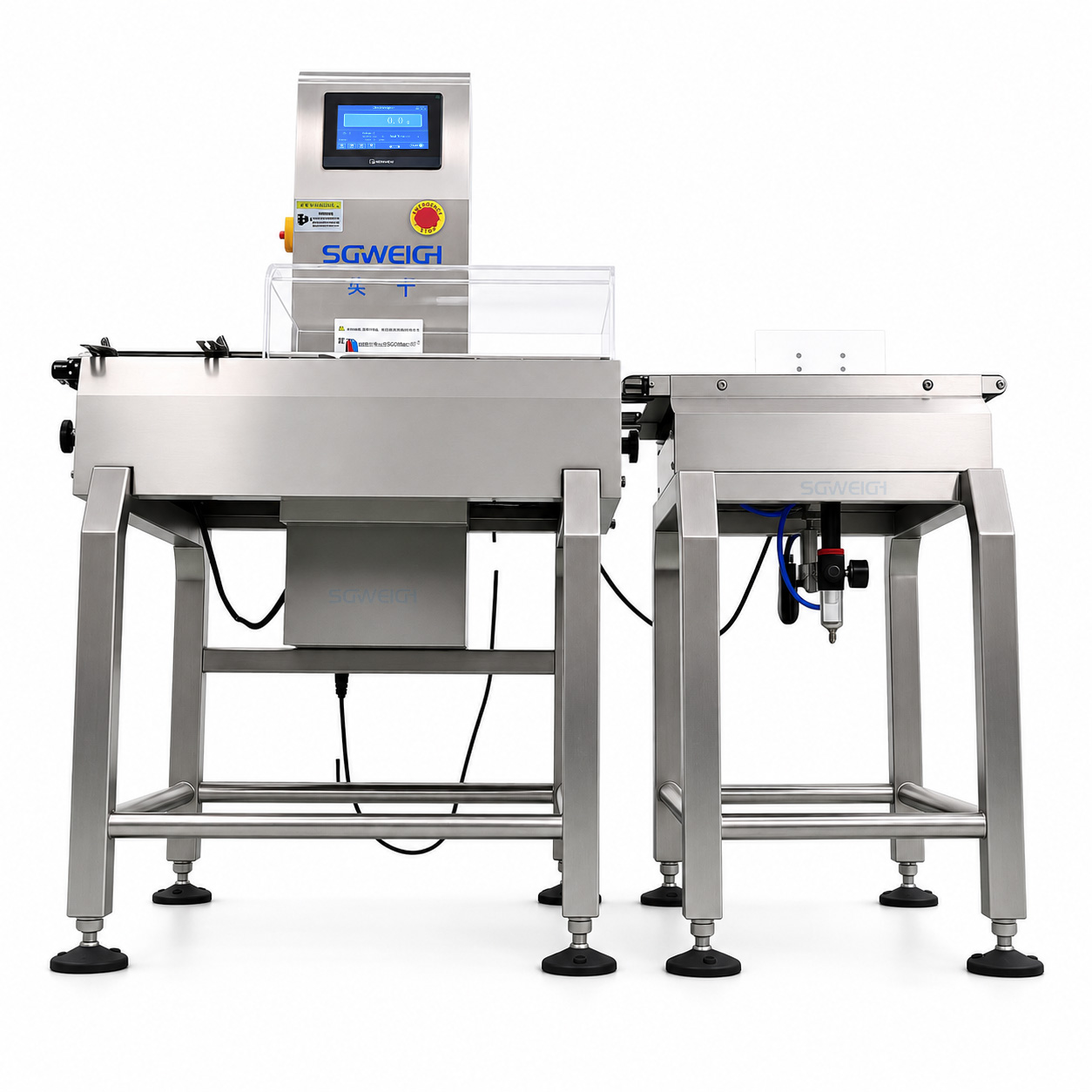

Bags Checkweigher is an automatic in-line weighing system designed to verify the weight of individual bags, pouches, sachets, and flexible packages during continuous production. Using a high-precision load cell and dynamic weighing technology, the system weighs each bag while it moves on the conveyor without stopping the production line.
The Inline Bag Weight Inspection System continuously compares the measured weight with preset target, upper, and lower limits. Underweight and overweight bags can be automatically identified and rejected, helping manufacturers maintain consistent product weight, reduce product giveaway, and improve overall packaging quality.
■ Technical Data
| Model | SG-150 |
| Weighing range | 3-500g |
| Minimum scale | 0.1g |
| Checking speed | Max 150pcs/Min |
| Belt speed | 0-65m/min |
| Box size limit:Length | 200mm Width:150mm Height:3-200mm |
| Operation Way | Touch operation |
| Conveying direction | Facing the touch screen from left to right |
| Rejection method | Push Rejection |
| Belt height from the ground | 750±50mm（can be customized） |
| Machine material | Stainless steel（SUS304/316） |
| Power supply | 220V50/60HZ |
| Power | About300W |
| Weight | About120KG |
| Windshield | 8mm Thick acrylic (to avoid airflow interference) |
| Feet | M20 stainless steel with shock-absorbing rubber pad |
| External air source | 0.2-0.6Mpa Air pressure port:Φ8mm |
| Working environment | Temperature：0℃～40℃，Humidity：30%～95% |
■ Product Highlights
1. Dynamic Weight Inspection
Automatically weighs individual bags while they are moving on the conveyor, enabling continuous online weight inspection.
2. Underweight & Overweight Detection
Compares the actual bag weight with preset tolerance limits and identifies non-conforming products.
3. Automatic Reject System
Automatically removes underweight, overweight, or otherwise out-of-spec bags using a suitable rejection mechanism such as a pusher, air blast, flap, or other customized reject device.
4. 100% Product Weight Checking
Unlike manual sampling inspection, the system can check individual products continuously, helping manufacturers maintain consistent package weight across the production run.
5. Production Data Statistics
The control system can display production quantity, qualified products, rejected products, average weight, and other relevant weighing data.
6. Recipe Management
Multiple product parameters can be stored for different bag sizes and target weights, allowing faster product changeover.
7. Touchscreen HMI
An intuitive touchscreen interface enables operators to set target weight, tolerance limits, product parameters, and production settings.

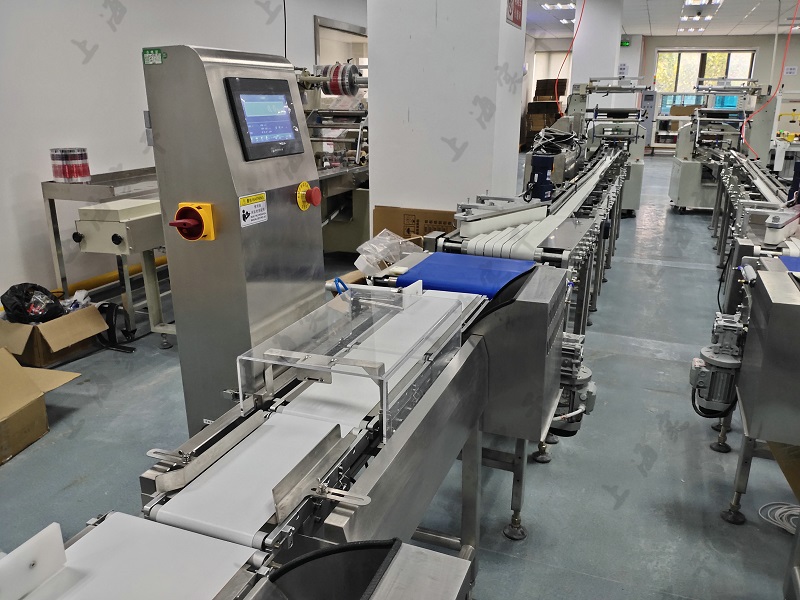

8. Production Line Integration
The checkweigher can be integrated with bagging machines, VFFS packaging machines, conveyors, metal detectors, filling systems, and downstream packaging equipment.
9. Customized Conveyor Configuration
Conveyor length, belt width, weighing range, conveyor height, weighing accuracy, reject method, and incline angle can be customized according to the production line.
10. Stainless Steel Construction
A stainless-steel machine structure is suitable for demanding production environments and facilitates cleaning and routine maintenance.
