◆ Product Overview

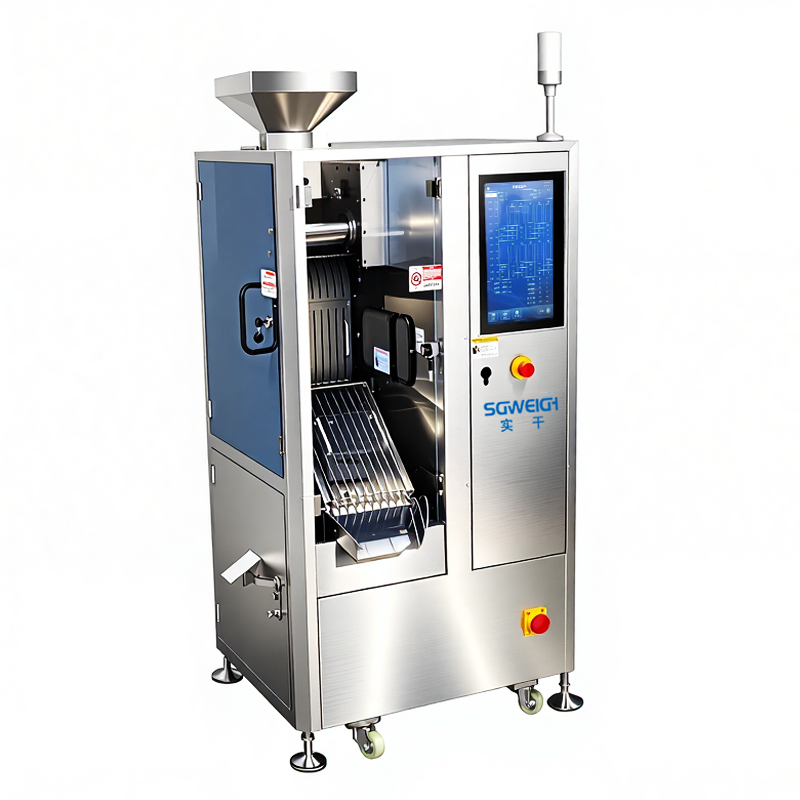

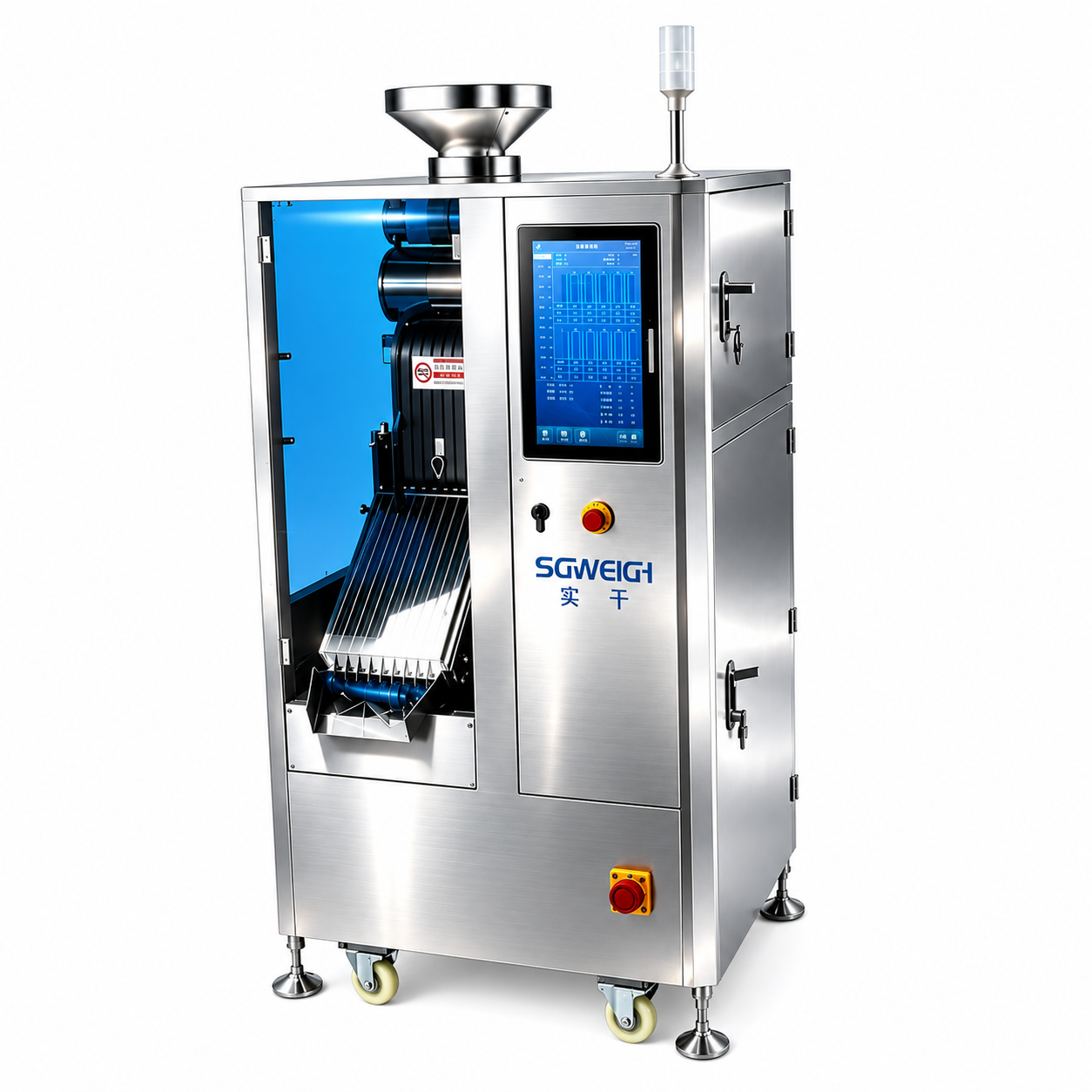

The 10 Lane Hard Capsule Checkweigher is a high-speed multi-lane dynamic weighing system designed for continuous, 100% weight inspection of hard capsules. Featuring 10 independent weighing lanes and an integrated elevator feeding system, the machine provides stable product distribution, high weighing accuracy, efficient material handling, and reliable automatic rejection of capsules outside the preset weight limits.
Designed for high-throughput capsule production lines, this Capsule Checkweigher can inspect multiple capsules simultaneously and automatically identify underweight, overweight, or missing-product conditions. The elevator helps transfer and evenly distribute capsules to the weighing channels, improving feeding stability and reducing manual handling.
◆ Technical Parameters
| Type | SG-CT10 |
| Weighing scope | 5-2000mg |
| Display scale | 0.1mg |
| Highest sorting accuracy | ±0.5mg |
| product specification | Capsule: 00#-5#（Other sizes or shapes subjrct to testing） |
| Highest sorting ability | 75,000 PCS/HR |
| Number of columns | 10 Lane |
| Power supply | AC-220V 50HZ |
| Compressed air | 0.3-0.9Mpa |
| Use environment | 15~30℃ The temperature change during use should not exceed the range of 1℃/h、Humidity 30~70% RH (but no condensation) |
| Shell material | SUS304/316 |
◆ Key Advantages
1.10-lane simultaneous weighing for high production throughput.
2.Integrated elevator feeding system for continuous capsule transfer.
3.100% dynamic weight inspection of individual capsules.
4.High-speed and high-precision weighing technology.
5.Automatic detection of underweight and overweight capsules.
6.Automatic reject system for nonconforming products.
7.Independent lane control and parameter management.
8.Real-time production statistics and weighing data.
9.Touchscreen HMI with easy parameter setting and operation.
10.Recipe management for different capsule specifications.
11.Stainless steel construction suitable for demanding production environments.
12.Compact and modular design for easy integration into automated production lines.
13.Data communication interfaces available for line integration and production monitoring.
◆ Application Scope
◆ About Us
◆ Client Cases
◆ Exhibition Events
◆ Packaging & Shipping
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
