◆ Product Overview

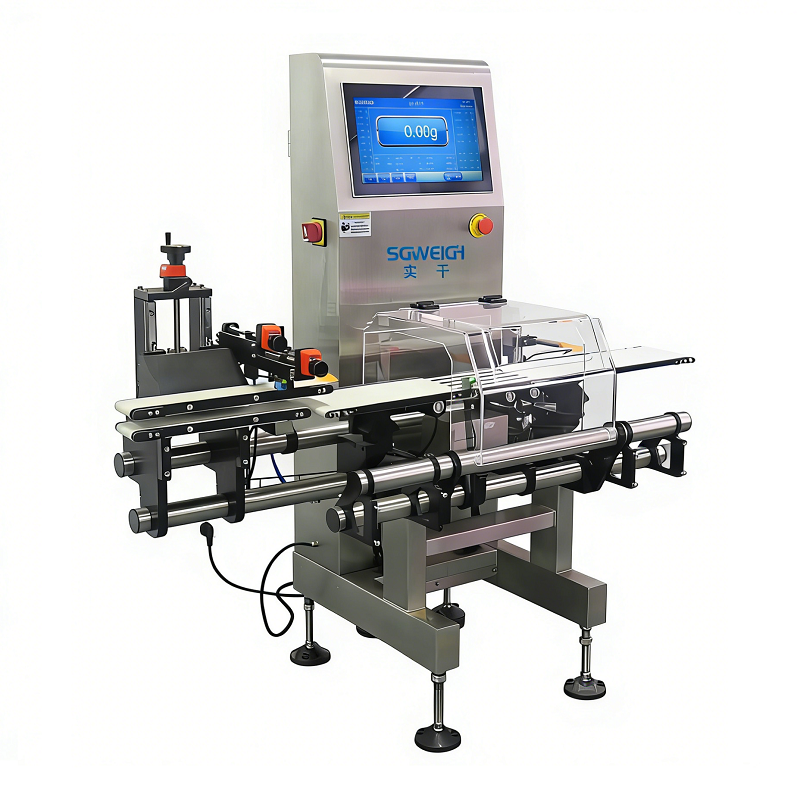

The High Speed Checkweigher for Tablet Boxes is an inline dynamic weighing system designed for automatic weight inspection of tablet cartons and small boxed products on high-speed packaging lines. It continuously weighs each box while it moves through the conveyor, compares the measured weight with preset upper and lower limits, and automatically rejects products outside the acceptable range.
When a box is missing a tablet, and the resulting weight difference is large enough for the system to detect, the Carton Checkweigher can identify the abnormal packaging and initiate the rejection mechanism.
◆ Technical Parameters
| Type | SG-150HH |
| Weighing scope | 3-500g |
| Restriction of product | L:100 W:150 H:2-150(mm) |
| Accuracy | ±0.01g(Depends on products) |
| Division scale | 0.01g |
| Highest speed | 800pcs/min |
| Belt width | 150mm |
| Belt Speed | 0-110m/min |
| Power supply | AC220V±10%50HZ |
| Power | about 200W |
| Main material | SUS304/316 |
◆ Key Advantages
1. High‑Speed Dynamic Weighing – Performs continuous weight inspection without stopping the production line.
2. 100% Box Weight Inspection – Checks every tablet box instead of relying only on sampling inspection.
3. Missing Product Detection – Identifies underweight boxes that may indicate missing tablets, inserts, or other components.
4. Automatic Reject System – Removes overweight and underweight boxes automatically.
5. High‑Precision Load Cell – Provides stable and repeatable weighing performance during high‑speed operation.
6. Adjustable Weight Limits – Target weight, upper limit, and lower limit can be configured for different products.
7. Stable Conveyor Transport – Helps minimize box movement during the weighing process.
8. Recipe Management – Stores multiple product parameters for fast product changeover.
9. Real‑Time Weight Monitoring – Displays inspection results and production statistics through the touchscreen interface.
10. Packaging Line Integration – Can be connected with cartoning machines, conveyors, labeling systems, metal detectors, and other downstream equipment.
11. Compact Stainless Steel Construction – Suitable for automated production environments and easy routine cleaning.
12. Customizable Configuration – Conveyor dimensions, weighing range, speed, reject method, and machine layout can be customized according to the production line.
◆ Application Scope
◆ About Us
◆ Client Cases
◆ Exhibition Events
◆ Packaging & Shipping
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
