◆ Product Overview

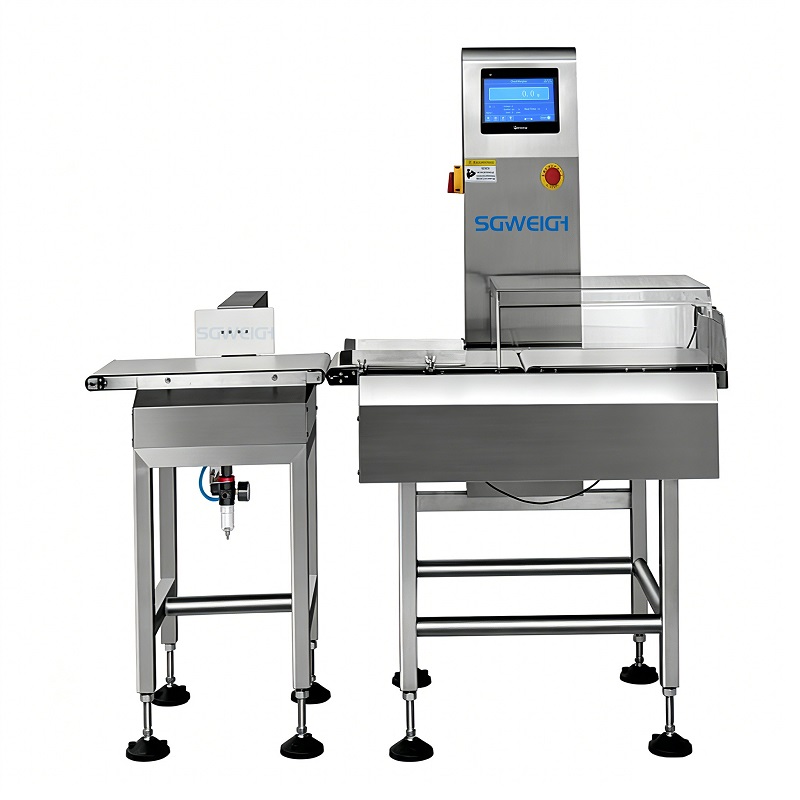

The Jars Dynamic Checkweigher is an in-line automatic weighing system designed for continuous weight inspection of jars, glass containers, plastic jars, cans, and other rigid packaged products.Automatic Reject Checkweigher performs 100% dynamic weight checking while products are moving on the conveyor, automatically identifying underweight and overweight jars and removing non-conforming products from the production line.
◆ Technical Parameters
| Type | SG-300H |
| Weighing Range | 5-5000g |
| Limited of product | L: 350 W:300 H:3mm or more |
| Accuracy | ±0.5g Depends on product |
| Division Scale | 0.1g |
| Belt Speed | 0- 90m/min |
| Max Speed | 180 pcs/min |
| Belt Width | 300mm |
| Machine Weight | 110kg |
| Power Supply | AC-220V 50HZ |
| Power | 200W |
| Main Material | SUS304/316 stainless steel |
◆ Key Advantages
1.100% In-Line Dynamic Weighing – Checks the weight of every jar without stopping the production line.
2.Underweight & Overweight Detection – Automatically identifies products outside the preset weight limits.
3.Automatic Rejecting – Removes non-conforming jars using a pusher, air blast, swing arm, or other suitable rejection device.
4.High-Precision Weight Control – Provides stable and accurate weight measurement during continuous production.
5.Fill Weight Inspection – Detects insufficient or excessive filling after the filling process.
6.Product Recipe Management – Stores different product parameters for quick product changeovers.
7.Real-Time Production Monitoring – Records weighing results and production statistics for quality control.
8.Adjustable Conveyor & Guide Rails – Suitable for jars with different diameters, heights, and package formats.
9.Customized Production Line Integration – Can be integrated with filling, capping, labeling, metal detection, and other packaging equipment.
◆ Application Scope
◆ About Us
◆ Client Cases
◆ Exhibition Events
◆ Packaging & Shipping
Packaging
● All products are packed in standard export-grade packaging to ensure maximum protection during transportation.
● Each unit is wrapped with plastic film and foam, fixed firmly with inner support, and placed in a strong carton or plywood case.
● All corners and fragile parts are specially protected to prevent collision, scratch and damage.
Shipping
● We support sea freight, air freight and international express (DHL, FedEx, UPS, TNT) according to customer requirements.
● Goods will be carefully loaded and inspected before delivery.
● A complete tracking number will be provided once shipped, so you can monitor the whole logistics process.
● We cooperate with reliable forwarders to ensure safe, on-time and cost-effective delivery.
