■ Product Brief

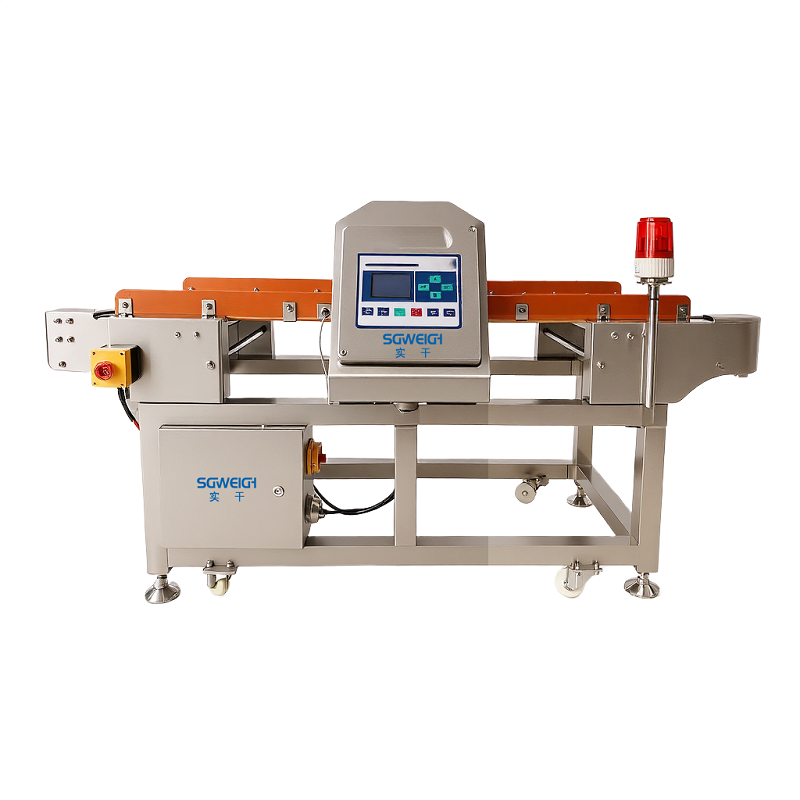

A Pharmaceutical Metal Detector integrated with a tablet press or capsule filling machine is a high-sensitivity inspection system designed to detect and automatically reject metal-contaminated tablets, capsules, and pills before they enter the packaging process. Installed directly after the tablet press, capsule filler, or deduster,Pharma Metal Detector provides 100% inline inspection without interrupting production.
■ Technical Data
| Type | SG-MC70 |
| Inlet height | 770-930mm Port size: 76mm |
| Outlet Height | 770-860mm Port size: 51mm |
| Effective passing size | W70*H20mm |
| Maximum production capacity | 500,000 pcs/hour |
| Sensitivity(adjustable or not) | Yes |
| Detection sensitivity | Fe: 0.3mm, SUS: 0.5mm |
| Operation Mode | Touch Screen/LED fast key input |
| Machine weight | 75kg |
| Removal method | flip culling |
| Working voltage | 220V/110V, 50/60HZ |
■ Product Highlights
1.High-sensitivity detection of ferrous, non-ferrous, and stainless steel contaminants.
2.Seamless integration with tablet presses, capsule filling machines, and dedusters.
3.Automatic reject system removes contaminated products without stopping production.
4.Digital signal processing minimizes product effect and false alarms.
5.Stable operation under vibration, dust, and high-speed production conditions.
6.Stainless steel hygienic construction suitable for pharmaceutical environments.
7.Easy sensitivity calibration and product changeover.
8.Touchscreen HMI with multilingual interface.
9.Detection data recording for quality traceability.
10.Compatible with tablets, capsules, pills, pellets, and softgels.
11.Compact modular design for easy installation and maintenance.
■ Industry Applications
■ Company Profile
■ Cooperative Clients

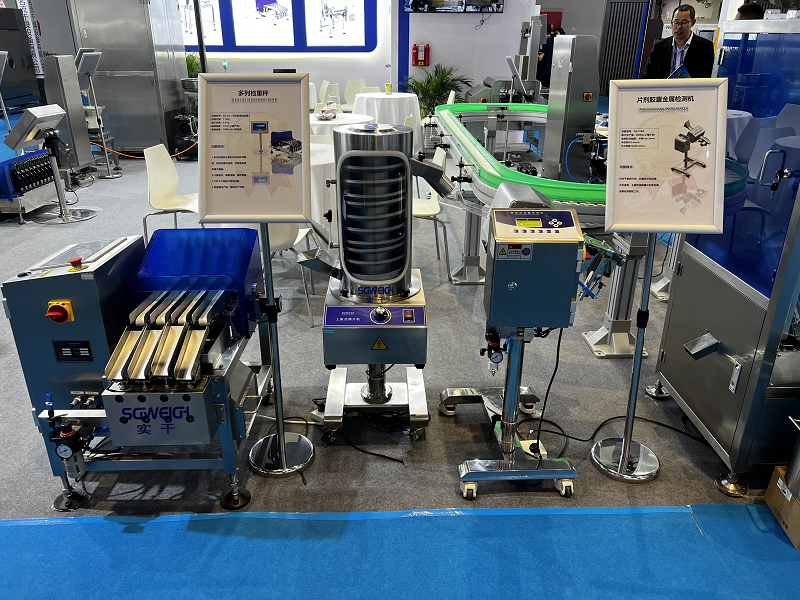

■ Exhibition
■ Package & Logistics
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
