◆ Product Overview

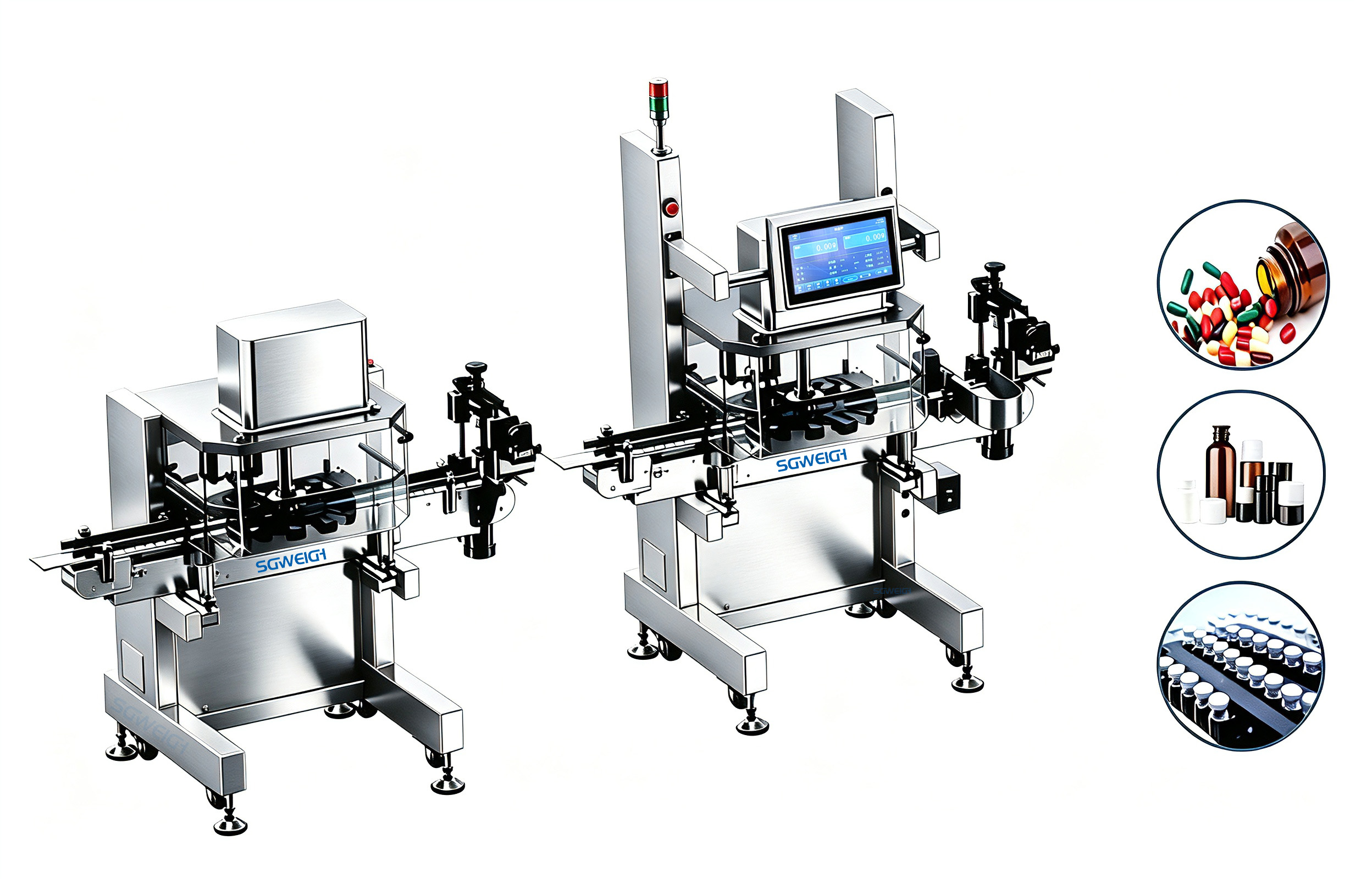

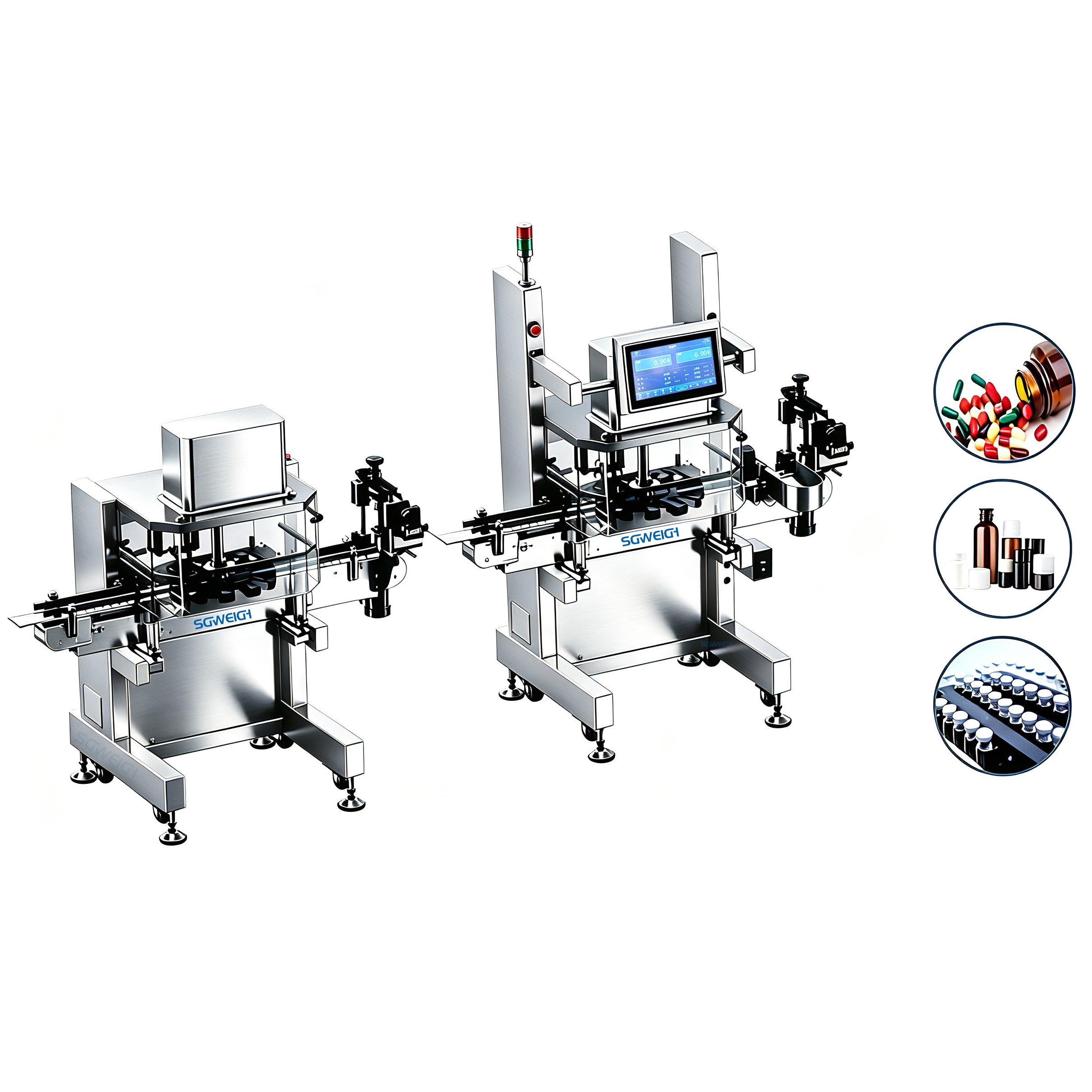

The SG-ZAB Rotary Bottle Checkweigher is a high-precision automatic weighing system designed for pharmaceutical bottles containing capsules, tablets, softgels, powders, and liquid products. Unlike conventional checkweighers, the SG-ZAB adopts an innovative dual-checkweigher net weight inspection system, ensuring highly accurate product weight verification regardless of bottle weight variation.

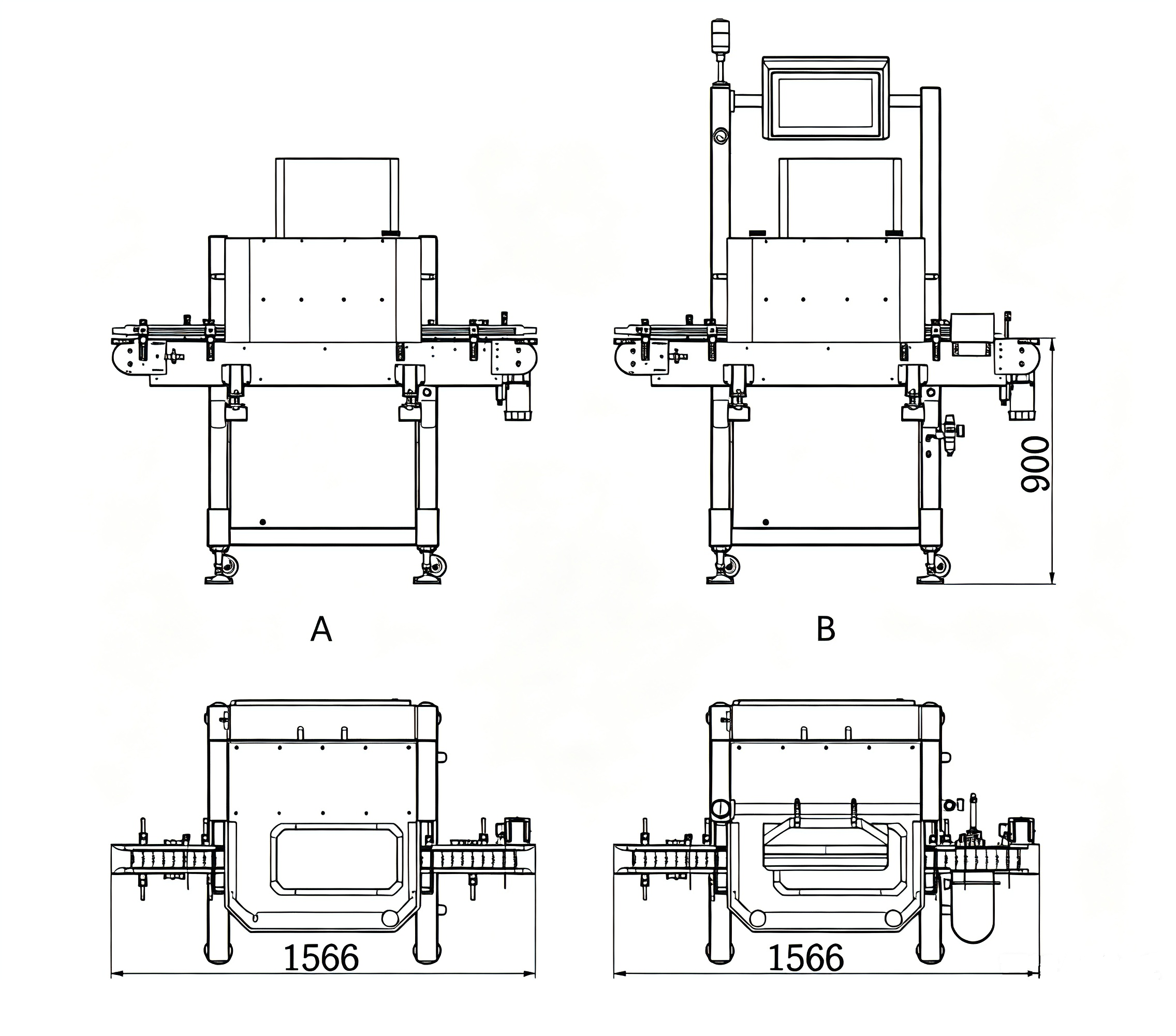

During production, Checkweigher A automatically measures the weight of each empty bottle (tare weight) before filling. The tare weight data is instantly transmitted to Checkweigher B through the control system. After filling, Checkweigher B measures the total weight of the finished bottle, automatically subtracts the stored tare weight, calculates the actual product net weight, and determines whether the filled quantity meets the preset tolerance. Bottles outside the acceptable weight range are automatically rejected without interrupting production.
This intelligent weighing technology effectively eliminates errors caused by bottle weight differences, significantly improving filling accuracy, reducing product giveaway, and ensuring compliance with GMP and pharmaceutical quality control requirements.
◆ Technical Parameters
| Type | SG-ZAB |
| Weighing scope | 2-300g |
| Restrictions of product | Ф10-100 Н:20-200(mm) |
| Accuracy | ±0.01g (Depends on products) |
| Division scale | 0.01g |
| Belt Speed | 0-50m/min |
| Highest speed | 60pcs/min,120pcs/min,180pcs/min(Optional) |
| Chain plate width | 100mm |
| Powder supply | AC220V 50HZ |
| Power | about 800W |
| Main material | SUS304/316 |
| Weight of machine | about 500Kg |
◆ Key Advantages
1.Dual-checkweigher design for automatic tare weight and gross weight measurement.
2.Real-time tare weight data transfer between Checkweigher A and Checkweigher B.
3.Automatic net weight calculation without manual intervention.
4.Detects underfilled, overfilled and missing product bottles.

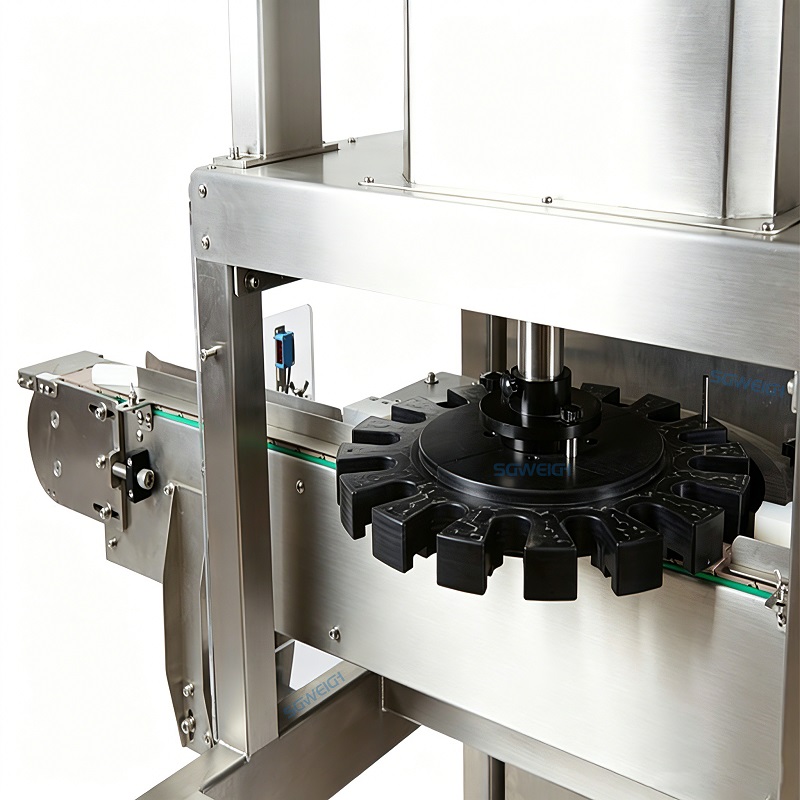

5.High-precision weighing with stable rotary conveying structure.
6.Suitable for capsules, tablets, softgels, powders and liquid bottles.

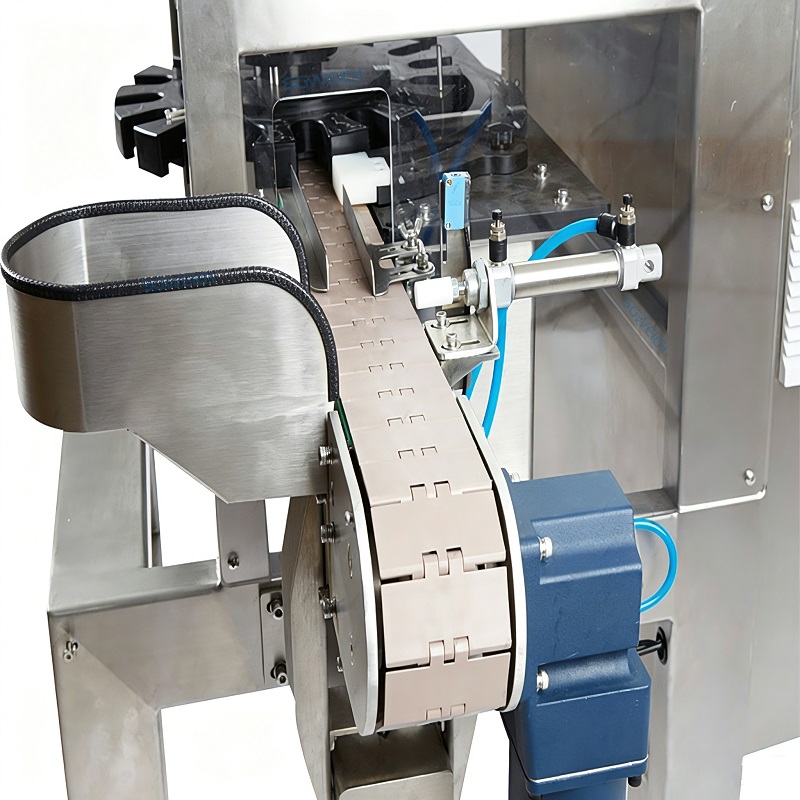

7.Automatic reject system for non-conforming products.
8.High-speed online inspection for continuous production lines.
9.Reduces filling errors and minimizes product giveaway.
10.Supports multiple bottle sizes with quick changeover.
11.PLC + touch screen operation with recipe memory.
12.Data recording and production traceability.
13.Stainless steel hygienic construction.
14.Easy integration with filling, capping and labeling machines.
15.Compliant with GMP and FDA production requirements.
◆ Application Scope
The SG-ZAB Rotary Checkweigher is widely used for:
- Capsule Bottles
- Tablet Bottles
- Softgel Bottles
- Effervescent Tablet Bottles
- Vitamin Bottles
- Nutritional Supplement Bottles
- Powder Bottles
- Liquid Medicine Bottles
- Syrup Bottles
- Cosmetic Bottles
- Chemical Reagent Bottles
- Healthcare Product Bottles
