■ Product Brief

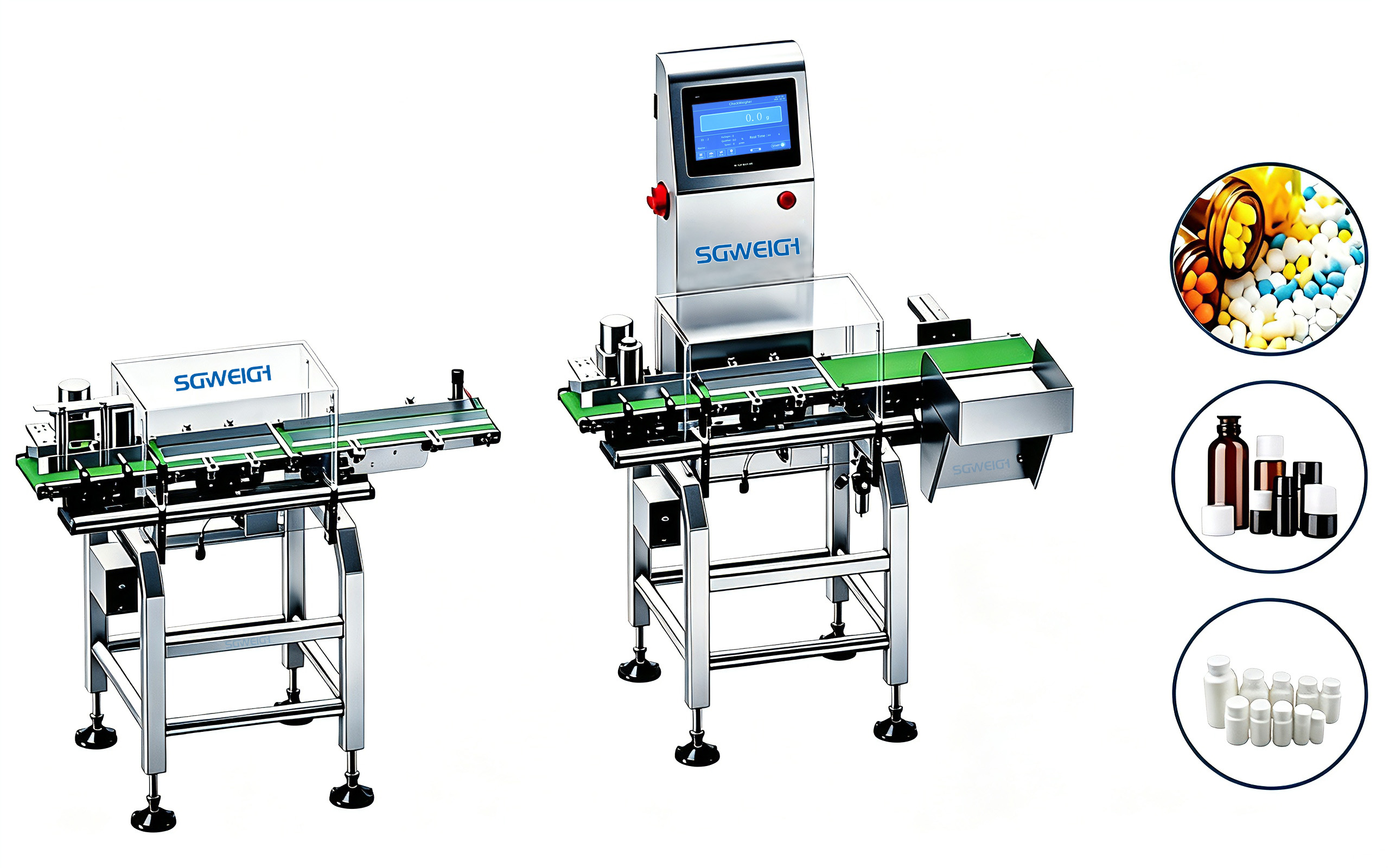

The Bottle Production Line Checkweigher is an advanced automatic weighing system designed for high-precision net weight inspection of bottled products. Unlike conventional checkweighers that only measure the total weight of a filled bottle, this system uses two coordinated checkweighing units—Checkweigher A and Checkweigher B—to measure tare weight and gross weight separately.
Checkweigher A first measures the tare weight of each empty bottle and transmits the individual tare weight data to Checkweigher B in real time. After the bottle is filled with tablets, capsules, liquid, powder, granules, or other products, Checkweigher B measures the total weight of the filled bottle.
The control system automatically calculates:
Net Product Weight = Filled Bottle Gross Weight − Empty Bottle Tare Weight
The calculated net weight is then compared with preset upper and lower weight limits. Bottles with an acceptable net weight continue to the next packaging process, while underweight or overweight products are automatically detected and rejected.
By measuring the actual tare weight of each individual empty bottle, the system helps compensate for variations in bottle weight and provides more reliable net content inspection than gross-weight-only checking. This makes the tare and gross bottle checkweigher system suitable for automated bottling lines where precise filling verification and continuous quality control are required.
■ Technical Data

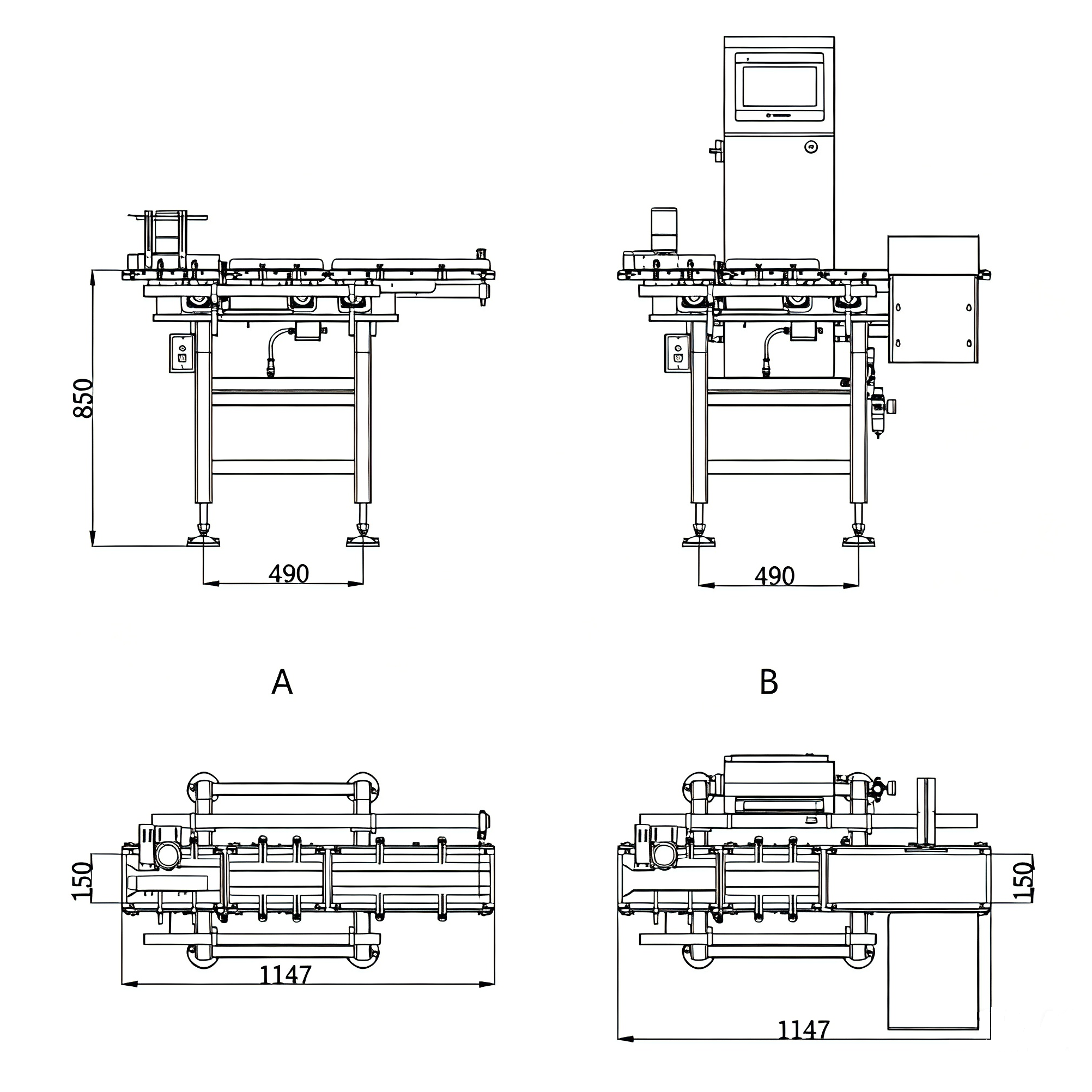

| Type | SG-150AB |
| Weighing Range | 3-500g |
| Limited of product | L: 200 W:150 H: 3-200mm |
| Accuracy | ±0.1g Depends on product |
| Division Scale | 0.1g |
| Belt Speed | 0- 60m/min |
| Max Speed | 150 pcs/min |
| Belt Width | 150mm |
| Machine Weight | 160kg |
| Power Supply | AC 110/220V±10% 50HZ |
| Power | 200W |
| Main Material | SUS304/316 stainless steel |
■ Product Highlights
1.Individual Empty Bottle Tare Weighing – Measures the actual tare weight of every empty bottle.
2.Dual Checkweigher Data Synchronization – Checkweigher A and B exchange weighing data in real time.
3.Automatic Net Weight Calculation – Automatically calculates the actual weight of the product inside each bottle.
4.High-Precision Filling Verification – Helps identify insufficient or excessive filling.
5.Automatic Underweight and Overweight Rejection – Removes non-conforming bottles without manual intervention.

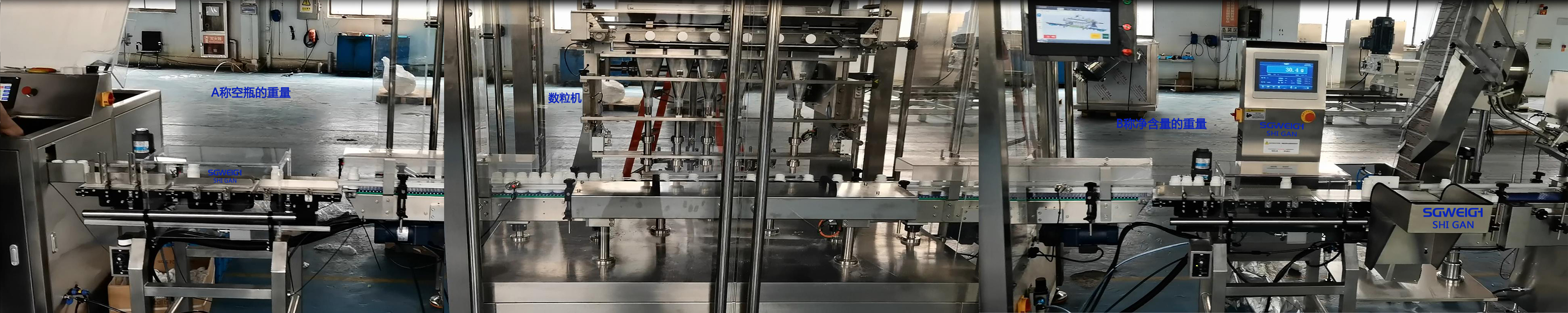

6.Production Line Integration – Can be connected with bottle unscramblers, counting machines, filling machines, capping machines, labeling machines, and other packaging equipment.
7.Real-Time Weight Monitoring – Continuously monitors production and weighing results.
8.Product Recipe Management – Supports different bottle sizes, target weights, and tolerance settings.
9.Production Data Statistics – Records inspection quantities, qualified products, rejected products, and weight data.
10.Customized Bottle Handling System – Conveyor and bottle transfer mechanisms can be customized according to bottle dimensions and production requirements.
■ Industry Applications
■ Company Profile
■ Cooperative Clients
■ Exhibition
■ Package & Logistics
Packaging
● All products are packed in standard export-grade packaging to ensure maximum protection during transportation.
● Each unit is wrapped with plastic film and foam, fixed firmly with inner support, and placed in a strong carton or plywood case.
● All corners and fragile parts are specially protected to prevent collision, scratch and damage.
Shipping
● We support sea freight, air freight and international express (DHL, FedEx, UPS, TNT) according to customer requirements.
● Goods will be carefully loaded and inspected before delivery.
● A complete tracking number will be provided once shipped, so you can monitor the whole logistics process.
● We cooperate with reliable forwarders to ensure safe, on-time and cost-effective delivery.
