◆ Product Overview

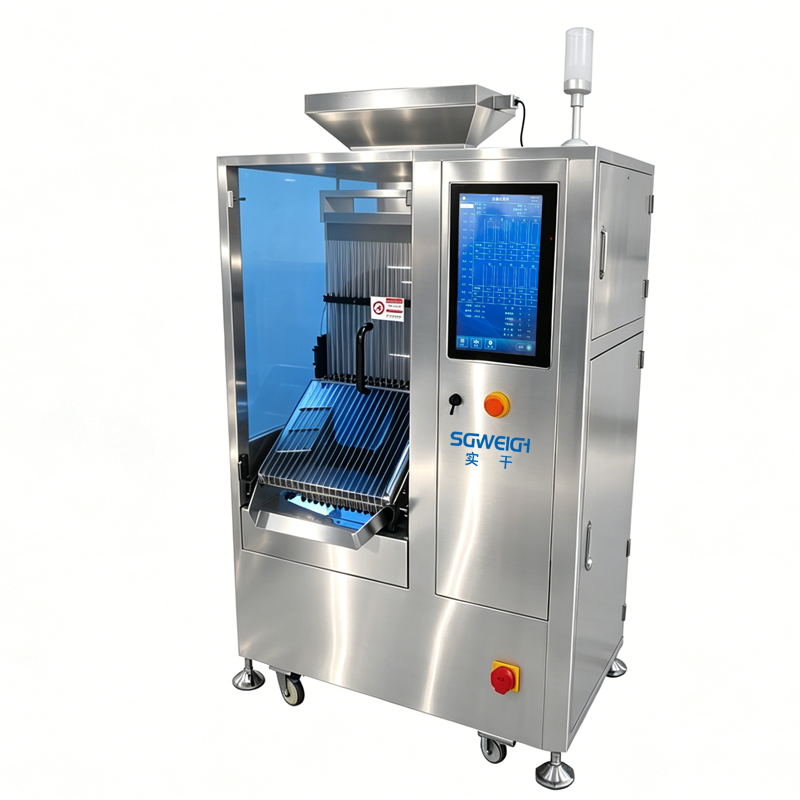

A 20 Lane Capsule Checkweigher is a high-precision pharmaceutical weighing system designed for simultaneous weight inspection of capsules across twenty production lanes. It is widely used in pharmaceutical manufacturing facilities to ensure capsule filling accuracy, product consistency, and compliance with GMP and regulatory standards.
This advanced Multi-lane Capsule Checkweigher automatically detects underweight, overweight, and empty capsules during high-speed production. By providing real-time weight monitoring and automatic rejection, it helps manufacturers improve product quality, reduce material waste, and maintain strict dosage control.
◆ Technical Parameters
| Type | SG-C20 |
| Weighing scope | 5-2000mg |
| Display scale | 0.1mg |
| Highest sorting accuracy | ±0.5mg |
| product specification | Capsule: 00#-5#（Other sizes or shapes subjrct to testing） |
| Highest sorting ability | 15 0,000 PCS/HR |
| Number of columns | 20 Lane |
| Power supply | AC-220V 50HZ |
| Compressed air | 0.3-0.9Mpa |
| Use environment | 15~30℃ The temperature change during use should not exceed the range of 1℃/h、Humidity 30~70% RH (but no condensation) |
| Shell material | SUS304/316 |
◆ Key Advantages
1.Simultaneous weighing of capsules from up to 20 production lanes.
2.High-speed and high-accuracy dynamic weighing technology.
3.Automatic rejection of underweight and overweight capsules.
4.Real-time weight monitoring and statistical analysis.
5.Touchscreen HMI with user-friendly operation.
6.GMP-compliant stainless steel construction.
7.Easy integration with capsule filling machines.
8.Recipe management and data storage functions.
9.Optional audit trail and 21 CFR Part 11 compliance.
10.Low-maintenance design for continuous operation.
◆ Application Scope
The 20-lane design significantly increases inspection capacity, making it ideal for large-scale capsule filling lines producing hard gelatin capsules, HPMC capsules, and nutraceutical products.
◆ About Us
◆ Client Cases
◆ Exhibition Events
◆ Packaging & Shipping
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
