■ Product Brief

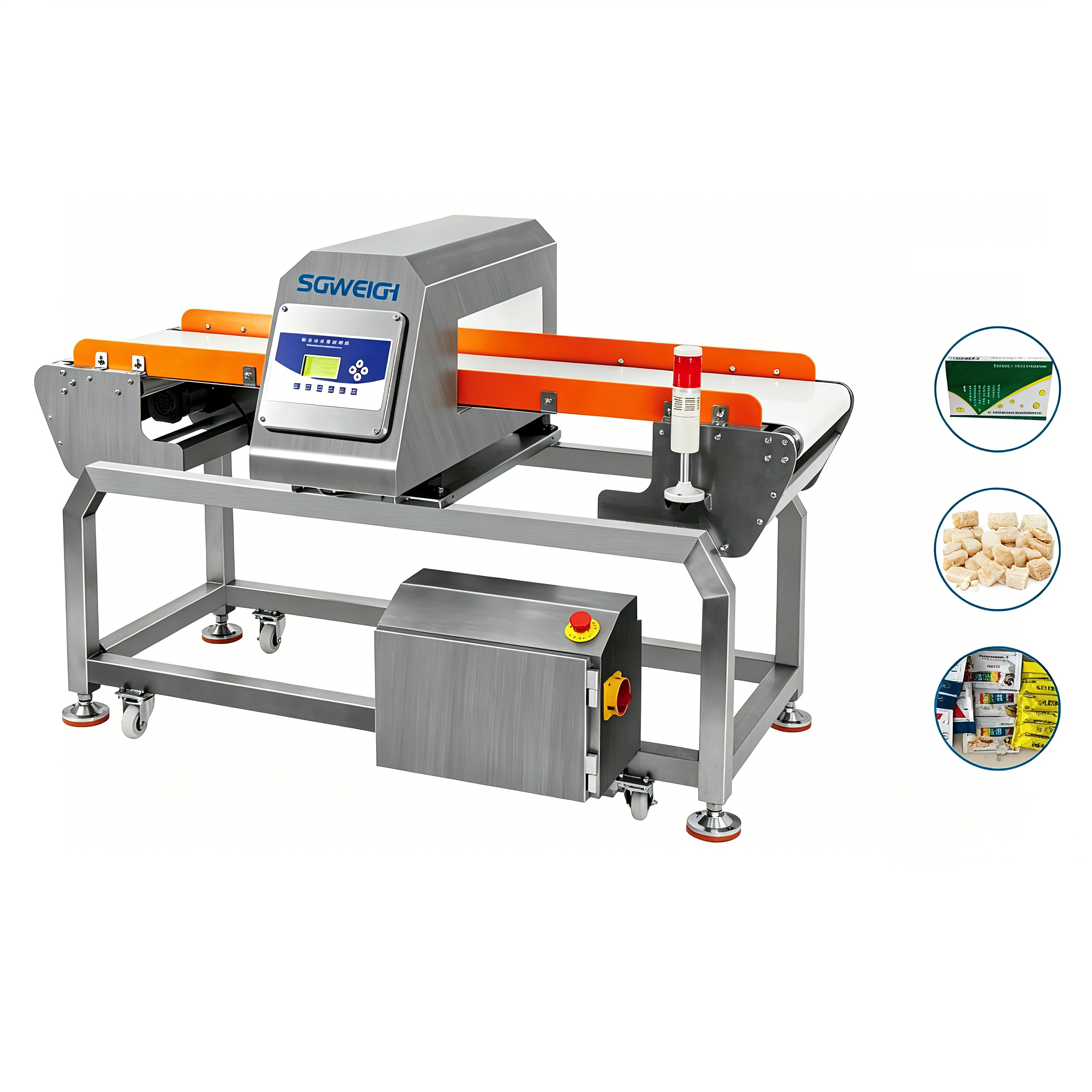

An Industrial Conveyor Metal Detector provides continuous, non-destructive inspection without significantly affecting production speed. By installing the system at critical control points in a production line, manufacturers can detect accidental metal contamination before products reach the next processing stage or final shipment.
The system is particularly suitable for automated factories requiring reliable inline metal contamination detection, consistent product quality, reduced manual inspection, and efficient rejection of contaminated products.
For manufacturers searching for a High-Sensitivity Metal Detector for production lines, this system provides a flexible and reliable solution that can be customized according to product size, conveyor speed, detection sensitivity, and production environment.
■ Technical Data
| Type | SG-M400 |
| Detect method | Electromagnetic wave detection |
| Detecting width | 150-1000mm (accept custom） |
| Detecting height | 80-500mm (accept custom） |
| Detecting sensitivity | Fe 0.8mm, Non-Fe1.5mm, SUS 1.5mm |
| Detecting adjustment | Intelligent adjustable |
| Belt Speed | 25m /min (or specified) |
| Protection class | IP65 |
| Conveyor belt material | food grade PU belt |
| Machine weight | about 125kg |
| Power | 200W |
| Power supply | AC220V,50/60Hz (Or Customized) |
| Alarm mode | The buzzer alarm, the motor automatically stop |
■ Product Highlights
1.Automatic Online Inspection – Continuously inspects products while they move through the production line.
2.High Detection Sensitivity – Advanced signal processing technology provides stable detection of small metal contaminants.
3.Automatic Rejection – Optional pusher, air blast, flap, drop-belt, or stop-alarm rejection systems automatically remove contaminated products.
4.Production Line Integration – Easily connects with packaging machines, conveyors, checkweighers, and other automated equipment.
5.Automatic Product Learning – Optimizes detection parameters according to different product characteristics.
6.Data and Alarm Monitoring – Records detection events and provides visual or audible alarms when metal contamination is identified.
7.Customized Conveyor Design – Conveyor dimensions, detection aperture, belt speed, and rejection mechanisms can be customized for different applications.
■ Industry Applications
■ Company Profile
■ Cooperative Clients
■ Exhibition
■ Package & Logistics

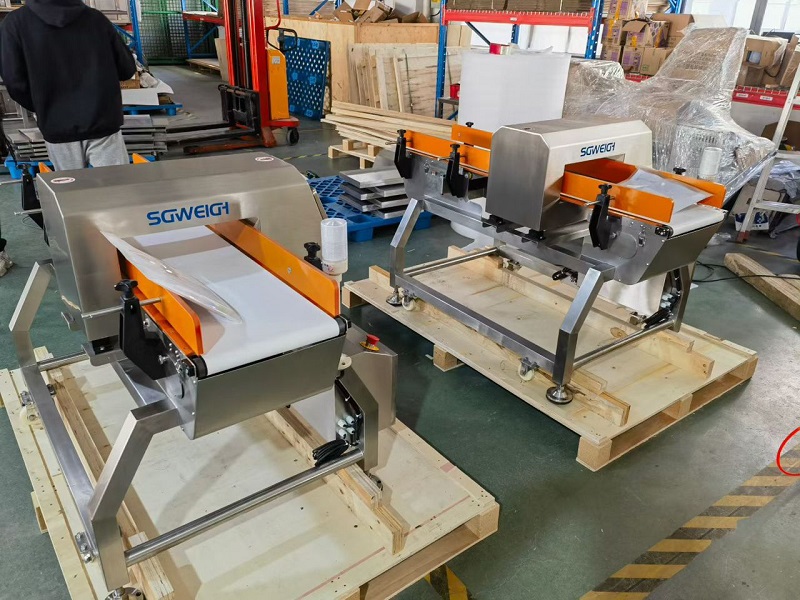

● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
