◆ Product Overview

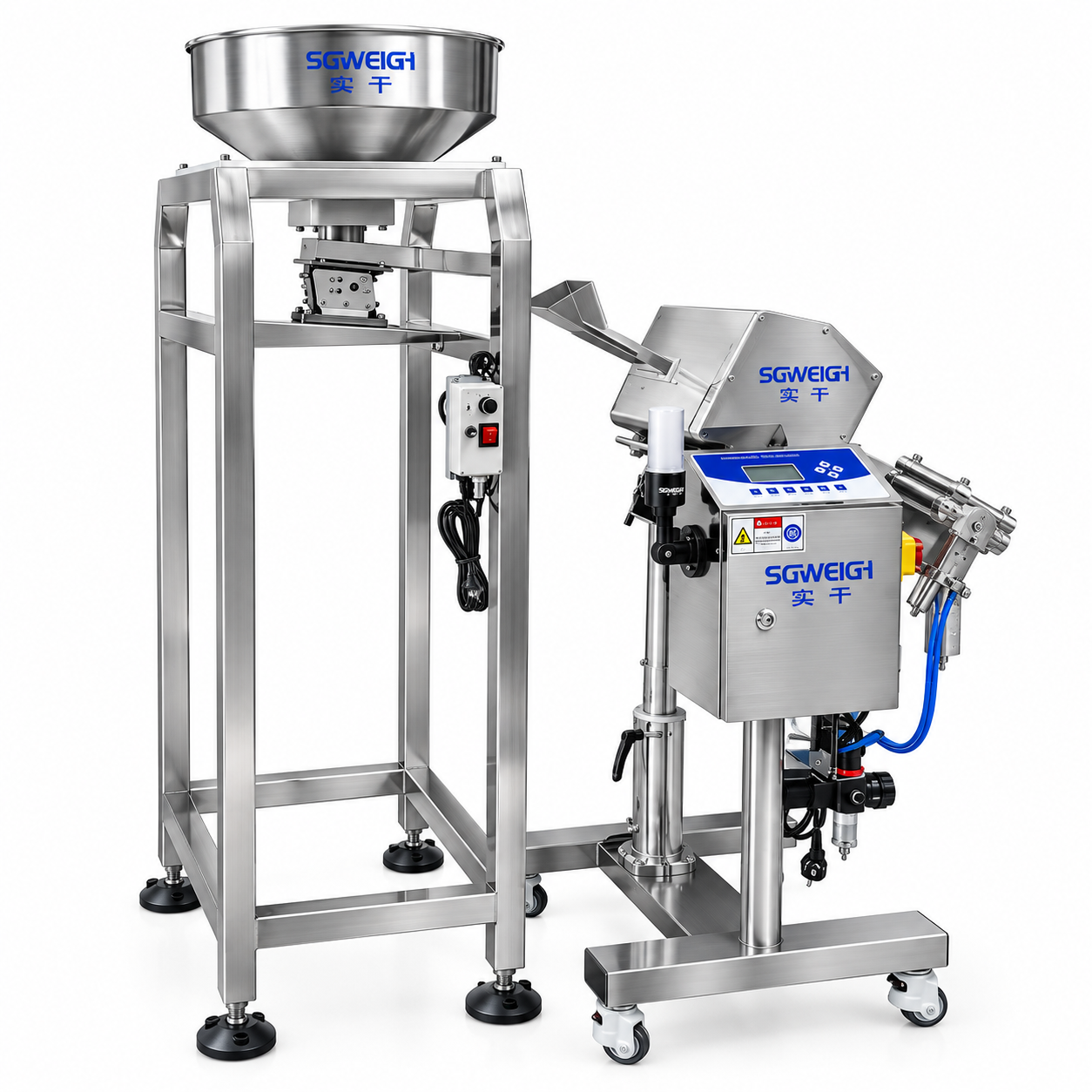

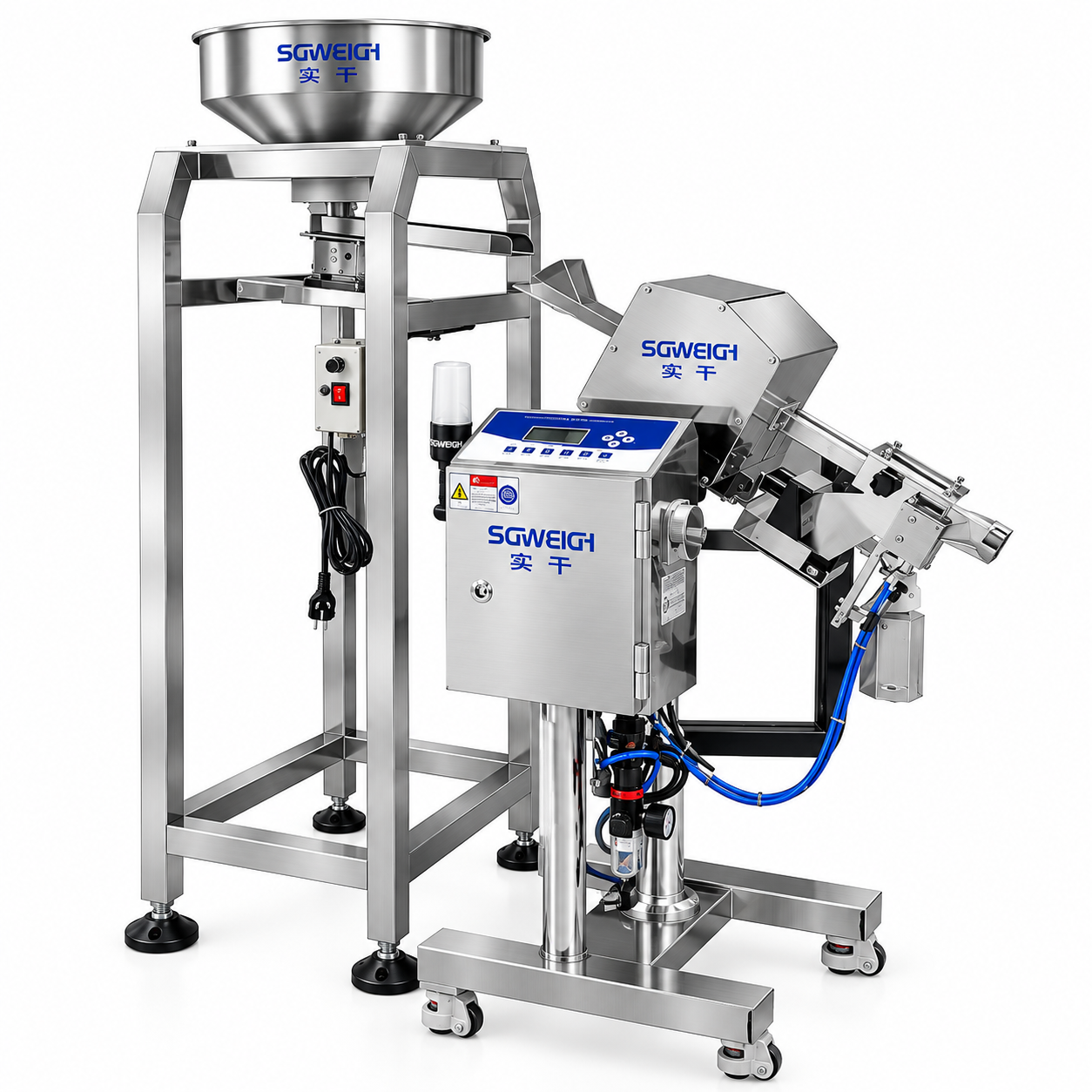

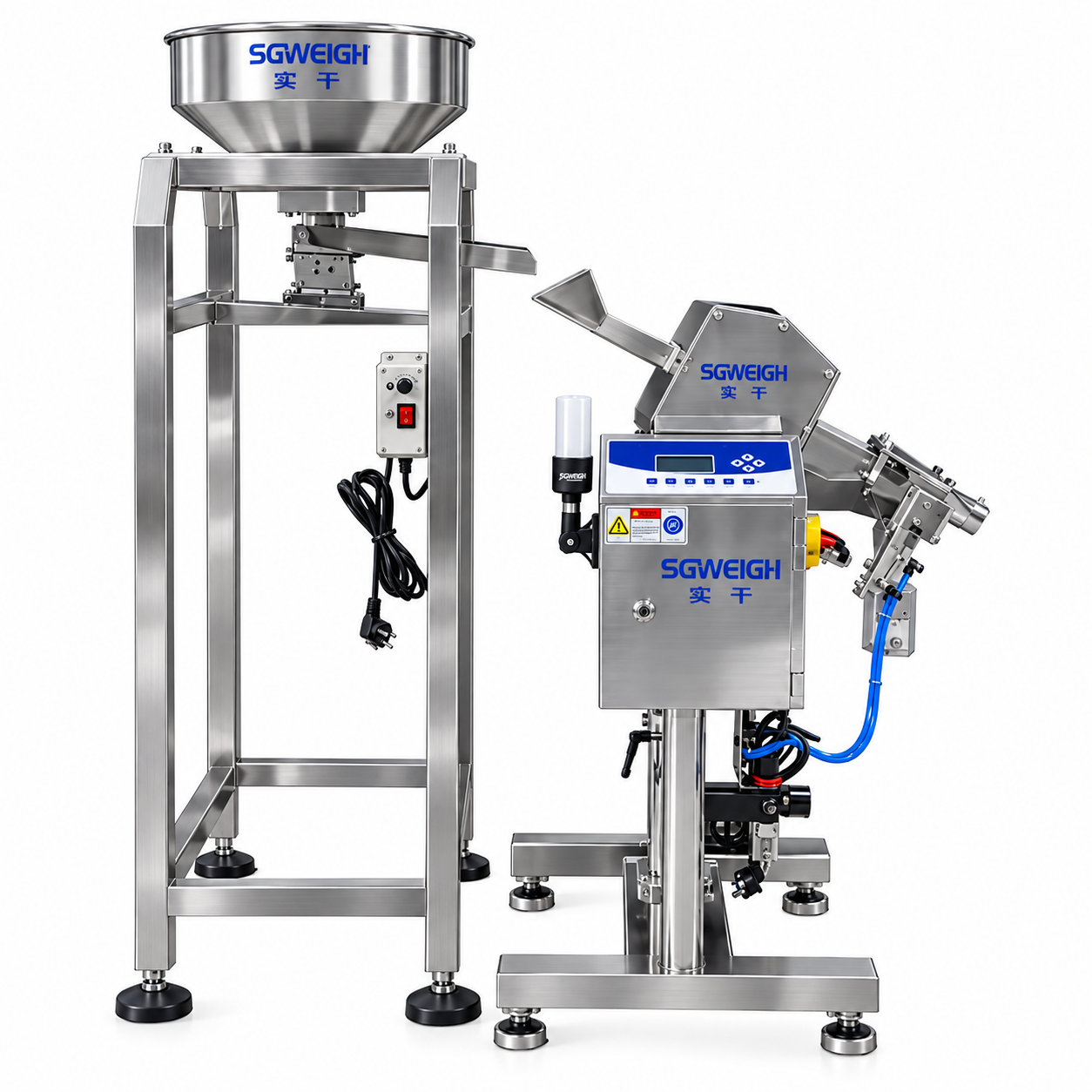

The Pharmaceutical Metal Detector is designed to detect metal contaminants in pharmaceutical products, including tablets, hard capsules, and granular materials. It helps pharmaceutical manufacturers identify potential metal foreign bodies during production and supports product quality control before downstream packaging.
This pharmaceutical Metal Detection System can be integrated into tablet compression lines, capsule filling lines, granulation and powder processing lines, and other pharmaceutical production processes. Depending on the product format, it can be configured for tablet and capsule inspection on a conveyor or chute, or for bulk powder and granule inspection through a gravity-fed system.
Designed for pharmaceutical production environments, the equipment can feature product-specific detection settings, adjustable sensitivity, an automatic reject system, and easy-to-clean product-contact components, depending on the model configuration.
◆ Technical Parameters
| Type | SG-MC70 |
| Inlet height | 770-930mm Port size: 76mm |
| Outlet Height | 770-860mm Port size: 51mm |
| Effective passing size | W70*H20mm |
| Maximum production capacity | 500k pcs/hour |
| Sensitivity(adjustable or not) | Yes |
| Operation Mode | Touch Screen/LED fast key input |
| Removal method | flip culling |
| Working voltage | 220V/110V, 50/60HZ |
| Protection class | IP65 |
◆ Key Advantages
1. High-Sensitivity Metal Detection
Detects suitable ferrous, non-ferrous and stainless-steel contaminants, subject to the machine configuration, product effect and validated detection limits.
2. Multi-Product Inspection
Suitable configurations are available for tablets, hard capsules ,granules and compatible pharmaceutical powders.
3. Automatic Rejection
Triggers a configured rejection mechanism when metal contamination is detected, helping separate suspect products from accepted products.
4. Production Line Integration
Can be installed at suitable inspection points after tablet pressing, capsule processing, granulation or before packaging, depending on the application.
5. Parameter Setting and Monitoring
Depending on the model, operators can configure product recipes, detection parameters, alarms and rejection settings through the control interface.
6. Easy Cleaning and Maintenance
Application-specific product-contact components and accessible inspection areas can help simplify cleaning, product changeovers and routine maintenance.
◆ Application Scope
Tablet Metal Detection: Inspects compressed tablets for potential metal contamination after tablet pressing and dust removal.
Capsule Metal Detection: Detects metal contaminants in hard capsules before packaging.
Granule Metal Detection: Inspects pharmaceutical granules and suitable bulk materials during material processing.
Pharmaceutical Powder Inspection: Detects metal contaminants in compatible powdered raw materials and active pharmaceutical ingredients (APIs).
Production Line Integration: Connects with upstream pharmaceutical processing equipment and downstream collection or packaging systems.
◆ About Us
◆ Client Cases
◆ Exhibition Events
◆ Packaging & Shipping
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
