◆ Product Overview

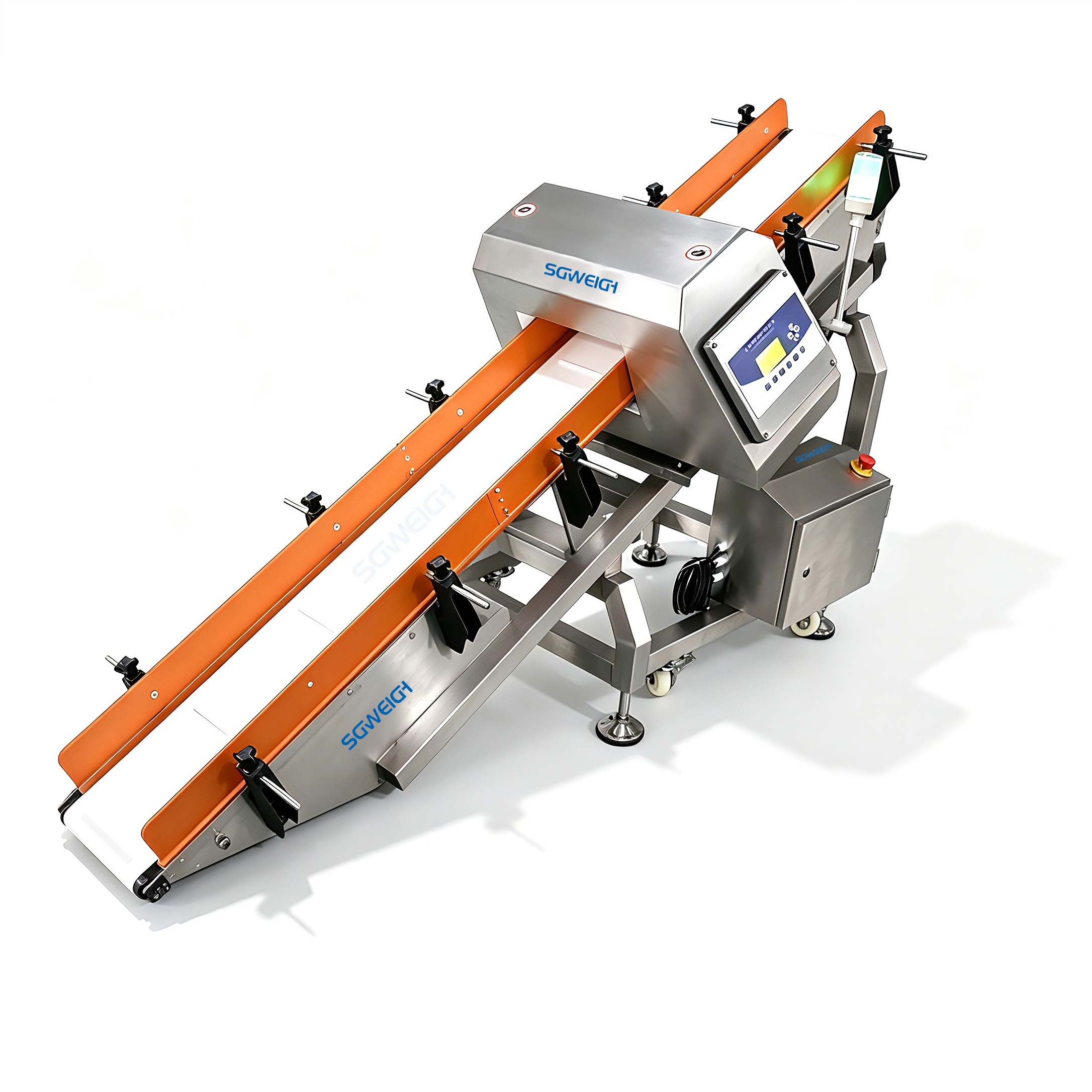

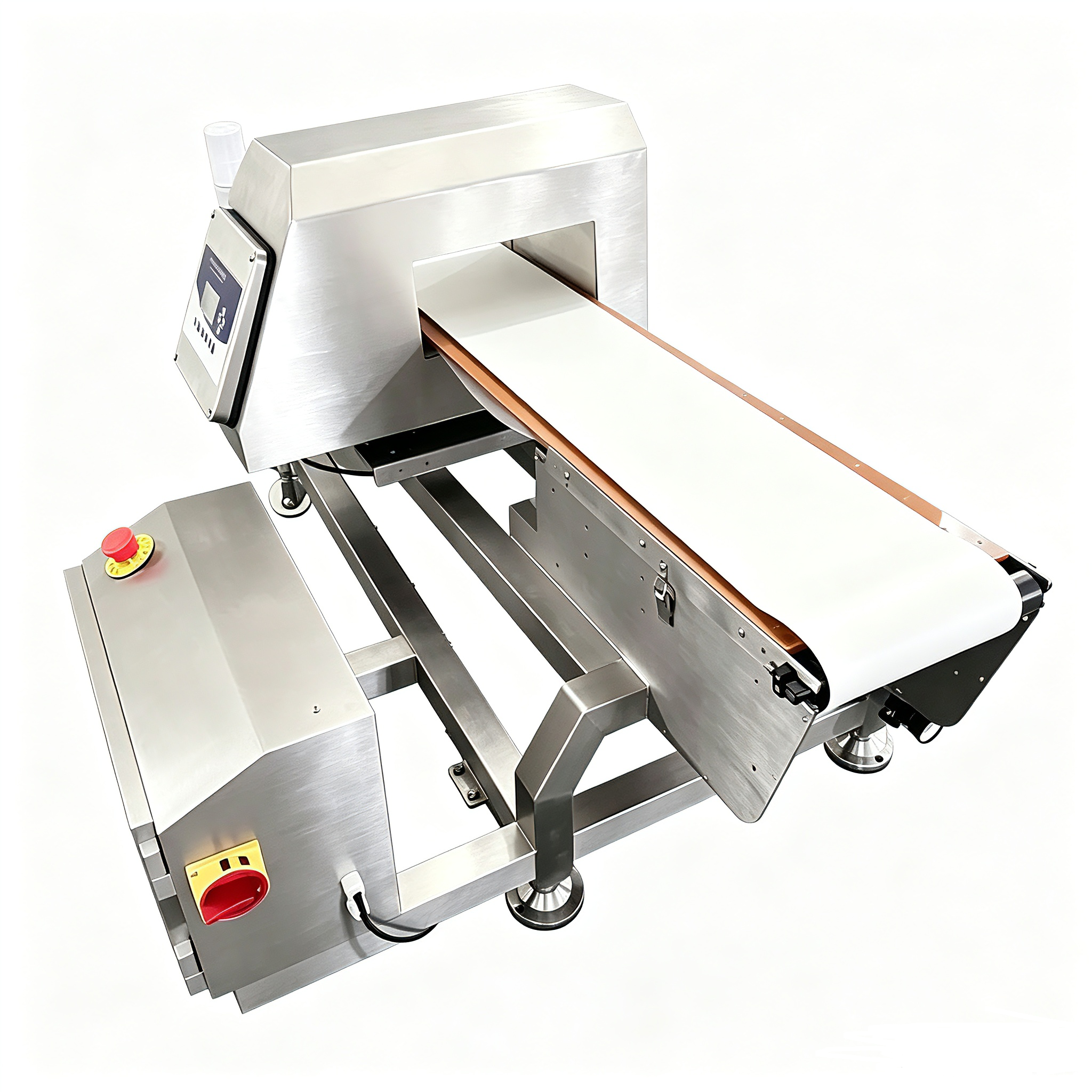

The Custom-Angle Inclined Conveyor Metal Detector is designed for continuous metal contamination inspection of packaged products transported on an inclined conveyor.Bagged Products Metal Detector is suitable for bagged food, snacks, frozen products, agricultural products, sauces, powders, and other packaged goods where the production line requires an inclined conveying and metal detection solution.
The conveyor inclination angle can be customized according to product characteristics, package dimensions, conveyor layout, discharge height, and downstream equipment requirements. This flexible design allows the metal detector to integrate smoothly into existing packaging and production lines.
◆ Technical Parameters
| Name | Inclined Metal Detector |
| Detection sensitivity | Fe≥Φ0.8mm, Non-Fe≥Φ1.2mm, SUS≥Φ1.5mm |
| Conveyor Type | Inclined Belt Conveyor |
| Inclination Angle | 15°–45° (Customizable) |
| Detecting Width | 150-1000mm(Customizable) |
| Belt Width | Customized |
| Belt Speed | 25m /min (or specified) |
| Reject System | Alarm & Stop / Air Blast / Pusher / Flipper / Retracting Belt (Optional) |
| Protection Rating | IP65 (Optional) |
| Power Supply | AC 220V ±10%, 50/60Hz (110V Optional) |
◆ Key Advantages
- Customizable Inclined Conveyor Angle – Conveyor angle can be configured according to the production line layout and product handling requirements.
- High‑Sensitivity Metal Detection – Detects ferrous, non‑ferrous, and stainless steel contaminants.
- Automatic Product Rejection – Removes contaminated bags automatically without interrupting continuous production.
- Bagged Product Inspection – Suitable for pouches, bags, sachets, and other packaged products.
- Stable Conveyor Transport – Helps maintain consistent product positioning through the metal detection aperture.
- Adjustable Conveyor Speed – Supports different production rates and process requirements.
- User‑Friendly HMI – Easy parameter setup, sensitivity adjustment, alarm monitoring, and production management.
- Product Memory – Stores inspection parameters for different products and simplifies changeover.
- Alarm and Fault Monitoring – Provides immediate alerts for metal detection and system abnormalities.
- Easy Cleaning and Maintenance – Hygienic conveyor construction supports convenient cleaning and routine maintenance.
- Production Line Integration – Can be connected with upstream packaging machines, conveyors, checkweighers, and downstream equipment.
- Customized Configuration – Conveyor dimensions, detection aperture, reject device, speed, and inclination angle can be customized.
◆ Application Scope
◆ About Us
◆ Client Cases
◆ Exhibition Events
◆ Packaging & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
