■ Product Brief

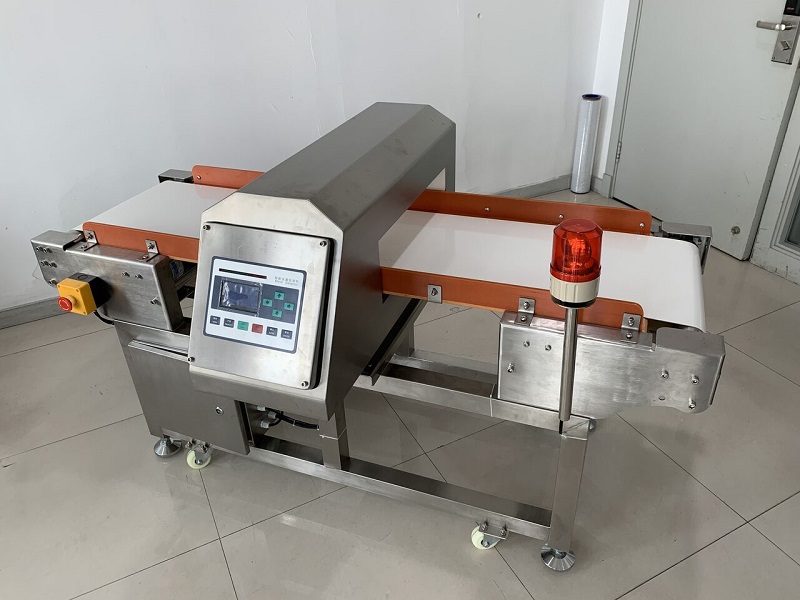

The Box Carton Bag Conveyor Metal Detector is an inline inspection system designed to detect metal contaminants in finished products before they leave the production or packaging line. Installed on a conveyor after filling, sealing, labeling, or final packaging, the system provides continuous inspection and automatic rejection of contaminated products.
The Inline Metal Detector can detect ferrous, non-ferrous, and stainless-steel contaminants in a wide range of packaged and unpackaged products. It can be integrated directly into existing conveyor and packaging lines, making it suitable for automated quality control and final product inspection.
■ Technical Data
| Type | SG-M400 |
| Detect method | Electromagnetic wave detection |
| Detecting width | 150-1000mm (accept custom） |
| Detecting height | 80-500mm (accept custom） |
| Detecting sensitivity | Fe 0.8mm, Non-Fe1.5mm, SUS 1.5mm |
| Detecting adjustment | Intelligent adjustable |
| Belt Speed | 25m /min (or specified) |
| Protection class | IP65 |
| Conveyor belt material | food grade PU belt |
| Machine weight | about 125kg |
| Power | 200W |
| Power supply | AC220V,50/60Hz (Or Customized) |
| Alarm mode | The buzzer alarm, the motor automatically stop |
■ Product Highlights
1. High‑sensitivity detection of ferrous, non‑ferrous and stainless‑steel contaminants.
2. Continuous inline inspection for finished products.
3. Automatic rejection of contaminated products.
4. Conveyor‑integrated metal detection system.
5. Adjustable detection sensitivity for different products.
6. Multiple product settings for quick product changeover.
7. Stainless‑steel hygienic construction.
8. Suitable for dry, wet and demanding production environments.
9. Touchscreen control and easy parameter management.
10. Can be integrated with checkweighers and other inspection equipment.
11. Optional reject devices including pusher, air blast, drop flap or conveyor stop.
12. Suitable for high‑speed automated production lines.
■ Industry Applications
■ Company Profile
■ Cooperative Clients
■ Exhibition
■ Package & Logistics
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
