◆ Product Overview

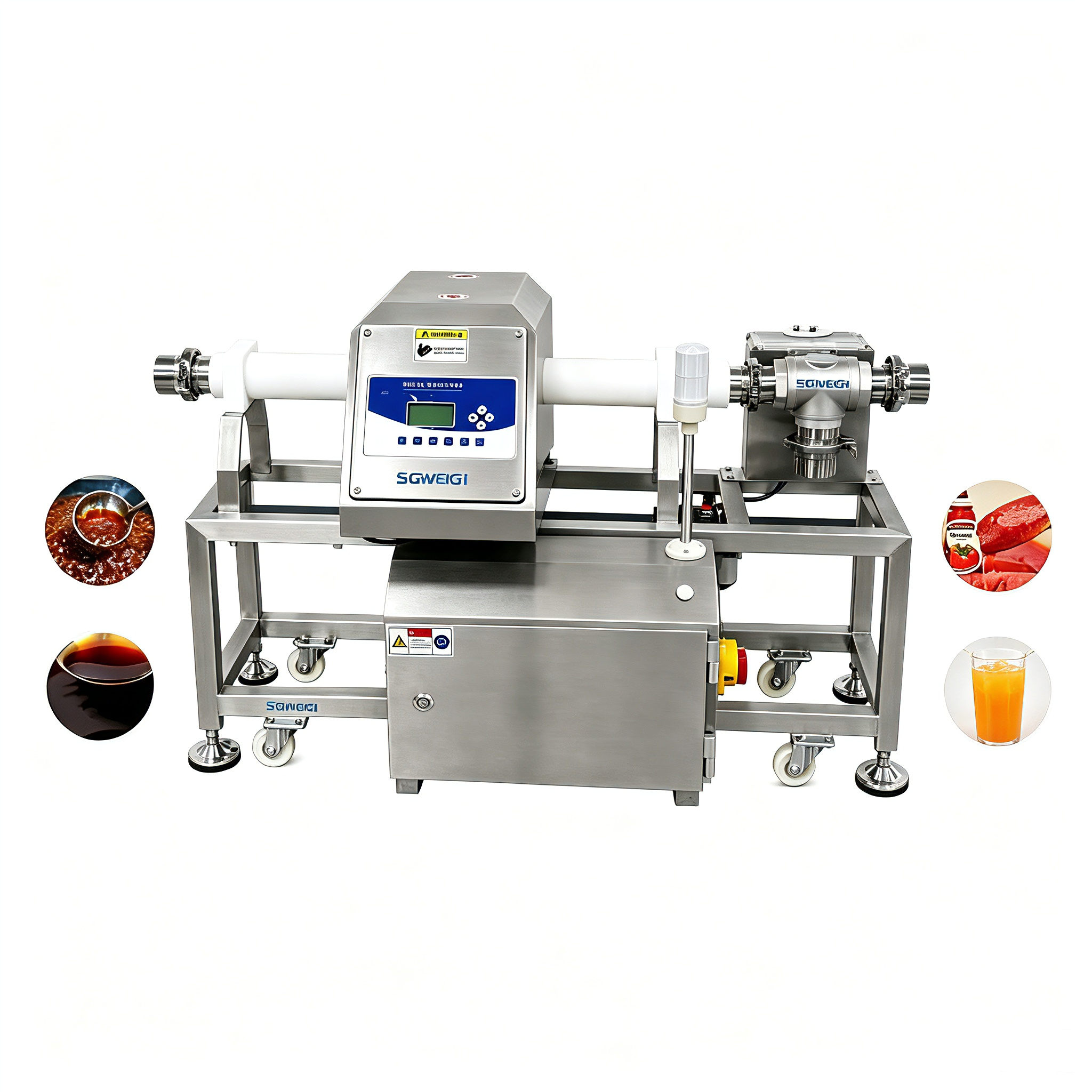

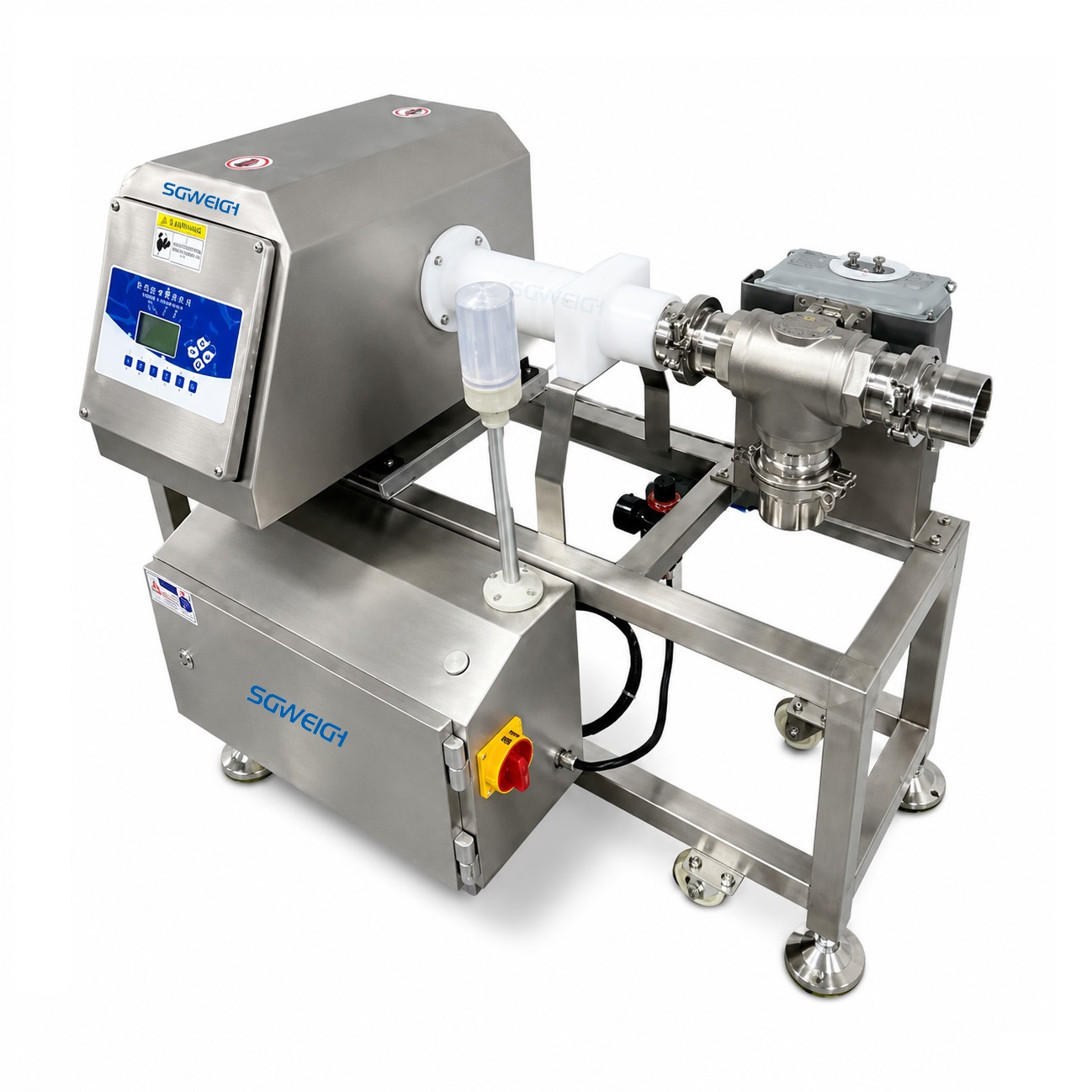

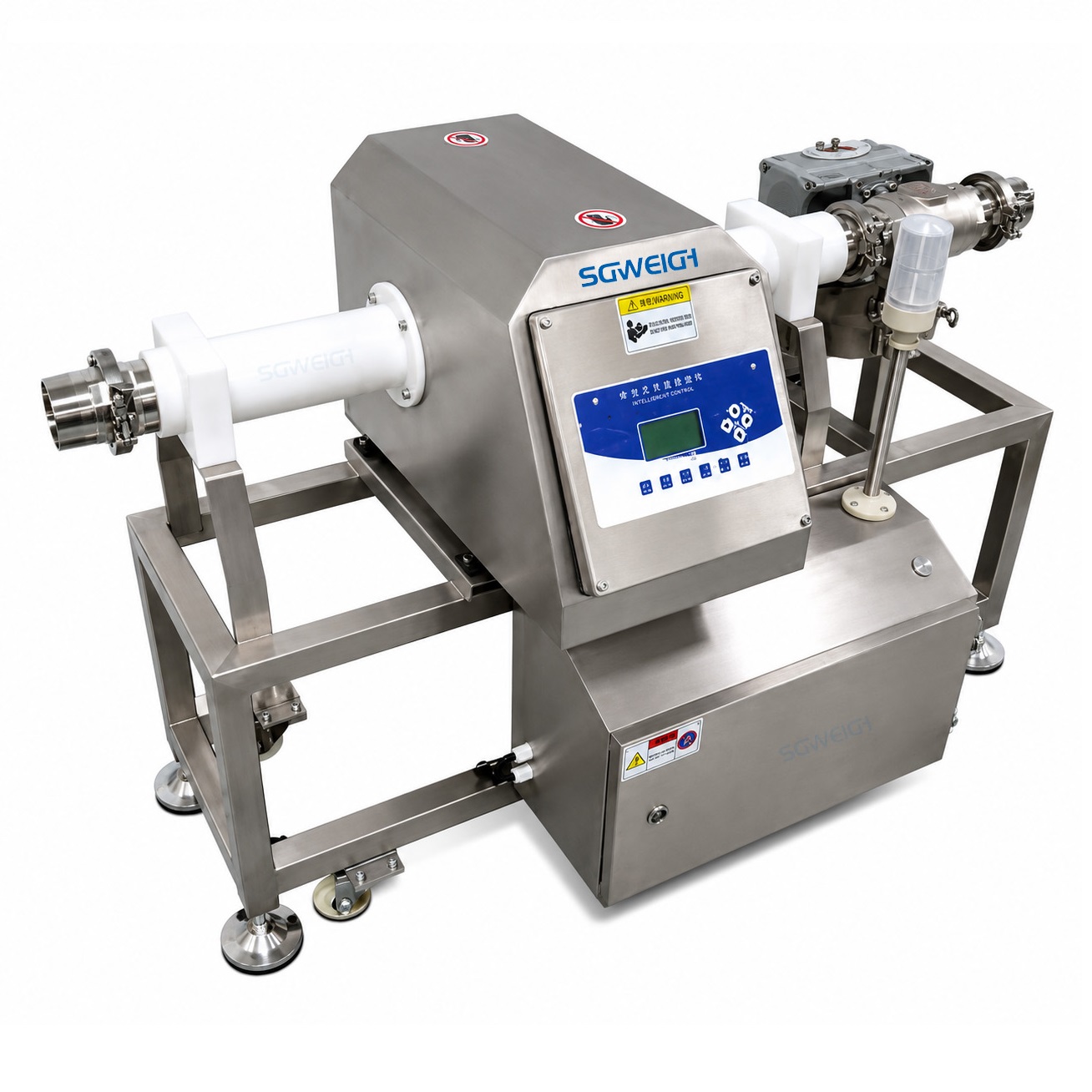

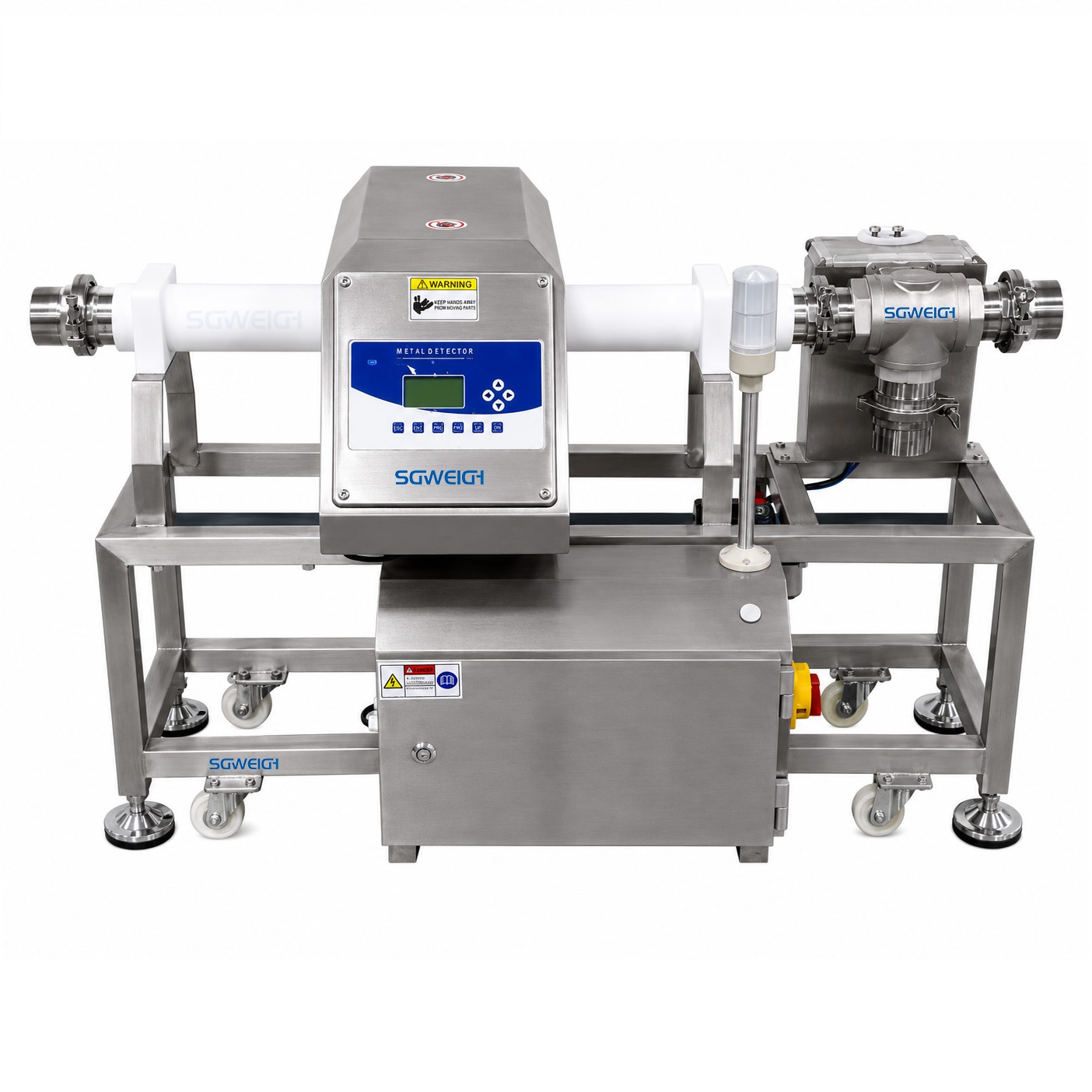

An Inline Pipeline Metal Detector is a specialized quality-control inspection system designed to identify and reject metallic contaminants in viscous liquids, pastes, slurries, and semi-solid fluids as they travel under pressure through processing pipelines.Liquid Metal Detection Systems are installed directly before the filling or packaging phase. This positioning protects downstream processing machinery, ensures compliance with stringent international food safety standards, and prevents costly product recalls.
◆ Technical Parameters
| Type | SG-ML80 | SG-ML100 | SG-ML150 | SG-ML200 | |
| Pipe inner diameter | 80 | 100 | 150 | 200 | |
| Detection sensitivity | Fe（φ） | 0.6 | 0.8 | 1.0 | 1.0 |
| SUS304（φ） | 1.2 | 1.5 | 1.5 | 2.0 | |
| Pipe flow t/h | 2 | 4 | 8 | 15 | |
| Deadweight of Machine | 120kg | 140kg | 160kg | 180kg | |
| Detected product form | Sauces, fruit purees, chocolate syrups, dairy products, beverages, viscous fluids, etc. | ||||
| Air source requirement | ≥0.5MPa | ||||
| Alarm Way | When metal is detected, it will be alarmed and automatically rejected | ||||
| Pipe material | PP | ||||
◆ Key Advantages
1.Multi-Frequency DSP Technology
Features Advanced Digital Signal Processing (DSP) and multi-frequency operation to eliminate the “product effect” caused by wet, conductive, or high-salt liquids (e.g., sauces, brine, or cheese).
2.High-Sensitivity Contaminant Detection
Detects microscopic ferrous (Fe), non-ferrous (Cu, Al), and non-magnetic stainless steel (SS 304/316) contaminants down to sub-millimeter sphere sizes.
3.anitary & Hygienic Construction
Built with full food-grade 304/316L stainless steel, IP65/66-rated washdown enclosure.
4.Fast Automated Reject Mechanisms
Equipped with pneumatic rotary, piston, or three-way diverter valves to isolate contaminated batches instantly without slowing down line throughput.
5.Data Logging & Compliance Audit
Includes built-in event logging, USB/Ethernet connectivity, real-time clock, and multi-level password protection to support full HACCP, IFS, and GMP traceability.
◆ Application Scope
Food & Beverage: Tomato paste, ketchup, fruit purees, jams, chocolate, edible oils, soup stocks, and liquid cheese.
Dairy Industry: Milk, yogurt, cream, custard, and liquid ice cream mixes.
Pharmaceuticals & Cosmetics: Ointments, creams, gels, liquid soaps, toothpaste, and syrup suspensions.
