■ Product Brief

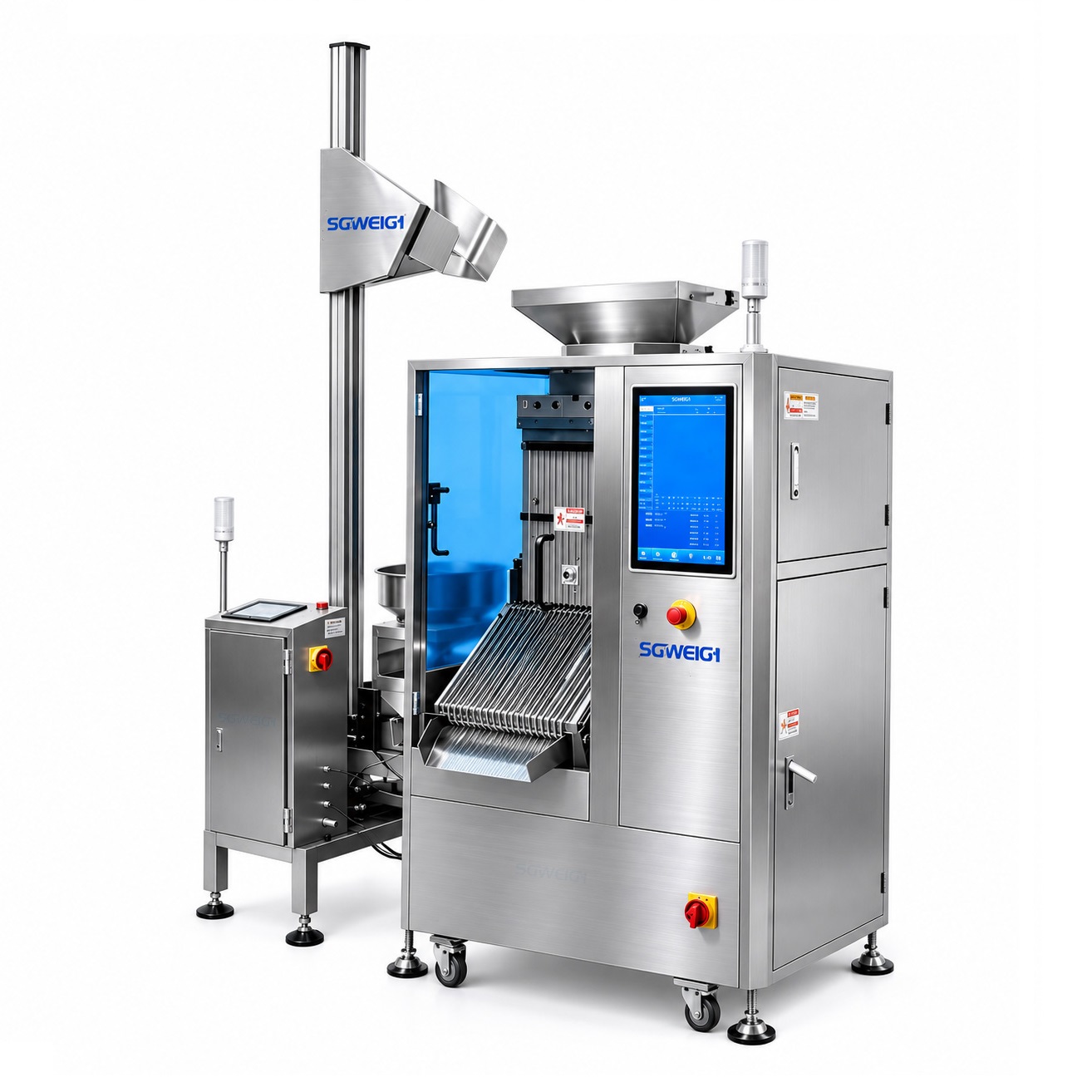

The Automatic Pharma Capsule Checkweigher is designed for high-accuracy, non-destructive weight inspection of pharmaceutical hard capsules on automated production lines. The integrated lifting device provides convenient height adjustment and product transfer, allowing the checkweigher to connect with capsule filling, conveying, counting, or downstream packaging equipment.
Each capsule is dynamically weighed and compared with the preset target weight and tolerance range. Capsules outside the specified limits can be automatically rejected, helping manufacturers identify underweight and overweight products while maintaining consistent production quality.
The Capsule Weight Inspection Machine is suitable for pharmaceutical manufacturing, capsule filling lines, quality control, batch inspection, and automated capsule production.
■ Technical Data
| Type | SG-C20 |
| Weighing scope | 5-2000mg |
| Display scale | 0.1mg |
| Highest sorting accuracy | ±0.5mg |
| product specification | Capsule: 00#-5#（Other sizes or shapes subjrct to testing） |
| Highest sorting ability | 15 0,000 PCS/HR |
| Number of columns | 20 Lane |
| Power supply | AC-220V 50HZ |
| Compressed air | 0.3-0.9Mpa |
| Shell material | SUS304/316 |
■ Product Highlights
1.Automatic capsule dynamic weighing
2.High-accuracy weight inspection
3.Lifting device for convenient height adjustment
4.Automatic underweight/overweight detection
5.Automatic reject of non-conforming capsules
6.Non-destructive capsule handling
7.PLC-based high-speed control
8.Touchscreen HMI for parameter setting
9.Real-time qualified/unqualified statistics
10.Recipe and parameter management
11.Production data recording and traceability
12.Easy integration with capsule production and packaging lines
13.Stainless-steel construction for pharmaceutical environments
■ Industry Applications
■ Company Profile
■ Cooperative Clients
■ Exhibition
■ Package & Logistics
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
