◆ Product Overview

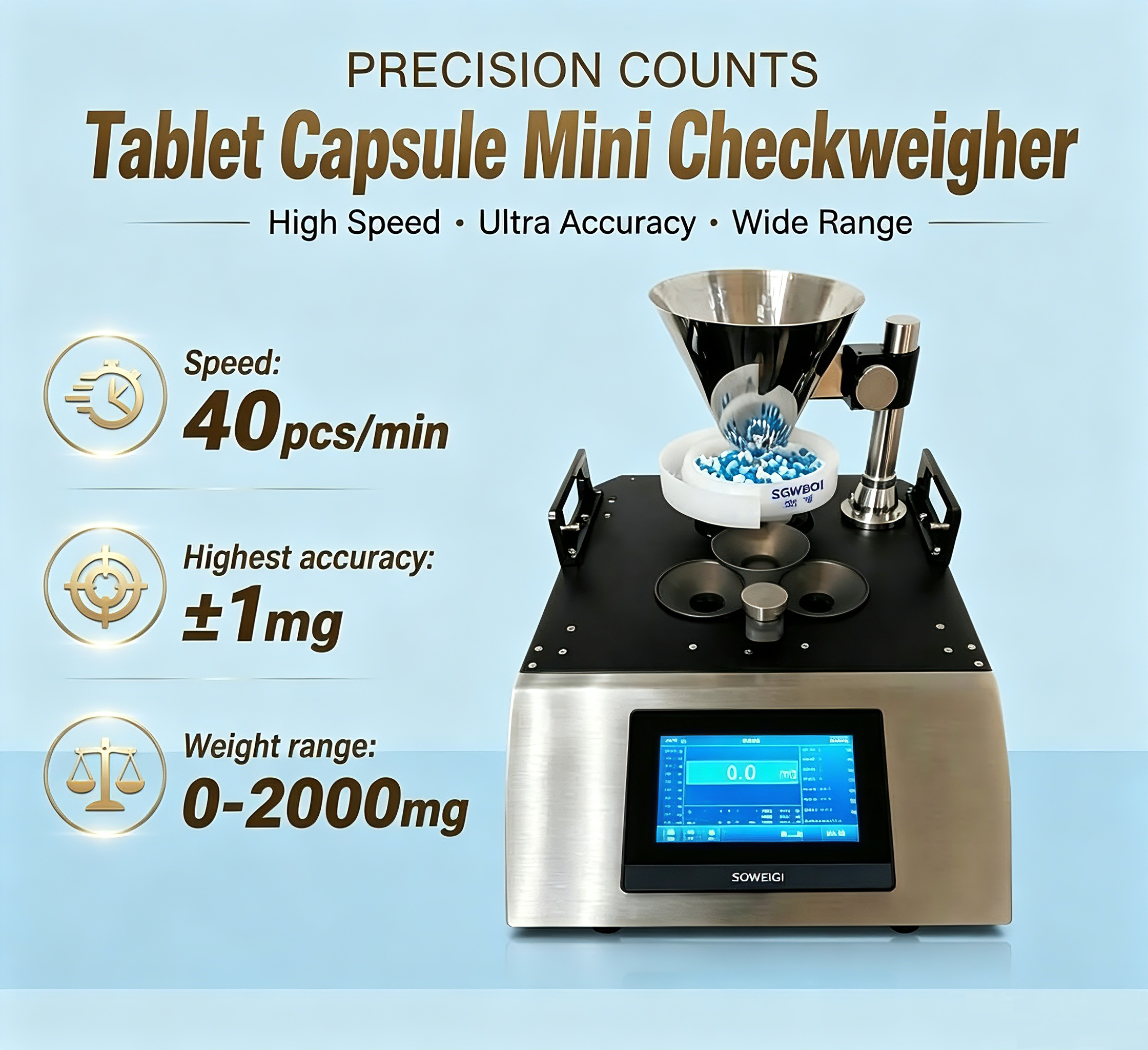

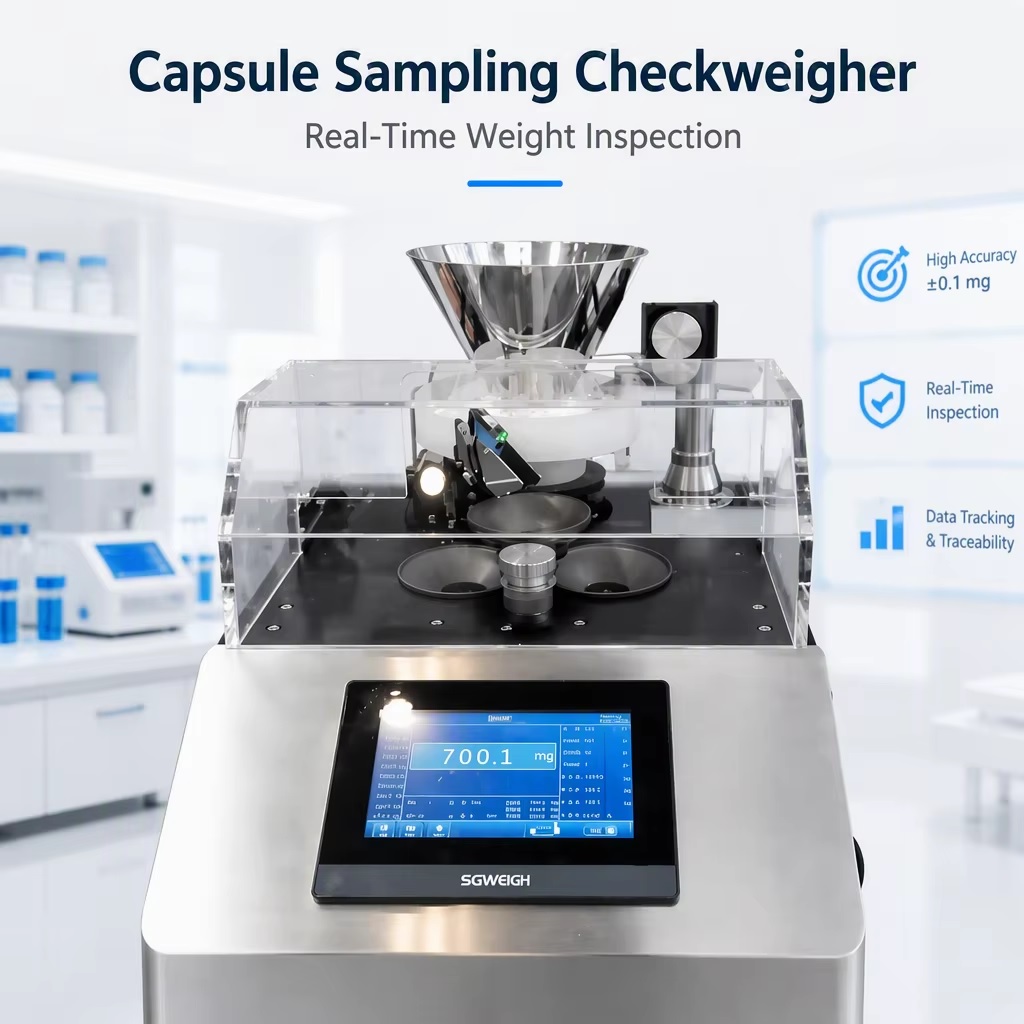

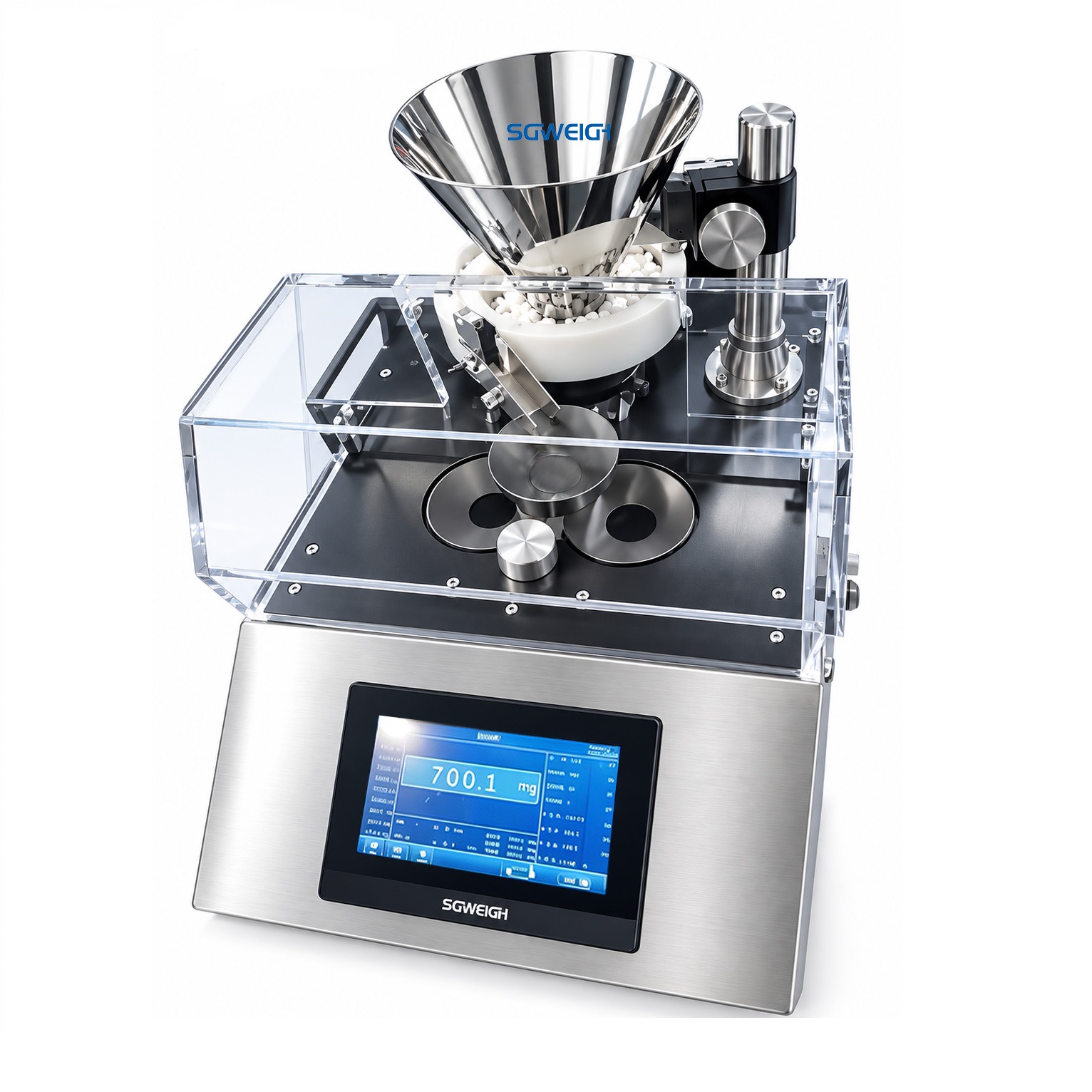

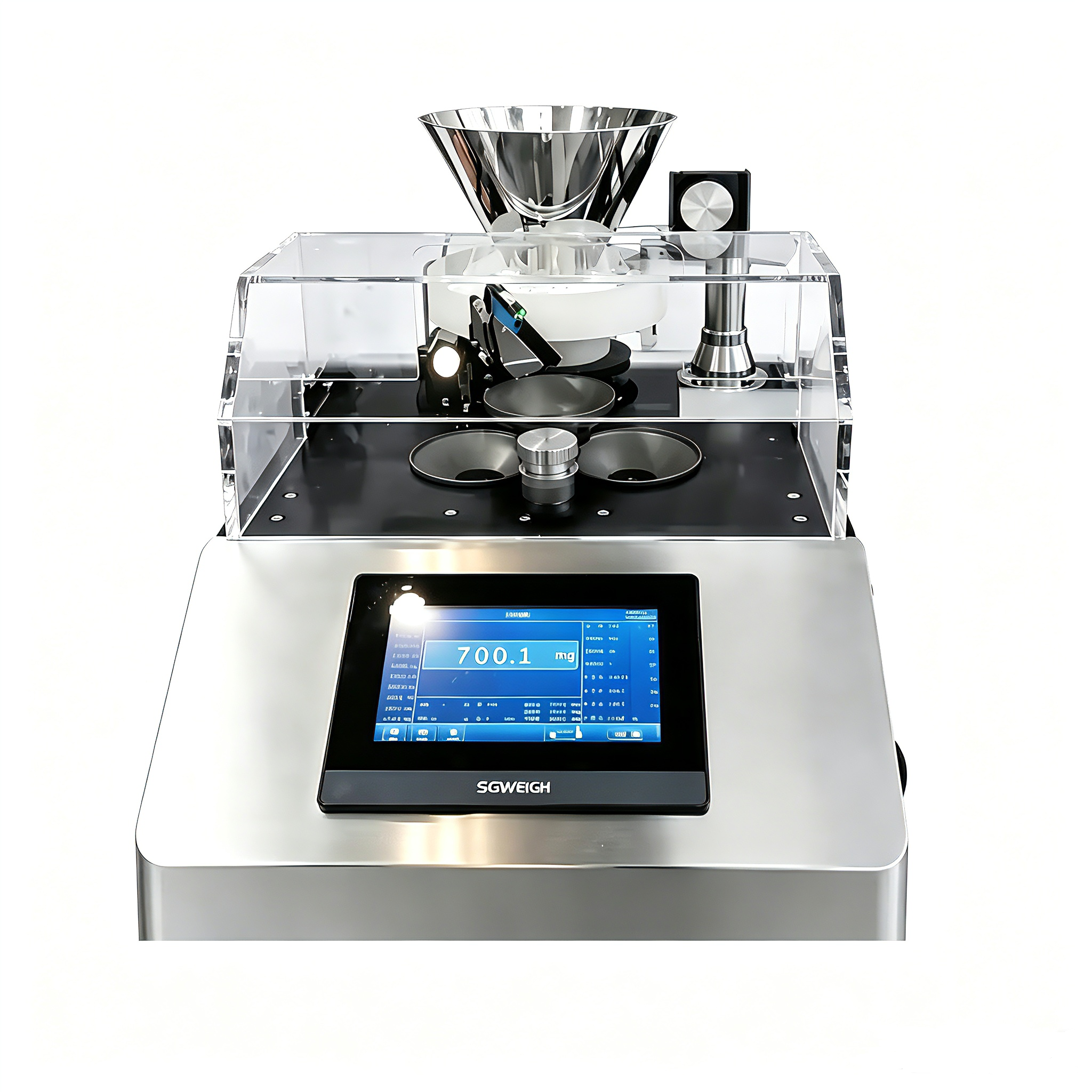

The Mini Tablet Checkweigher is a compact, high-precision tablet weight inspection system designed for pharmaceutical manufacturing, laboratory testing, R&D, formulation development, quality control, and pilot-scale production.
With a weighing capacity of up to 40 tablets per minute, this benchtop tablet checkweigher provides a practical solution for laboratories and small-batch production environments where accurate and repeatable tablet weight measurement is essential.
The Capsule Weight Inspection Machine automatically weighs individual tablets and compares the measured weight with preset upper and lower limits. Tablets outside the specified tolerance can be identified and separated, helping operators quickly detect underweight, overweight, and abnormal tablets.
◆ Technical Parameters
| Type | SG‑CJ1 |
| Product Specification | Applicable to all types of capsules and tablets |
| Display scale | 0.1mg |
| Weighing range | 5mg to 2000mg |
| Highest sorting accuracy | ±1mg (Depend on products) |
| highest sorting ability | 40 PCS/MIN |
| Shell material | SUS304/316 Stainless Steel |
| Power supply | AC‑220V 50HZ |
| Operation | Touchscreen, Chinese and English language support |
| Interfaces | RS232 and USB for convenient data transfer and computer connection |
◆ Key Advantages
1. Compact Benchtop Design
The compact structure is suitable for laboratories, R&D departments, QC rooms, pilot production areas, and space-limited workstations.
2. Up to 40 Tablets/Minute
Designed for small-batch and sampling applications, the system can inspect up to 40 tablets per minute, providing faster testing than conventional manual weighing.
3. High-Precision Tablet Weighing
A precision weighing sensor provides stable and repeatable measurement of individual tablets, supporting accurate tablet weight analysis.
4. Automatic Individual Tablet Inspection
Each tablet can be weighed individually and compared with preset weight limits, helping identify tablets outside the acceptable range.
5. Upper and Lower Weight Limits
Operators can set target weight, upper tolerance, and lower tolerance according to the testing requirements.
6. Tablet Weight Variation Analysis
The system can be used to evaluate individual tablet weights and identify weight variation within a sample or batch.
7. Non-Destructive Inspection
The weighing process does not damage the tablet, allowing inspected samples to remain available for further testing when appropriate.
8. Easy-to-Use Touchscreen
An intuitive control interface makes parameter setup, product changeover, operation, and inspection management easier for laboratory personnel.
9. Fast Product Changeover
The compact design and adjustable inspection parameters allow different tablet specifications to be tested efficiently.
◆ Application Scope
The Mini Tablet Checkweigher is suitable for:
- Pharmaceutical R&D laboratories
- Tablet formulation development
- Pharmaceutical quality control
- Tablet weight uniformity testing
- Pilot-scale tablet production
- In-process tablet inspection
- Tablet compression process evaluation
- Laboratory sample testing
- Academic pharmaceutical research
- Small-batch tablet manufacturing
