■ Product Brief

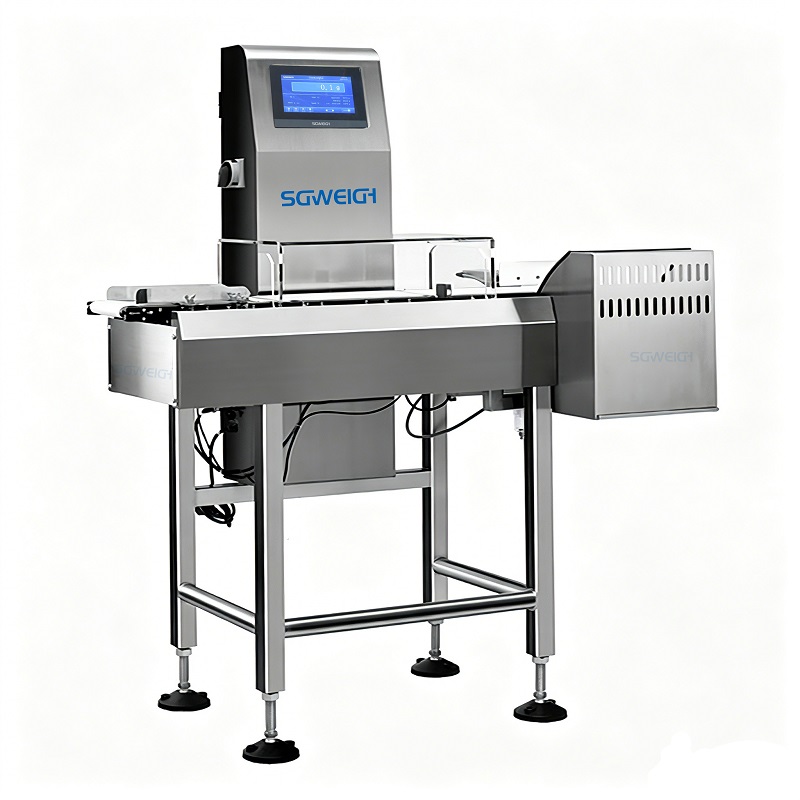

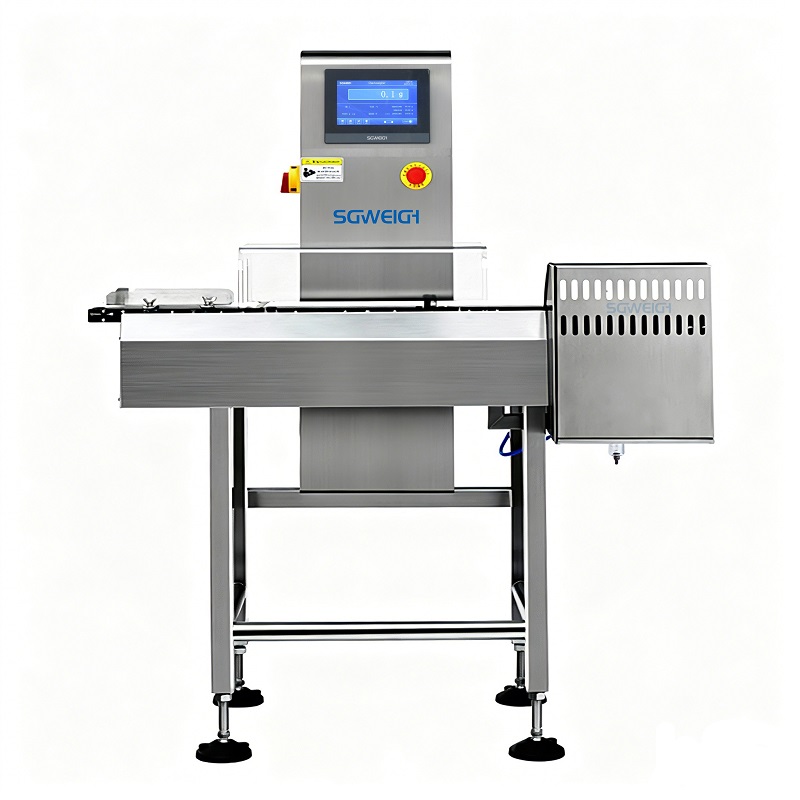

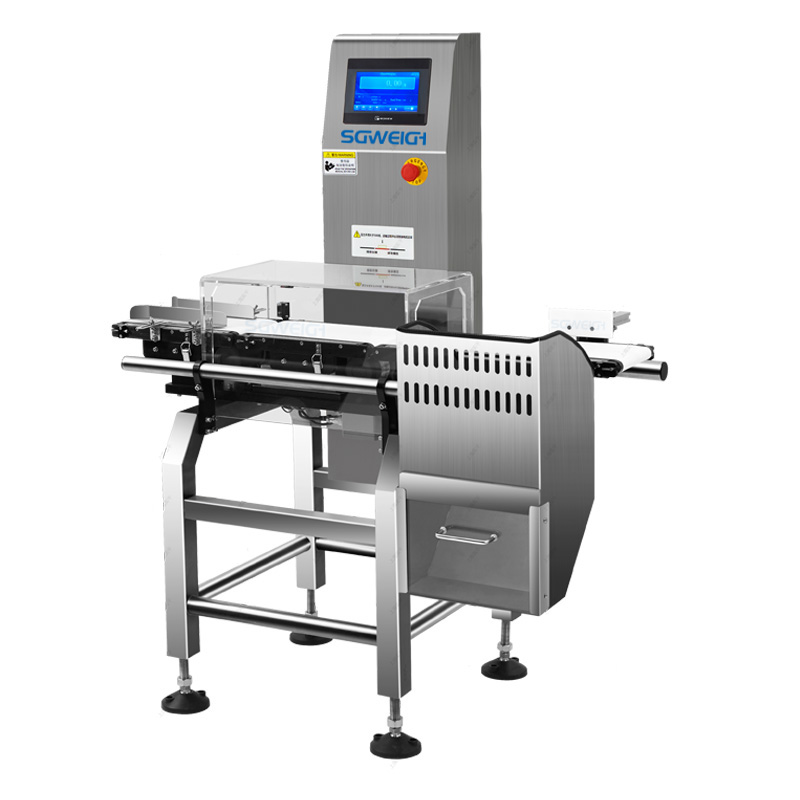

A Conveyor Industry Check Weighing System is an automated dynamic weighing solution installed directly on production lines. It accurately measures the weight of individual products while they move along a conveyor and automatically rejects underweight, overweight, or non-conforming items.
Using advanced load cell technology and intelligent weighing algorithms, the system delivers precise weight verification even at high throughput rates.
■ Technical Data
| Model | SG-150 |
| Weighing range | 5-500g |
| Minimum scale | 0.1g |
| Checking speed | Max 120pcs/Min |
| Belt speed | 0-65m/min |
| Box size limit | Length:200mm Width:150mm Height:3-200mm |
| Operation Way | Touch operation |
| Rejection method | Push Rejection |
| Machine material | Stainless steel（SUS304） |
| Power supply | 220V50/60HZ |
■ Product Highlights
1. High-Speed Dynamic Weighing
Capable of inspecting hundreds of products per minute while maintaining excellent weighing accuracy.
2. Automatic Reject System
Removes underweight, overweight, or defective products using pusher, air blast, drop-flap, or reject arm mechanisms.
3. Advanced Load Cell Technology
Provides stable and reliable weight measurements even in demanding industrial environments.
4. Real-Time Data Monitoring
Tracks production performance, weight trends, and rejection statistics for quality assurance and process optimization.
5. Easy Integration
Can be integrated with existing conveyors, packaging lines, metal detectors, labeling machines, and ERP systems.
6. User-Friendly Touchscreen Interface
Offers intuitive operation, product recipe storage, and quick parameter adjustments.
■ Industry Applications
■ Company Profile
■ Cooperative Clients
■ Exhibition
■ Package & Logistics
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
