■ Product Overview
An Automatic Learning Check Weigher is an advanced in-line dynamic weighing system equipped with self-learning algorithms that automatically optimize weighing parameters, product settings, and accuracy without manual intervention.
Unlike traditional checkweighers, it can analyze product characteristics in real time and automatically adjust filtering, speed, and tolerance settings to ensure stable and high-precision performance across different products.

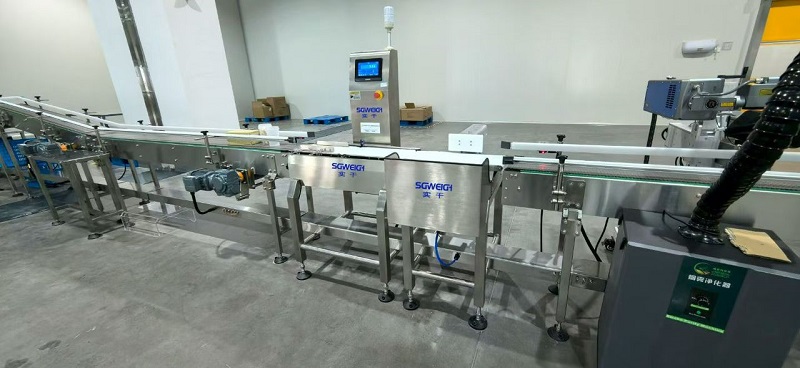

Check Weigher Integrated into Packaging Line is widely used in food, pharmaceutical, cosmetics, and packaging industries for intelligent quality control and production efficiency improvement.es parameters.
■ Tech Specifications
| Model | SG-150 |
| Weighing range | 5-500g |
| Minimum scale | 0.1g |
| Checking speed | Max 120pcs/Min |
| Belt speed | 0-65m/min |
| Box size limit | Length:200mm Width:150mm Height:3-200mm |
| Operation Way | Touch operation |
| Rejection method | Push Rejection |
| Belt height from the ground | 750±50mm（can be customized） |
| Machine material | Stainless steel（SUS304） |
| Power supply | 220V50/60HZ |
| Power | About300W |
| Windshield | 8mm Thick acrylic (to avoid airflow interference) |
| External air source | 0.2-0.6Mpa Air pressure port:Φ8mm |
■ Main Features
The system operates based on dynamic weighing and intelligent data processing:
1.Product enters weighing conveyor via infeed system.
2.High-precision load cell captures weight signal.
3.Signal is digitized and filtered (anti-vibration & noise suppression).
4.Self-learning algorithm automatically optimizes parameters.
5.System compares with target weight range.
■ Application
■ Company
■ Customers
■ Exhibitions
■ Packaging & Delivery
The equipment is fully protected with high-density foam, EPE pearl cotton, and moisture-proof film, with solid wooden frame reinforcement for overall stability. Shockproof, anti-collision and pressure-resistant, ensuring safe delivery during long-distance transportation.
